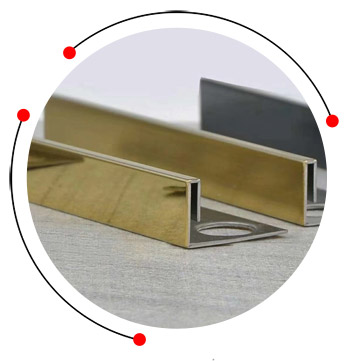

Stainless steel decorative profiles are a comprehensive range of precision-formed stainless steel sections including angles, channels, T-bars, flat bars, and specialty shapes manufactured from 304 or 316 grade stainless steel strip. Through cold roll-forming, press-braking, and surface finishing processes, these profiles combine structural function with high-quality decorative finishes for architectural and interior design applications.
Decorative stainless steel profiles are used across a broad spectrum of applications including cladding edge trims, glass panel framing, door and window surrounds, tile edge protection, column wrapping, partition systems, furniture hardware, display cabinets, and feature element construction in hotels, commercial offices, retail interiors, and high-end residential spaces.
Specification chart of stainless steel decorative profiles
Specification chart of stainless steel decorative profiles
| SPECIFICATION | DETAILS |
|---|---|
| Length | 8 Feet & 10 Feet |
| Grade | SS 304, SS 316 & SS 202 |
| Thickness | 0.6 ~ 2.0 mm |
| Finishes | Hairline | Mirror | Bead Blast |
| Color | Gold, Black, Rose Gold, Silver |
| Technology | Square edge technology |

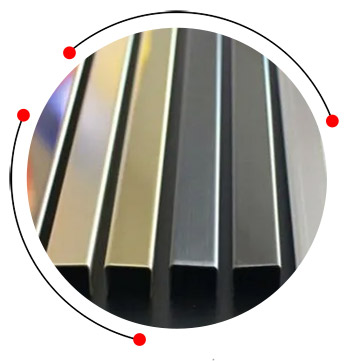

Decorative SS profile sections color option
- Gold
- Rose God
- Black
- Silver
- Champagne (Mirror & Brushed Both finished)
- Antique Hairline
- Antique Copper, etc.

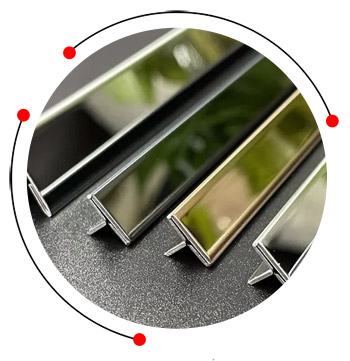

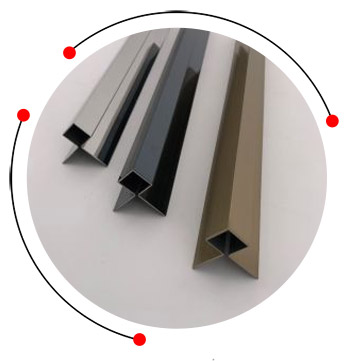

SS 304 decorative profiles equivalent grades
SS 304 decorative profiles equivalent grades
| Grade | EN / DIN | UNS | BS | JIS | ASTM |
|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | 304S15 / 304S31 | SUS 304 | A240 / A276 |
| SS 316 | 1.4401 | S31600 | 316S16 | SUS 316 | A240 / A276 |
| SS 201 | 1.4372 | S20100 | 201S17 | SUS 201 | A666 |
| SS 430 | 1.4016 | S43000 | 430S17 | SUS 430 | A240 |

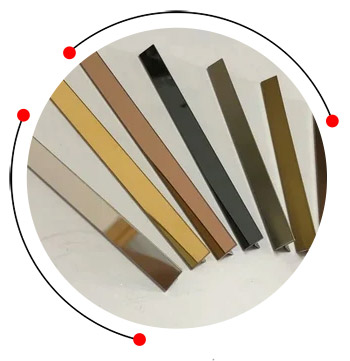

Decorative stainless steel profile sections physical properties
Decorative stainless steel profile sections physical properties
| Property | SS 304 | SS 201 | SS 316 | SS 430 |
|---|---|---|---|---|
| Thermal Conductivity (W/m·K) | 16.2 | 15 | 16.3 | 26 |
| Electrical Resistivity (µΩ·cm) | 72 | 70 | 74 | 60 |
| Density (g/cm³) | 7.93 | 7.90 | 7.98 | 7.75 |
| Melting Point (°C) | 1400–1450 | 1400–1450 | 1375–1400 | 1425–1510 |
| Modulus of Elasticity (GPa) | 193 | 200 | 193 | 200 |
| Coefficient of Expansion (µm/m·K) | 17.2 | 17.0 | 16.0 | 10.4 |

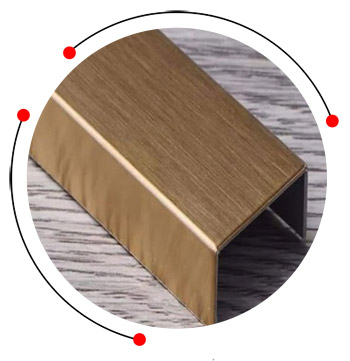

Decorative SS profiles finish
- Mirror (No. 8)
- Satin (No. 4)
- Matte
- Hairline
- PVD Coated (Rose Gold, Gold, Bronze, Black, Champagne)
Size chart of stainless steel decorative patti
Size chart of stainless steel decorative patti
| Profile Type | Width (mm) | Thickness (mm) | Height (mm) | Length (m) |
|---|---|---|---|---|
| U-Profile | 6 / 8 / 10 / 12 | 0.6 – 2.0 | 10 / 12 / 15 | 2.5 / 3 |
| T-Profile | 10 / 15 / 20 | 0.8 – 1.5 | 10 – 20 | 2.5 / 3 |
| L-Angle | 10 × 10 / 15 × 15 / 20 × 20 | 0.6 – 2.0 | As per width | 2.5 / 3 |
| Flat Bar | 10 – 50 | 0.8 – 3.0 | Flat | 2.5 / 3 |
| Square Profile | 10 × 10 / 20 × 20 / 30 × 30 | 0.8 – 2.5 | Equal height | 2.5 / 3 |
SS 316 decorative profiles features
- Long-lasting and durable
- Elegant visual finish
- Corrosion and rust-resistant
- Easy to clean and maintain
- Customizable in shape, size, and color
Chemical composition of stainless steel decorative profiles
Chemical composition of stainless steel decorative profiles
| Element | Percentage (%) |
|---|---|
| Manganese (Mn) | <2% |
| Silicon (Si) | <1% |
| Chromium (Cr) | 18–20% |
| Nickel (Ni) | 8–10.5% |
| Carbon (C) | <0.08% |
| Iron (Fe) | Balance |
| Phosphorus (P) | <0.045% |
| Sulfur (S) | <0.03% |
SS decorative profile mechanical properties
SS decorative profile mechanical properties
| Property | SS 316 | SS 304 |
|---|---|---|
| Tensile Strength | 515–750 MPa | 505–720 MPa |
| Yield Strength | 205–300 MPa | 205–290 MPa |
| Elongation | 40–50% | 40–50% |
| Hardness (HB) | 160–200 | 170–200 |
Decorative SS profile sections applications
Decorative SS profile sections applications
| Walls | Ceilings | Tiles |
| Flooring | Main door | Interior decoration |
| Bathroom | Living room | House |
| Hotel Lobby | Hotel Reception | First class lounge |
| KTV | Restaurants | Subways |
Frequently Asked Questions About SS Decorative Profiles
- U Profile
- T Profile
- L Profile (Angle)
- J Profile
- Flat Profile
- Square Profile
- Round Profile
- Surface Preparation
- Application of Adhesive or Fasteners
- Secure Attachment
- Additional Fixation (if needed)
- Finishing Touches
Place Your Order
We supply premium quality steel products for every industrial application. Call us or send an enquiry and our team will respond within 24 hours.
