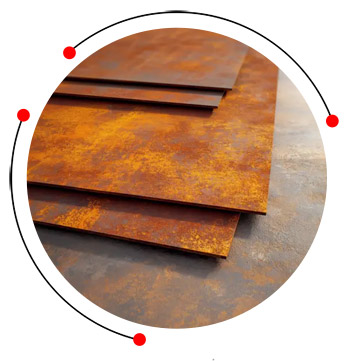

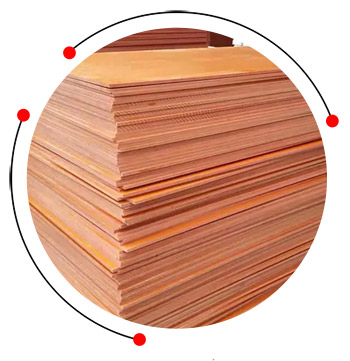

Corten steel sheet, commonly known as weathering steel, is a high-strength low-alloy steel sheet that develops a stable, tightly adherent rust-like surface patina when exposed to the atmosphere. Manufactured per ASTM A588 / A242 specifications, the patina layer acts as a natural barrier to further corrosion, eliminating the need for paint or protective coatings in most atmospheric environments.
Corten weathering steel sheets are used in architectural facade cladding, landscape structures, sculpture and public art installations, bridge construction, railway wagons, retaining walls, and outdoor furniture where a distinctive weathered rusted aesthetic combined with structural performance and low maintenance is desired.
Spark Steel supplies Corten steel sheets conforming to ASTM A588 Grade B / A242 with yield strength minimum 345 MPa and tensile strength minimum 485 MPa. Available in thicknesses from 1.5 mm to 50 mm and widths up to 2500 mm in standard lengths of 6 m or custom cut. Mill test reports with full chemical and mechanical properties certification supplied with each order.

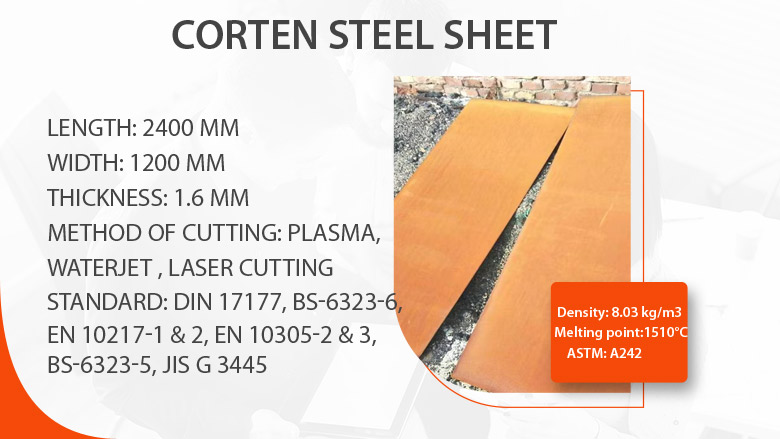

Corten steel plate specification
Corten steel plate specification
| SPECIFICATION | DETAILS |
|---|---|
| Thickness | 2 to 60 mm |
| Width | 900 to 4800 mm |
| Length | Up to 12000 mm |
| Density | 8.03 kg/m3 |
| Standard | DIN 17177, BS-6323-6, EN 10217-1 & 2, EN 10305-2 & 3, BS-6323-5, JIS G 3445 |
| Services | Rolling, Pickling, Heat Treatment, Cutting, Annealed, Forging, Bending, Polish, Minor Fabrication, Cladding |
| Processing | Testing, Forming, Cutting, Drilling, Grinding, Machining |
| Method of cutting | Plasma, Waterjet , Laser cutting |
| Features | Low maintenance, Weatherproof, Hard-wearing |
Corten steel sheet sizes
Corten steel sheet sizes
| Thickness | Width | Weight (lbs/ft) |
Length |
|---|---|---|---|
| 3/8" | 48.00" | 15.315 | 120.00" |
| 1/4" | 48.00" | 10.210 | 120.00" |
| 1/4" | 60.00" | 10.210 | 120.00" |
| 1/2" | 48.00" | 20.420 | 120.00" |
Corten steel sheet thickness
Corten steel sheet thickness
| 3/4" | 1-1/2" | 1" | 1-1/8" | 1-1/4" | 1-3/8" |
| 3/16" | 5/8" | 1/4" | 5/16" | 3/8" | 1/2" |
| 1-3/4" | >2"-5" | 2" |

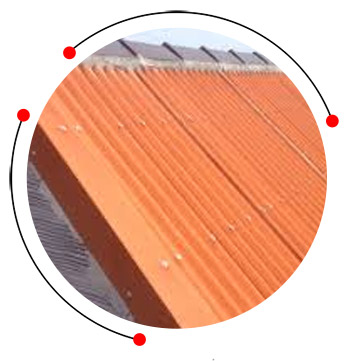

Weight chart of corten roofing sheets
Weight chart of corten roofing sheets
| Thickness | Weight (lbs/ft) |
|---|---|
| 1/4″ | 10.210 |
| 3/8″ | 15.315 |
| 1/4″ | 10.210 |
| 1/2″ | 20.420 |

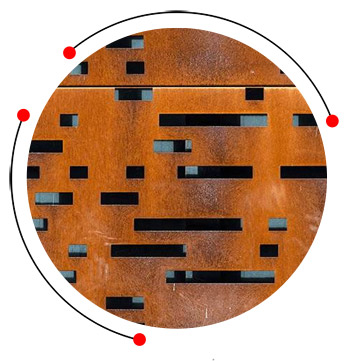

Corten perforated panels dimension
Corten perforated panels dimension
| FINISH | STOCK | THICKNESS MM | SHEET SIZE MM |
|---|---|---|---|
| Patina Rust (to order) | Rusted | 0.8 – 3.0 | 3000 x 1500, 2500 x 1250 |
| Patina Rust (to order) | Rusted | 1 | 2500 x 1250 |
| Bright | Natural | 0.8 – 3.0 | 3000 x 1500, 2500 x 1250 |
| Bright | Corrugated | 0.8 | 3000 x 1110 |
| Bright | Natural | 1 | 2500 x 1250 |
| Rusted (to order) | Corrugated | 0.8 | 3000 x 1110 |
Corten sheet heat treatment
Corten sheet heat treatment
| Heat Treatment | Temperature °C |
|---|---|
| Normalising | 860 – 940 [target 910] |
| Stress Relieving | 550 – 600 [target 580] |

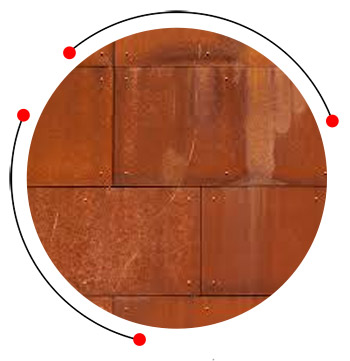

Corten steel panels processing
- Grinding
- Forming Drilling / Machining
- Cutting
- Testing
Corten sheet metal gauge chart
Corten sheet metal gauge chart
| Gauge | Corten sheet gauge W & L in inch |
|---|---|
| 12 | 0.105 * 60 * 120 |
| 14 | 0.075 * 36 * 120 |
| 14 | 0.075 * 48 * 120 |
| 16 | 0.060 * 36 * 120 |
| 16 | 0.060 * 48 * 96 |
| 16 | 0.060 * 48 * 120 |
| 16 | 0.060 * 60 * 120 |
| 18 | 0.048 * 36 * 120 |
| 18 | 0.048 * 48 * 120 |
| 20 | 0.036 * 36 * 120 |
| 20 | 0.036 * 48 * 120 |
| 7 | 0.1874 * 48 * 120 |
| 10 | 0.135 * 48 * 120 |
| 11 | 0.120 * 36 * 120 |
| 11 | 0.120 * 48 * 96 |
| 11 | 0.120 * 48 * 120 |
| 11 | 0.120 * 48 * 144 |
| 11 | 0.120 * 60 * 96 |
| 12 | 0.105 * 36 * 120 |
| 12 | 0.105 * 48 * 120 |
| 22 | 0.030 * 36 * 120 |
| 22 | 0.030 * 48 * 96 |
| 22 | 0.030 * 48 * 120 |
| 24 | 0.024 * 36 * 120 |
| 24 | 0.024 * 48 * 120 |
| 26 | 0.018 * 36 * 120 |
| 26 | 0.018 * 48 * 120 |
| 28 | 0.015 * 36 * 120 |

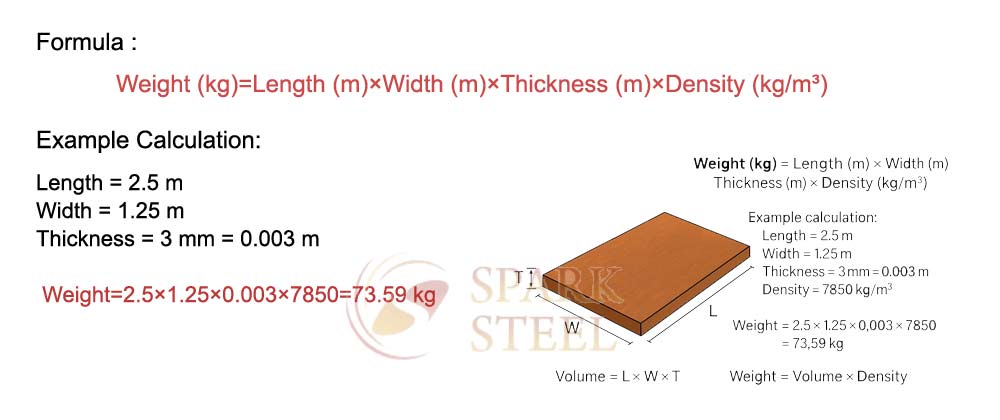

Corten steel sheet weight calculator
Application of corten steel perforated panels
- Tanks and containers
- Power station precipitators
- Windshields on chimneys
- Rail and road vehicles
- Exhaust systems
- Bridges

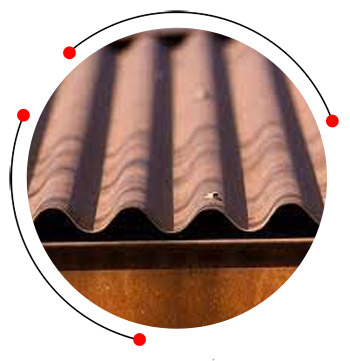

Corten corrugated sheet chemical composition
Corten corrugated sheet chemical composition
| ASTM 242 TYPE -1 | IRSM 41 -97 | A |
|
|---|---|---|---|
| Manganese | 1.00 | 0.25-0.45 | 0.20-50 |
| Nickel, max | – | 0.20-0.49 | 0.65 |
| Molybdenum, max | – | – | – |
| Vanadium | – | 0.050 | – |
| Copper | 0.20 min | 0.30-0.39 | 0.25-0.55 |
| Silicon | 0.25-0.40 | 0.28-0.72 | 0.25-0.75 |
| Phosphorus | 0.15 | 0.07-0.11 | 0.07-0.15 |
| Carbon, Max | 0.15 | 0.10 | 0.12 |
| Sulphur, max | 0.05 | 0.030 | 0.030 |
| Chromium | – | 0.30-0.50 | 0.50-1.25 |
| Aluminimum | – | 0.030 | – |
Corten corrugated metal panels mechanical properties
Corten corrugated metal panels mechanical properties
| Tensile Strength | Elongation | Min. Yield Point | |
|---|---|---|---|
| COR-TEN A | [470 – 630 MPa] | 20 % min | [355 MPa] |
| ASTM 242 TYPE -1 | [480 MPa] | 16% min | [345 MPa] |
| ASTM 588 GR. A | [485 MPa] | 21% min | [345 MPa] |
Corten flat sheets equivalent grades
Corten flat sheets equivalent grades
| Material # | EN 10155 | NFA 35-502 | SEW 087 | UNI | ASTM | BS 4360 |
|
|
|---|---|---|---|---|---|---|---|---|
| 1.8959 | S355J0W | E 36 WB 3 | - | Fe 510 C2K1 | A 588 – A 242 Gr. 1 | WR 50 B | SMA 50 AW | |
| 1.8963 | S355J2G1W | - | WTSt 52-3 | Fe 510 D2K1 | A 588 Gr. A | WR 50 C | to | |
| 1.8965 | S355J2G2W | - | - | - | - | - | SMA 50 CP | |
| 1.8961 | S235J2W | E 24 W 4 | WTSt 37-3 | Fe 360 DK 1 | - | - | - | |
| 1.8945 | S355J0WP | Fe 510 C1K1 | E 36 WA 3 | WR 50 A | - | - | - | |
| 1.8946 | S355J2WP | E 36 WA 4 | - | Fe 510 D1K1 | A 242 Type 1 | - | - | |
| 1.8966 | S355K2G1W | E 36 WB 4 | - | - | A 709 Gr. 50 W | - | - | |
| 1.8967 | S355K2G2W | - | - | - | - | - | - |
Corrugated corten steel panels advantages and disadvantages
Advantages
- Weathered look
- Low maintenance
- Corrosion-resistant
- Durable and strong
Disadvantages
- Needs dry climate
- Higher cost
- Stains nearby surfaces
- Special welding required
Corten steel vs. Mild steel
Corten steel vs. Mild steel
| Property | Corten Steel | Mild Steel |
|---|---|---|
| Corrosion Resistance | High | Low |
| Appearance | Rusty Patina | Plain |
| Maintenance | Low | High |
| Strength | Higher | Moderate |
| Uses | Outdoor, Architecture | General Fabrication |
| Cost | Higher | Lower |
Perforated corten steel sheets hsn code
Perforated corten steel sheets hsn code
| Corten Steel Sheet | 7225.99.00 |
