ASTM A53 grade B pipe

ASTM A53 Grade B Pipe manufacturer in India
ISO Certified Manufacturer

At Spark Steel, we supply premium-quality ASTM A53 Grade B Pipes designed for safe and efficient fluid and gas transportation, including water, oil, steam, and air. Available in a wide variety of sizes, thicknesses, and protective finishes, our carbon steel pipes are built to meet the rigorous demands of industries such as power generation, petrochemical processing, and oil drilling.

20+
Years of Experience
50+
Grades in Stock
1/8"–2–4"
Size Range
100%
Quality Tested

ASTM A53 Grade B pipe specifications

ASTM A53 Grade B pipe specifications

SPECIFICATIONDETAILS
Sizes1/2” NB to 36” NB
Thickness3-12mm
FormSquare, round, rectangle, Hydraulic
ToleranceCold rolled pipe: +/-0.05mm, Cold drawn pipe: +/-0.1mm
Coating3PE, Zinc, Black Painting, Galvanised Finish, FBE , Anti-Corrosion Oil
TypesSeamless, ERW, EFW, Welded

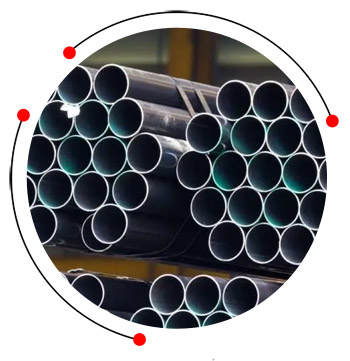

ASTM A53 Grade B pipe

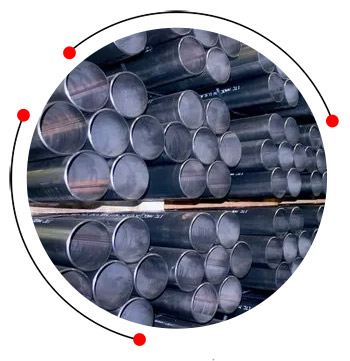

SA 53 Gr B seamless pipe

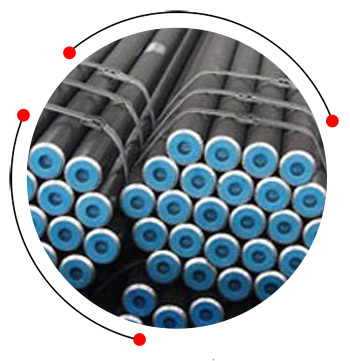

A53 Gr B erw pipe

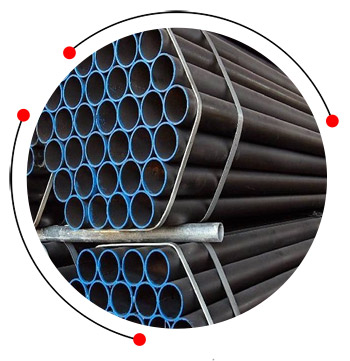

A53 galvanized steel pipe

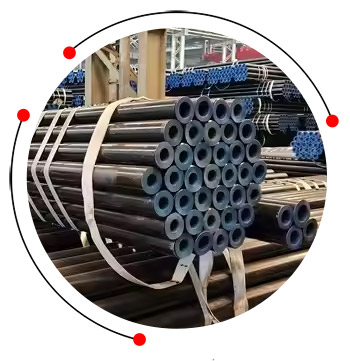

A53 welded pipe

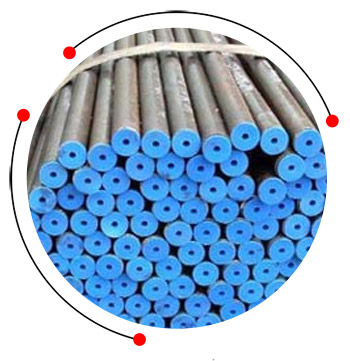

A53 Gr B type e material

ASTM A53 Gr B pipe dimensions

ASTM A53 Gr B pipe dimensions

NPS Designator Outside Dia DN Designator Inside Dia Nominal Weight (Mass) per unit Length Wall Thickness
(mm) (mm) Plain End (kg/m) Threads & Couplings (kg/m (mm)
1″ 33.4 25 24.3 3.24 3.25 4.55
1-1/4″ 42.2 32 32.5 4.47 4.49 4.85
1-1/2″ 48.3 40 38.1 5.41 5.39 5.08
2″ 60.3 50 49.3 7.48 7.55 5.54
2-1/2″ 73 65 59 11.41 11.52 7.01
3″ 88.9 80 73.7 15.27 15.39 7.62
1/8″ 10.3 6 5.5 0.47 0.46 2.41
1/4″ 13.7 8 7.7 0.8 0.8 3.02
3/8″ 17.1 10 10.7 1.1 1.1 3.2
1/2″ 21.3 15 13.9 1.62 1.62 3.73
3/4″ 26.7 20 18.8 2.2 2.21 3.91
3-1/2″ 101.6 90 85.4 18.63 18.82 8.08
4″ 114.3 100 97.2 22.32 22.6 8.56
5″ 141.3 125 122.3 30.94 31.42 9.52
6″ 168.3 150 146.3 42.56 43.05 10.97
8″ 219.1 200 193.7 64.64 65.41 12.7

ASTM A53 Grade B pipe weight chart

ASTM A53 Grade B pipe weight chart

Pipe size ID Standard to XXHY Sched OD WT Weight Section Modulus Gallon
1 1/4 1.380 STD 40 1.66 0.140 2.27 .2346 .0777
1.160 160 0.250 3.77 .3421 .0549
1 1/2 1.610 STD 40 1.90 0.145 2.72 .3262 .1058
1.338 160 0.281 4.86 .5079 .0730
2 2.157 10 2.375 0.109 2.64 .4205 .1898
1.939 XHY 80 0.218 5.03 .7309 .1534
1.813 0.281 6.29 .8666 .1344
1/2 0.622 STD 40 0.84 0.109 0.85 .0407 .0158
3/4 0.824 STD 40 1.05 0.113 1.13 .0705 .0277
0.612 160 0.219 1.95 .1006 .0153
1 1.049 STD 40 1.315 0.133 1.68 .1328 .0449
0.815 160 0.250 2.85 .1904 .0271
2 1/2 2.635 10 2.875 0.120 3.53 .6870 .2833
2.443 0.216 6.14 1.1169 .2435
2.323 XHY 80 0.276 7.67 1.3386 .2202
3 3.260 3.50 0.120 4.34 1.0411 .4336
3.156 0.172 6.12 1.4265 .4064
3.068 STD. 40 0.216 7.58 1.7241 .3840
2.938 0.281 9.67 2.1207 .3521
3 1/2 3.760 10 4.0 0.120 4.98 1.3776 .5768
3.500 0.250 10.02 2.6001 .4998
3.364 XHY 80 0.318 12.52 3.1400 .4617
4 4.260 10 4.5 0.120 5.62 1.7612 .7404
4.124 0.188 8.67 2.6296 .6942
4.062 0.219 10.02 3.0184 .6725
4.000 0.250 11.36 3.3611 .6528
3.876 0.312 13.97 4.0273 .6126
3.624 120 0.438 19.02 5.1790 .5361
5 5.187 5.563 0.188 10.80 4.1161 1.0979
5.047 STD. 40 0.258 14.63 5.4500 1.0391
4.939 0.312 17.51 6.4074 .99647
4.813 XHY 80 0.375 20.80 7.4300 .9449
6 6.407 5 6.625 0.109 7.59 3.5769 1.6748
6.313 0.156 10.79 5.0107 1.6260
6.219 0.203 13.94 6.3804 1.5780
6.125 0.250 17.04 7.6905 1.5306
6.001 0.312 21.06 9.3416 1.4688
5.875 0.375 25.05 10.893 1.4082
5.625 0.500 32.74 13.711 1.2909
5.375 0.625 40.09 16.1821 1.1787
4.897 XXHY 0.864 53.21 20.025 .9784
4.375 1.125 66.14 23.1237 .7809

A53 pipe price

A53 pipe price

Description Price in USD Price in Kilogram (INR)
Color Coated Astm A53 Grade B Pipe, Thickness: 4mm $ 0.99 ₹ 85
Carbon Steel A53 Gr.b Pipes, 2 inches $ 0.95 ₹ 81
ASTM A53 GR.B SEAMLESS PIPE, Size: 1/2 inch, Thickness: 9mm $ 0.75 ₹ 64

ASTM A53 type e Grade B pipe testing

  • PMI Testing
  • Pitting Resistance Test
  • Flattening Test
  • Chemical Analysis
  • Micro and MacroTest
  • Mechanical Testing
  • Flaring Test
  • IGC Test
  • Hardness Test

ASTM A500 Grade B vs ASTM A53 Grade B pipe

ASTM A500 Grade B vs ASTM A53 Grade B pipe

Property ASTM A500 Grade B ASTM A53 Grade B
Standard ASTM A500 ASTM A53
Manganese (Mn) % ≤ 1.35 ≤ 1.20
Phosphorus (P) % ≤ 0.035 ≤ 0.05
Application Structural (bridges, buildings, infrastructure) Fluid/gas transportation (water, oil, steam, gas)
Carbon (C) % ≤ 0.26 ≤ 0.30
Manufacturing Process Cold-formed, welded Seamless or welded
Sulfur (S) % ≤ 0.035 ≤ 0.045
Tensile Strength (min) 58,000 psi (400 MPa) 60,000 psi (415 MPa)
Yield Strength (min) 46,000 psi (317 MPa) 35,000 psi (240 MPa)

ASTM A53 Grade B vs ASTM A106 Grade B

ASTM A53 Grade B vs ASTM A106 Grade B

Property ASTM A53 Grade B ASTM A106 Grade B
Standard ASTM A53 ASTM A106
Carbon (C) % ≤ 0.30 ≤ 0.30
Phosphorus (P) % ≤ 0.05 ≤ 0.035
Application Water, steam, gas, and air transportation High-pressure and high-temperature applications (boilers, refineries, power plants)
Manufacturing Process Seamless or welded Seamless only
Manganese (Mn) % ≤ 1.20 0.29–1.06
Sulfur (S) % ≤ 0.045 ≤ 0.035
Tensile Strength (min) 60,000 psi (415 MPa) 60,000 psi (415 MPa)
Yield Strength (min) 35,000 psi (240 MPa) 35,000 psi (240 MPa)

ASTM A53 Grade B pipe pressure rating

ASTM A53 Grade B pipe pressure rating

Max. Allowable Pressure (psi)
NPS OD Schedule
(in) (in) 20 10 30 STD 40 XXS XS 60 80 100 120 140 160
2 2.0375 3177 3177 8995 4498 4498 7097
2 1/2 2.0875 3460 3460 9408 4704 4704 6391
3 3.05 3024 3024 8400 4200 4200 6132
3 1/2 4 2769 2769 3896 3896
4 4.05 2581 2581 7339 3670 3670 4769 5782
5 5.0563 2273 2273 6606 3303 3303 4404 5505
6 6.0625 2071 2071 6390 3195 3195 4157 5318
8 8.0625 1420 1574 1829 1829 4971 2841 2307 2841 3375 4085 4613 5147
10 10.075 1140 1399 1664 1664 4558 2279 2279 2708 3277 3847 4558 5128
12 12.075 961 1268 1441 1560 3843 1922 2160 2644 3244 3843 4324 5042
14 14 1092 875 1313 1313 1533 1750 2079 2625 3283 3829 4375 4921
1/4 0.054 7985 7985 10798 10798
3/8 0.0675 6606 6606 9147 9147
1/2 0.084 6358 6358 17150 8575 8575 10908
3/4 1.005 5273 5273 14373 7187 7187 10220
1 1.0315 4956 4956 13340 6670 6670 9316
1 1/4 1.066 4133 4133 11276 5638 5638 7380
1 1/2 1.09 3739 3739 10316 5158 5158 7247
16 16 956 766 1148 1148 1531 1531 2009 2585 3157 3733 4404 4882
18 18 849 681 1192 1021 1530 1361 2042 2553 3147 3743 4252 4848
20 20 919 613 1225 919 1455 1225 1989 2526 3138 3675 4288 4824
22 22 835 557 1114 835 1114 1949 2506 3063 3619 4176 4733
24 24 766 510 1147 766 1405 1021 1978 2489 3126 3700 4210 4786
30 30 817 510 1021 613 817
32 32 766 478 957 574 1054
34 34 721 450 901 540 992
36 36 681 425 851 510 1021
42 42 583 729 438 875

SA 53 Gr B chemical composition

SA 53 Gr B chemical composition

A53 Grade B
 Mn S C P Cu Ni Mo V Cr
1.02 0.0045 0.03 0.005 0.04 0.04 0.015 0.008 0.04

A53 Grade B pipe yield strength

A53 Grade B pipe yield strength

Grades Min. Tensile Strength Min. Yield Strength
A53b pipe 60000 psi / 415 Mpa 35000 psi / 240 Mpa

A53 Gr B type e carbon steel pipe shear modulus

A53 Gr B type e carbon steel pipe shear modulus

Shear modulus 75 - 80 GPa
Elastic modulus 200 - 215 GPa

ASTM A53 Gr B type s pipe tolerance

ASTM A53 Gr B type s pipe tolerance

Description O.D. Under Over
Weight ±10% ±10%
OD DN 6 to DN 40, NPS 1/8 to NPS 1-1/2 ±0.4 milimeter ±0.4 milimeter
NPS 2 and up, DN 50 and up ±1% ±1%
Wall Thickness ±12.5% –

ASTM A53 Grade B schedule 80 pipe application

  • Chemical Equipment
  • Pharmaceuticals
  • Pulp and Paper Industry
  • Petrochemicals
  • Heat Exchangers
  • Pharmaceutical Equipment
  • Gas Processing
  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Sea Water Equipment
  • Condensers
  • Specialty Chemicals

A53 Gr B type e seamless pipe schedule chart

A53 Gr B type e seamless pipe schedule chart

DN milimeter Inches Schedule 10 Schedule 10S Schedule 20 Schedule 40 Schedule 80 Schedule 120 Schedule 160 XS Sth XXS
150 168.3 6 3.4 7.11 10.97 14.27 18.26 10.97 7.11 21.95
250 273.1 10 4.19 6.35 9.27 15.09 21.44 28.58 12.7 9.27 25.4
350 355.5 14 6.35 4.78 7.92 11.13 19.05 27.79 35.71 12.7 9.53
50 60.3 2 2.77 3.91 5.54 8.74 5.54 3.91 11.07
80 88.9 3 3.05 5.49 7.62 11.13 7.52 5.49 15.24
100 114.3 4 3.05 6.02 8.58 11.13 13.49 8.56 6.02 17.12
450 457.2 18 6.35 4.78 7.92 14.27 23.83 34.93 45.24
550 558.8 22 6.35 5.54 9.53 28.58 41.28 53.98
600 609.6 24 6.35 6.35 9.53 17.48 30.96 46.02 59.54

A53 Grade B pipe equivalent

A53 Grade B pipe equivalent

DIN Number UNS JIS KS DIN Type EN
1629 /1626 K03005 STPG410 SPPS42 St45 / St42-2 1.0408/1.0040

ASTM A53 Grade B pipe wall thickness

ASTM A53 Grade B pipe wall thickness

ASTM A53 Grade B Pipes Types Wall thk. Out diameter Length
SA53 Gr B Welded Pipes (in Stock + As per demand Sizes) As per demand 1/2" NB - 24" NB Customized
A53 GR B SAW Pipes 16" NB - 100" NB
ASTM A53 Grade B ERW 1/2" NB - 24" NB
ASTM A53 Gr B Seamless Pipes SCH 10 | SCH 5 | SCH 80 | SCH 40 | SCH 160 1/2" NB - 60" NB

SA 53 Gr B pipe thermal conductivity

SA 53 Gr B pipe thermal conductivity

Property Value Temperature Comment
Max service temperature 500 °C Typical for Carbon Steel
Coefficient of thermal expansion 1.32E-5 1/K 23.0 °C Typical for Medium Carbon Steel
Melting point 1380 - 1514 °C
Specific heat capacity 470 - 520 J/(kg·K) 23.0 °C
Thermal conductivity 21 - 52 W/(m·K) 23.0 °C

A53 pipe standard

A53 pipe standard

UNS European Standards Japanese Industrial Standards Deutsches Institut für Normung Number KS Deutsches Institut für Normung Type
K03005 1.0408/1.0040 STPG410 1629 /1626 SPPS42 St45 / St42-2

Density of ASTM A53 seamless steel pipes

Density of ASTM A53 seamless steel pipes

Property Value Temperature
Density 7.8 - 7.9 g/cm³ 23.0 °C

ASTM A53 welded steel pipe manufacturing methods

ASTM A53 welded steel pipe manufacturing methods

  • Type S : Seamless
  • Type F : CW – Continuous Furnace Welded
  • Type E : ERW – Electric Resistance Welded

ASTM A53 Grade B hardness

ASTM A53 Grade B hardness

Hardness (HRB) Max 241
