Stainless steel decorative U profile is a precision-formed channel-shaped stainless steel strip with two parallel flanges and a connecting web, manufactured through cold rolling or precision forming from 304 or 316 grade stainless steel coil. The U-shaped cross-section provides structural rigidity while enabling use as an edge trim, frame, or liner for panels, glass, and surfaces.
Decorative stainless steel U profiles are used in tile edge trims, glass panel framing, door and window surrounds, partition capping strips, furniture edge protection, exhibition stand frames, and architectural finishing applications where a clean, professional edging solution with a premium stainless steel aesthetic is required.
Specification of stainless steel decorative U profile
Specification of stainless steel decorative U profile
| SPECIFICATION | DETAILS |
|---|---|
| Thickness | 0.3 MM to 3 MM |
| Grade | SS 202, SS 304 & SS 316 |
| Tolerence | -0.01mm |
| Sizes | 6×6 mm, 10×10 mm, 20×20 mm, 8×8 mm, 15×15 mm, 25×25 mm, custom |
| Edge | Slit Edge |
| Length | 1220mm, 2440mm or Customize |

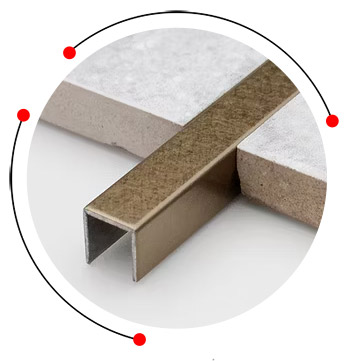

SS decorative U profile surface finish
- Brushed (No. 4)
- Etched or Patterned (Optional)
- Hairline (HL)
- PVD Coated Color
- Mirror (8K Polish)

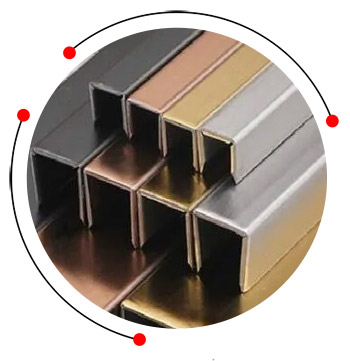

Sizes of 304 stainless steel decorative U profiles
Sizes of 304 stainless steel decorative U profiles
| Profile | Width (mm) | Length (mm) | Height (mm) | Thickness (mm) |
|---|---|---|---|---|
| U 10×10×1.0 | 10 | 2440 / 3048 | 10 | 1.0 |
| U 6×10×0.8 | 6 | 2440 / 3048 | 10 | 0.8 |
| U 20×20×1.2 | 20 | 2440 / 3048 | 20 | 1.2 |
| U 15×15×1.0 | 15 | 2440 / 3048 | 15 | 1.0 |
| U 25×25×1.2 | 25 | 2440 / 3048 | 25 | 1.2 |

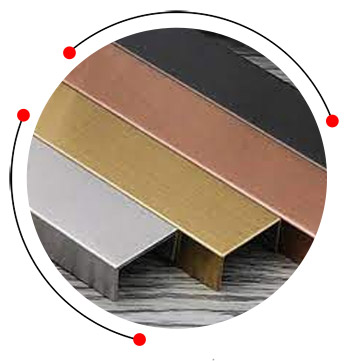

Stainless steel U profile applications
- Retail display frames
- Wall panel edge trims
- Glass, wood, acrylic partition channels
- Ceiling tile borders
- Lift interior panels
- Cabinet and furniture inlays

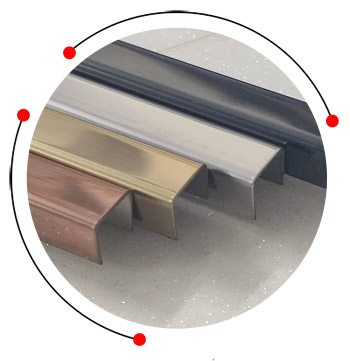

Decorative stainless steel U profile weight chart
Decorative stainless steel U profile weight chart
| Size (mm) | Weight per meter (kg) |
|---|---|
| 20 × 20 × 1.2 | 0.65 |
| 10 × 10 × 1.0 | 0.27 |
| 15 × 15 × 1.0 | 0.40 |
| 25 × 25 × 1.2 | 0.80 |

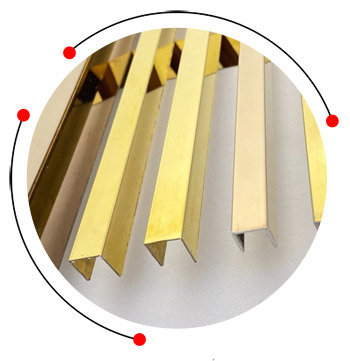

Color option of SS profiles U slot decorative tile trim
- Champagne
- Silver (Natural stainless steel)
- Gold
- Black (Gunmetal)
- Rose Gold
- Bronze
- Green, Blue, Copper (custom on request)
Chemical composition of stainless steel U shape profile
Chemical composition of stainless steel U shape profile
| Element | % by Weight |
|---|---|
| Manganese (Mn) | ≤ 2.0% |
| Chromium (Cr) | 18–20% |
| Nickel (Ni) | 8–10.5% |
| Carbon (C) | ≤ 0.08% |
| Silicon (Si) | ≤ 1.0% |
| Iron (Fe) | Balance |
SS U shape profile mechanical properties
SS U shape profile mechanical properties
| Property | Value |
|---|---|
| Elongation | ≥ 40% |
| Tensile Strength | ≥ 520 MPa |
| Yield Strength | ≥ 205 MPa |
| Hardness | ≤ 90 HRB |
Equivalent grades of stainless steel decorative U patti
Equivalent grades of stainless steel decorative U patti
| Country | Grade |
|---|---|
| Japan (JIS) | SUS 304 / 316 |
| USA (AISI) | 304 / 316 / 201 |
| Europe (EN) | 1.4301 / 1.4401 |
| China (GB) | 06Cr19Ni10 / 06Cr17Ni12Mo2 |
Frequently Asked Questions About SS Decorative U Profile
- Modern and clean look
- Protects panel edges
- Rust and corrosion resistant
- Strong and long-lasting
- Easy to install
- Measure
- Cut
- Clean the Surface
- Apply Adhesive
- Insert or Place
- Secure & Hold
- Clean Up
