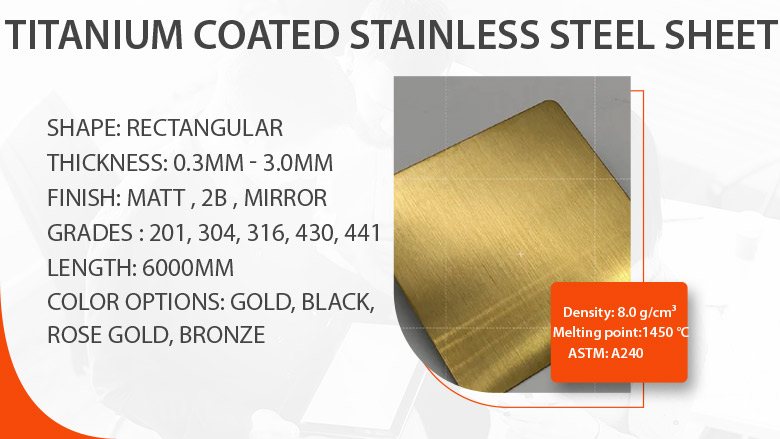

Titanium coated stainless steel sheet is a premium decorative surface product manufactured by applying a physical vapor deposition (PVD) titanium compound coating over a 304 or 316 grade stainless steel base substrate. The PVD process deposits a dense, hard, and aesthetically uniform titanium nitride (TiN) or titanium oxynitride layer that imparts rich metallic color tones including gold, rose gold, champagne, and bronze.
Titanium coated stainless steel sheets are used in high-end architectural cladding, elevator interiors, lobby feature walls, decorative facades, hotel lobbies, retail interiors, and kitchen backsplashes where durable, scratch-resistant, and corrosion-resistant decorative surfaces are required alongside a premium color aesthetic.
Spark Steel supplies titanium coated stainless steel sheets in standard sizes of 4×8 ft and 4×10 ft, thickness from 0.5 mm to 3 mm. Base material in AISI 304 (1.4301) or 316 (1.4401) grades. PVD coating hardness 1500–2300 HV with salt spray resistance over 500 hours. Available in mirror, hairline, brushed, and embossed surface finishes with titanium color overlay in gold, rose gold, champagne, black, and bronze.
Specification of titanium coated stainless steel sheet
Specification of titanium coated stainless steel sheet
| SPECIFICATION | DETAILS |
|---|---|
| Thickness | 0.3mm - 3.0mm |
| Grade | 304, 430, 316L, 316, 201 |
| Fabrication | Bending, Shearing, Grooving |
| Sizes | 1219*2438mm, 1000*2000mm, 1500*3000mm |
| Color | Gold, Black, Rose gold, Bronze |
| Shape | Rectangular |
Titanium stainless steel sheet application
- Hotels, malls, signage
- Kitchen panels, trims
- Elevators, walls, facades
SS titanium coated sheet sizes
SS titanium coated sheet sizes
| Metric Size (mm) | Thickness Range (mm) | Imperial Size (inch) |
|---|---|---|
| 1219 × 3048 | 0.8 – 2.0 | 48" × 120" |
| 1000 × 2000 | 0.3 – 3.0 | 39.4" × 78.7" |
| 1219 × 2438 | 0.5 – 3.0 | 48" × 96" |
| Custom Sizes | On Request | — |
Advantages of titanium finish stainless steel sheet
- Durable and easy to clean
- Premium look (gold, black)
- Scratch & corrosion resistant
Weight chart of decorative titanium coated SS sheet
Weight chart of decorative titanium coated SS sheet
| Thickness (mm) | Weight for mm sheet (kg) | Weight per m² (kg) |
|---|---|---|
| 1.0 | 23.76 | 8.0 |
| 1.2 | 28.51 | 9.6 |
| 1.5 | 35.64 | 12.0 |
| 0.5 | 11.88 | 4.0 |
| 0.8 | 19.01 | 6.4 |
| 2.0 | 47.52 | 16.0 |
| 3.0 | 71.28 | 24.0 |
Titanium colored stainless steel sheets finishes
Titanium colored stainless steel sheets finishes
| Mirror | Hairline | Brushed |
| Hammered | Antique | Vibration |
| Bead Blasted | Etched | Embossed |
Disadvantages of titanium gold color coated stainless steel sheet
- Can't bend after coating
- Higher cost
- Only surface-level strength
Titanium coated stainless steel sheet chemical composition
Titanium coated stainless steel sheet chemical composition
| Grade | Ni (%) | C (%) | Cr (%) |
|---|---|---|---|
| 430 | — | ≤ 0.12 | 16–18 |
| 201 | 3.5–5.5 | ≤ 0.15 | 16–18 |
| 202 | 4–6 | ≤ 0.15 | 17–19 |
| 409 | — | ≤ 0.08 | 10.5–11.75 |
| 304 | 8–10.5 | ≤ 0.08 | 18–20 |
| 304L | 8–12 | ≤ 0.03 | 18–20 |
| 316 | 10–14 | ≤ 0.08 | 16–18 |
| 316L | 10–14 | ≤ 0.03 | 16–18 |
| 441 | — | ≤ 0.03 | 17.5–18.5 |
| 444 | 1.5–2.5 | ≤ 0.025 | 17.5–19.5 |
Titanium coated SS sheet mechanical properties
Titanium coated SS sheet mechanical properties
| Grade | 0.2% Proof Stress M/mm2 Min | UTS M/mm2 Min | Hardness RB Max | % Elongation on 50 mm GL Min |
| 316 | 205 | 515 | 95 | 40 |
| 316L | 170 | 485 | 95 | 40 |
| 321 | 205 | 515 | 95 | 40 |
| 409 | 205 | 380 | 88 | 20 |
| 301 | 205 | 515 | 95 | 40 |
| 304 | 205 | 515 | 92 | 40 |
| 304L | 170 | 485 | 92 | 40 |
| 305 | 175 | 480 | 90 | 40 |
| 310S | 205 | 515 | 95 | 40 |
| 409M | 275 | 450 | 90 | 20 |
| 410 | 205 | 415 | 89 | 22 |
| 420 | - | 690 | 96 | 15 |
| 430 | 205 | 450 | 89 | 22 |
Titanium stainless steel sheet equivalent grades
Titanium stainless steel sheet equivalent grades
| Country | SS 304 | SS 201 | SS 316 |
|---|---|---|---|
| EU | EN 1.4301 | EN 1.4372 | EN 1.4401 |
| Japan | SUS 304 | SUS 201 | SUS 316 |
| USA | AISI 304 | AISI 201 | AISI 316 |
| China | 06Cr19Ni10 | 1Cr17Mn6Ni5N | 06Cr17Ni12Mo2 |
| India | X5CrNi18-10 | CrMnNi SS | X2CrNiMo17-12-2 |
