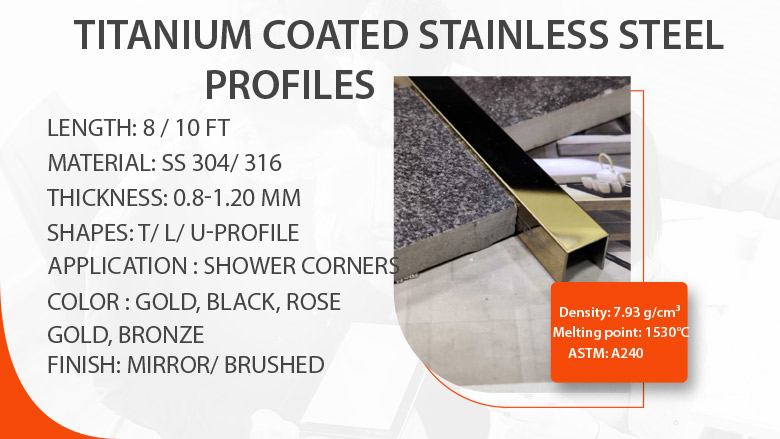

Titanium coated stainless steel profile is a decorative architectural trim section manufactured by applying a physical vapor deposition (PVD) titanium compound coating over precision-formed 304 or 316 grade stainless steel profiles. The PVD process deposits a dense, hard, and precisely controlled titanium nitride or titanium oxynitride layer at the molecular level, imparting rich decorative colors including gold, rose gold, champagne, black, and bronze.
Titanium coated stainless steel profiles are used in premium architectural interior trim applications including tile edge trims, glass panel framing, door and window surrounds, elevator cab trim, countertop edge profiles, and furniture hardware in five-star hotels, luxury retail boutiques, high-end residential properties, and upscale commercial interiors.

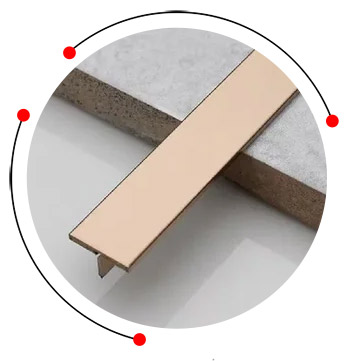

Specification of titanium coated stainless steel profiles
Specification of titanium coated stainless steel profiles
| SPECIFICATION | DETAILS |
|---|---|
| Thickness | 0.8-1.20 mm |
| Color | Gold, Black, Rose Gold, Silver |
| Finish | Matt, Mirror |
| Packaging type | Corrugated box, Wooden box |
| Material | stainless steel 201 / 304 / 316 / 430 |
| Profile types | U profiles, T profiles, L profiles |

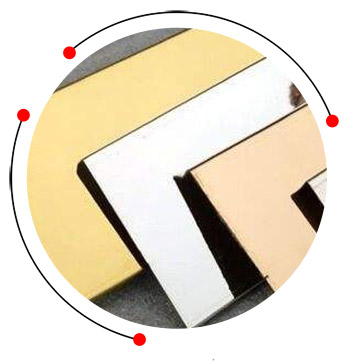

Size chart of stainless steel 304 titanium coated profile
Size chart of stainless steel 304 titanium coated profile
| Profile Type | Thickness (mm) | Height (mm) | Length (ft) |
|---|---|---|---|
| Flat Profile | 0.6 – 1.0 | 10 / 15 / 20 | 8 / 10 |
| U Profile | 0.6 – 1.0 | 10 / 15 / 25 | 8 / 10 |
| T Profile | 0.6 – 1.0 | 10 / 12 / 15 | 8 / 10 |
| L Angle | 0.6 – 1.0 | 10 x 10 to 30 x 30 | 8 / 10 |

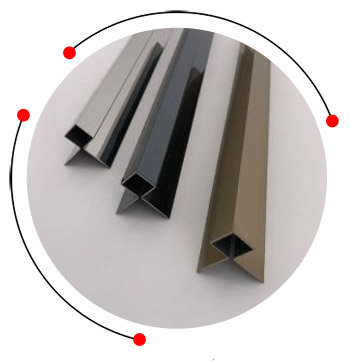

Stainless steel titanium coated profiles characteristics
- Long Service Life
- Non-Fading Color
- PVD Coated Surface
- Mirror / Hairline Finish
- Stainless Steel Base (304/316)

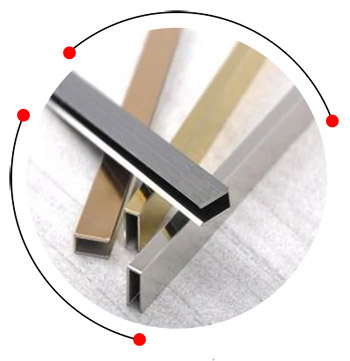

Chemical composition of stainless steel ti coated profile
Chemical composition of stainless steel ti coated profile
| Element | Grade 316 | Grade 304 |
|---|---|---|
| Carbon (C) | 0.08 max | 0.08 max |
| Chromium (Cr) | 16–18 | 18–20 |
| Nickel (Ni) | 10–14 | 8–10.5 |
| Molybdenum (Mo) | 2–3 | – |
| Iron (Fe) | Balance | Balance |

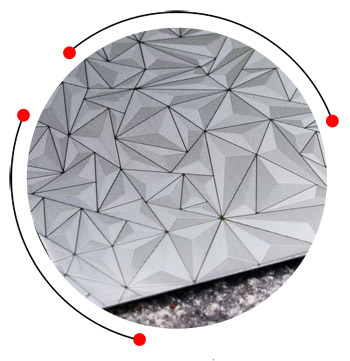

Mechanical properties of titanium coated embossed stainless steel panels
Mechanical properties of titanium coated embossed stainless steel panels
| Property | Grade 316 | Grade 304 |
|---|---|---|
| Yield Strength (MPa) | 205 | 215 |
| Tensile Strength (MPa) | 515 | 505 |
| Elongation (%) | 40 | 40 |
| Hardness (HRB) | 95 | 95 |
Features of titanium coating stainless steel profiles
- Scratch Resistant
- Low Maintenance
- Decorative Finish
- UV Stable
- Corrosion Resistant

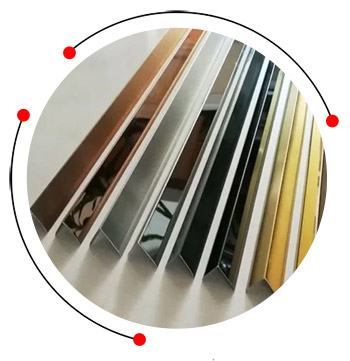

Equivalent grades of stainless steel ti coated profiles
Equivalent grades of stainless steel ti coated profiles
| Grade | DIN/EN | UNS | JIS |
|---|---|---|---|
| 304 | 1.4301 | S30400 | SUS 304 |
| 316 | 1.4401 | S31600 | SUS 316 |
304 titanium-coated stainless steel profile application
304 titanium-coated stainless steel profile application
316 stainless steel titanium finish profile color option
- Silver
- Champagne
- Rose Gold
- Black
- Gold
Frequently Asked Questions About Titanium Coated SS Profiles
