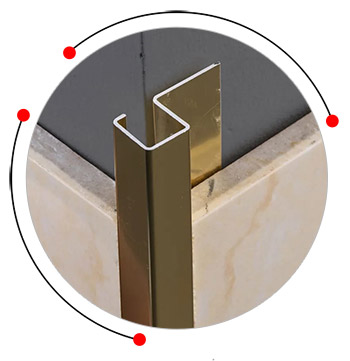

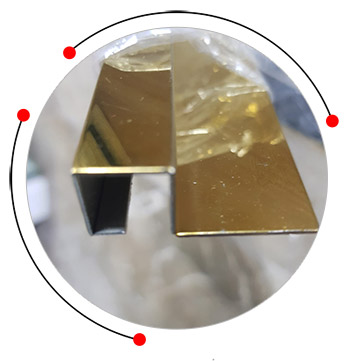

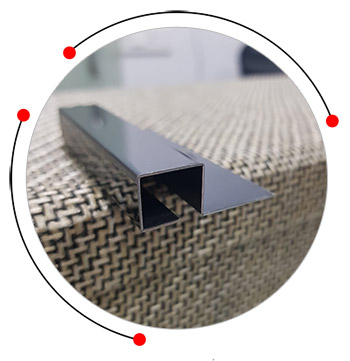

Stainless steel transition profiles are precision-formed stainless steel strips designed to create smooth, aesthetically clean transitions between floor surfaces of different materials, heights, or textures. Manufactured from 304 or 316 grade stainless steel through cold roll-forming, these profiles bridge the gap between tiles, wood, carpet, vinyl, and other flooring materials at doorways, thresholds, and room junctions.

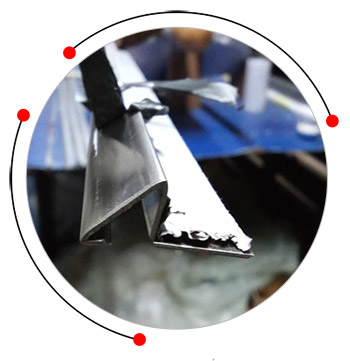

Stainless steel floor transition profiles are used in residential, commercial, and hospitality settings at doorway thresholds, expansion joints, carpet-to-tile transitions, level change accommodations, and flooring junction points in hotels, airports, shopping centers, hospitals, and office buildings where a clean, durable finish is essential.
Specification chart of stainless steel transition profiles
Specification chart of stainless steel transition profiles
| SPECIFICATION | DETAILS |
|---|---|
| Dimension | T6 mm To T100 mm ; 8 feet & 10 feet Long |
| Thickness | 0.8 mm to 1.2 mm Thick |
| Sizes | 6 mm to 100 mm |
| Length | 2440mm & 3048 mm / 8 -10 feet |
| Material | SS 304, 316, 304L, 316L |
| Surface finish | Mirror/ Hairline |

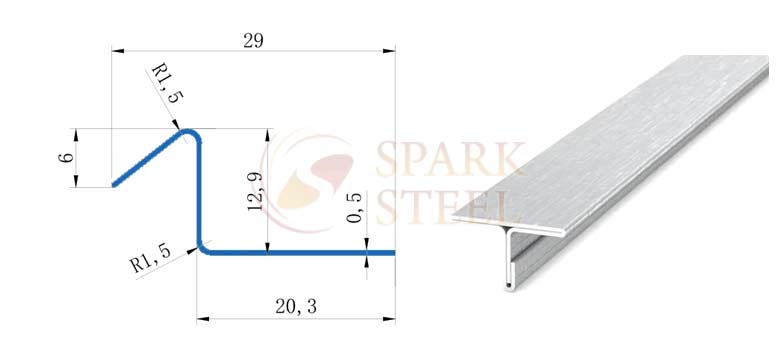

Parameters of stainless steel floor transition profile
Parameters of stainless steel floor transition profile
| H (mm) | 12.9 |
| thickness(mm) | 0.5 |
| length(mm) | 2440, 2500, 2700 |
Transition profiles style 1 (tr1) dimension
Transition profiles style 1 (tr1) dimension
| Height (H) | Length (L) | Material Thickness | Visible Width (W) | Common Materials |
|---|---|---|---|---|
| 6 mm | 2.5 m | 1.5–2 mm | 30–45 mm | Stainless Steel |
| 8 mm | 2.5 m | 1.5–2 mm | 30–45 mm | |
| 10 mm | 2.5 m | 1.5–2 mm | 30–45 mm | |
| 12.5 mm | 2.5 m | 1.5–2 mm | 30–45 mm |
Transition profiles style 2 (tr2) dimension
Transition profiles style 2 (tr2) dimension
| H1 (Tile Height) | W2 (Base Width Under Tile) | W1 (Top Visible Width) | H2 (Carpet Height) | Length (L) |
|---|---|---|---|---|
| 12.5 mm | 30–35 mm | 35–40 mm | 6–8 mm | 2.5 m |
| 8 mm | 25–30 mm | 30–35 mm | 4–5 mm | 2.5 m |
| 10 mm | 25–30 mm | 30–35 mm | 5–6 mm | 2.5 m |
| 15 mm | 30–35 mm | 35–40 mm | 8–10 mm | 2.5 m |
Transition profiles style 3 (tr3) dimension
Transition profiles style 3 (tr3) dimension
| H (Tile Height) | W2 (Base Width Under Tile) | W1 (Ramp Top Width) | Length (L) |
|---|---|---|---|
| 12.5 mm | 40–45 mm | 55–60 mm | 2.5 m |
| 8 mm | 30–35 mm | 45–50 mm | 2.5 m |
| 10 mm | 35–40 mm | 50–55 mm | 2.5 m |
| 15 mm | 45–50 mm | 60–65 mm | 2.5 m |
Applications of SS floor transition profile
- Industrial heavy-duty floor protection
- Wheelchair and ramp transitions
- Edge protection for tiles
- Decorative finishing trims
- Expansion joint covers
- Height adjustment between surfaces
Difference between tr1, tr2 and tr3 transition profiles
Difference between tr1, tr2 and tr3 transition profiles
| Feature | TR1 – Style 1 | TR2 – Style 2 | TR3 – Style 3 |
|---|---|---|---|
| Purpose | Transition between tile and various floors | Transition between tile and carpet | Transition from tile to lower flooring |
| Best for | Tile to wood, vinyl, or similar-height floors | Tile to soft flooring like carpet | Tile to concrete, vinyl, or low surfaces |
| Edge Protection | Moderate | Strong (covers carpet edge) | Smooth ramped transition (trip-safe) |
| Slope/Incline | None | Slight | Yes – sloped to lower surface |
| Aesthetic Look | Clean and minimal | Curved and more protective | Ramped, safety-oriented |

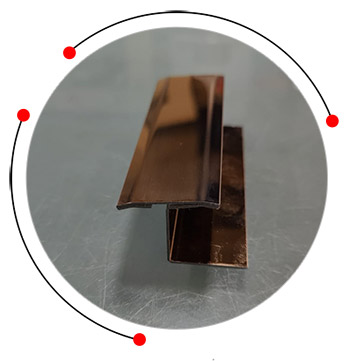

Benefits of SS tile transition profile
- UV and weather resistant
- Fire and heat resistant
- Durable and long-lasting
- Modern, sleek appearance
- Hygienic and easy to clean
- Excellent corrosion resistance
- Minimal maintenance needed

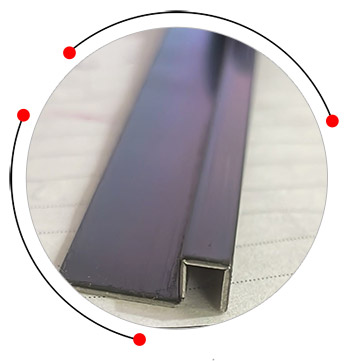

SS floor transition strip weight chart
SS floor transition strip weight chart
| Profile Type | Height (H) | Approximate Weight (kg/m) |
|---|---|---|
| TR2 | 8 mm | 0.85 – 1.05 kg/m |
| TR2 | 12.5 mm | 0.95 – 1.20 kg/m |
| TR1 | 8 mm | 0.80 – 1.00 kg/m |
| TR1 | 10 mm | 0.90 – 1.10 kg/m |
| TR3 | 10 mm | 1.00 – 1.25 kg/m |
| TR3 | 15 mm | 1.10 – 1.40 kg/m |
Stainless steel transition profiles chemical composition
Stainless steel transition profiles chemical composition
| Element | SS 304 | SS 304L | SS 202 | SS 316 | SS 316L |
|---|---|---|---|---|---|
| Manganese (Mn) | 2.0 max | 2.0 max | 7.5–10.0 | 2.0 max | 2.0 max |
| Carbon (C) | 0.08 max | 0.03 max | 0.08 max | 0.08 max | 0.03 max |
| Chromium (Cr) | 18.0–20.0 | 18.0–20.0 | 17.0–19.0 | 16.0–18.0 | 16.0–18.0 |
| Nickel (Ni) | 8.0–10.5 | 8.0–12.0 | 4.0–6.0 | 10.0–14.0 | 10.0–14.0 |
| Silicon (Si) | 1.0 max | 1.0 max | 1.0 max | 1.0 max | 1.0 max |
| Molbydenum (Mo) | – | – | – | 2.0–3.0 | 2.0–3.0 |
SS transition profile mechanical properties
SS transition profile mechanical properties
| Property | SS 304L | SS 316 | SS 202 | SS 304 | SS 316L |
|---|---|---|---|---|---|
| Elongation (%) | 40 | 40 | 40 | 40 | 40 |
| Yield Strength (MPa) | 170 | 205 | 275 | 215 | 170 |
| Tensile Strength (MPa) | 485 | 515 | 515 | 505 | 485 |
| Hardness (HRB) | 90 max | 95 max | 95 max | 95 max | 90 max |
Equivalent grades of stainless steel floor transition profile
Equivalent grades of stainless steel floor transition profile
| Grade | UNS | JIS | EN/DIN | BS |
|---|---|---|---|---|
| SS 304L | S30403 | SUS 304L | 1.4306 / 1.4307 | 304S11 |
| SS 202 | S20200 | SUS 202 | 1.4373 | – |
| SS 304 | S30400 | SUS 304 | 1.4301 | 304S31 |
| SS 316 | S31600 | SUS 316 | 1.4401 | 316S31 |
| SS 316L | S31603 | SUS 316L | 1.4404 / 1.4435 | 316S11 |
Frequently Asked Questions About SS Transition Profiles
- Width: 25mm to 100mm
- Height: 10mm to 50mm
- Custom sizes available based on the application.
- Brushed
- Matte
- Satin
- Mirror-polished
