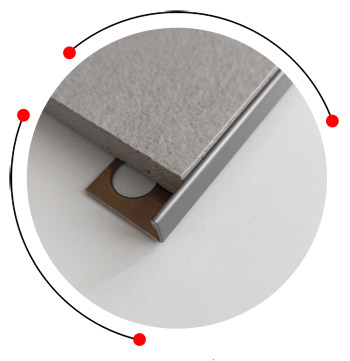

Stainless steel tile edge trim is a precision-formed L-shaped or T-shaped stainless steel profile designed to terminate, protect, and finish exposed tile edges at wall terminations, floor perimeters, countertop edges, and transition joints. Manufactured from 304 or 316 grade stainless steel through cold roll-forming, these trims provide a durable, hygienic, and aesthetically consistent edge solution that prevents tile chipping and grout cracking.
Stainless steel tile edge trims are used in bathroom and kitchen tiling installations, swimming pool copings, shower enclosures, stair nosings, balcony edges, countertop perimeters, and commercial flooring applications where a clean, finished edge with a corrosion-resistant metallic detail is required.

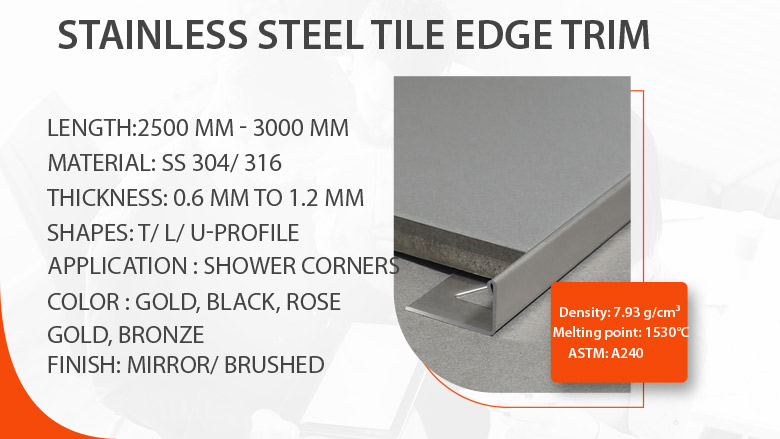

Specification of stainless steel tile edge trim
Specification of stainless steel tile edge trim
| SPECIFICATION | DETAILS |
|---|---|
| Grade | SS 202, SS 304, SS 316 |
| Application | Tiles, Construction |
| Length | 440 mm, 2500 mm, 2700 mm, 3000 mm |
| Thickness | 0.6 mm to 1.2 mm |
| Surface Finish | Matte, Mirror and Brushed |
| Color | Silver, Gold , Black , Copper and Bronze |

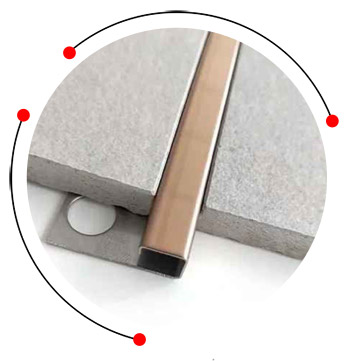

Stainless steel tile edging strip finishes
- Mirror Polish
- Brushed (Hairline)
- PVD Coated (Gold, Rose Gold, Black, Bronze)
- Matte
SS tile trim size chart
SS tile trim size chart
| Type | Height (mm) | Length (ft) | Thickness (mm) | Edge Shape |
|---|---|---|---|---|

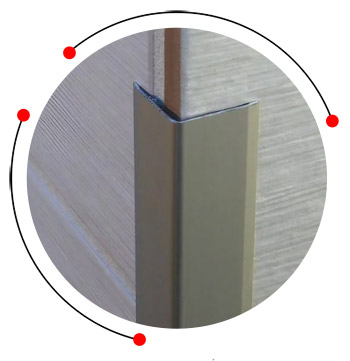

| L Angle | 10x10 to 30x30 | 8 / 10 | 0.6–1.5 | Right-Angle |
| Flat | 6, 8, 10, 12 | 8 / 10 | 0.6–1.2 | Straight / Bevel |
| Quadrant (Round) | 8, 10, 12 | 8 / 10 | 0.6–1.0 | Rounded |

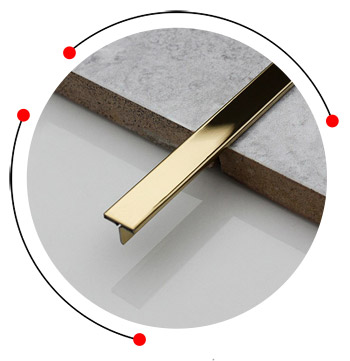

| T Profile | 10, 12, 15 | 8 / 10 | 0.6–1.2 | T-Shaped |
| U Channel | 10, 15, 20 | 8 / 10 | 0.6–1.2 | U-Shaped |

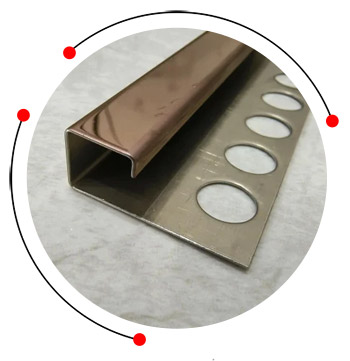

Application of brushed stainless steel tile edge trim
- Kitchen backsplash transitions

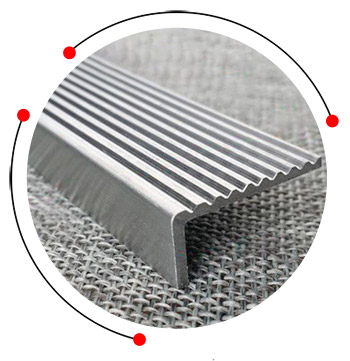

- Step edges in stairs
- Commercial wall-to-floor edges
- Tile edge protection
- Bathroom and shower corners
Chemical composition of SS edge trim
Chemical composition of SS edge trim
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | 8–10.5 |
| Manganese (Mn) | 2 max |
| Carbon (C) | 0.08 max |
| Chromium (Cr) | 18–20 |
| Silicon (Si) | 1 max |
| Iron (Fe) | Balance |
Stainless steel square edge tile trim mechanical properties
Stainless steel square edge tile trim mechanical properties
| Property | Value |
|---|---|
| Elongation | 40% |
| Yield Strength | 215 MPa |
| Tensile Strength | 505 MPa |
| Hardness | HRB 90–95 |
Stainless steel brushed straight edge tile trim advantages
- Scratch and UV resistant
- Hygienic and easy to clean
- Ideal for wet or industrial environments
- Modern aesthetic finish
- Corrosion and rust resistant
Equivalent grades of stainless steel straight edge tile trim
Equivalent grades of stainless steel straight edge tile trim
| Grade | UNS | JIS | EN/DIN |
|---|---|---|---|
| 304 | S30400 | SUS 304 | 1.4301 |
| 316 | S31600 | SUS 316 | 1.4401 |
Stainless steel round edge tile trim installation method
- Mechanical fixing with screws
- Adhesive-backed installation
- Tile glue integration during tile setting
Frequently Asked Questions About SS Tile Edge Trim
- 304: Best for indoor use
- 304L / 316L: Low carbon, better for welding.
- 316: Ideal for coastal or wet areas, high corrosion resistance.
- 202: Economical, suitable for dry interiors.
