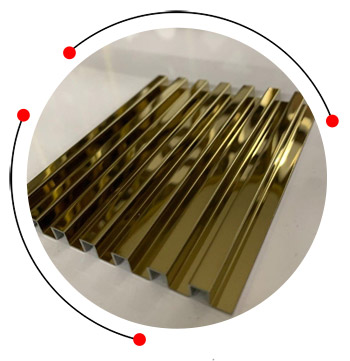

Stainless steel decorative louvers are precision-fabricated ventilation and screening elements consisting of angled slats or blades held within a stainless steel frame, manufactured from 304 or 316 grade stainless steel. The louver geometry allows controlled airflow and light transmission while blocking direct visual access, precipitation, and large particulates, combining functional ventilation with a refined architectural aesthetic.
Decorative stainless steel louvers are used in HVAC intake and exhaust grilles, building facade ventilation panels, machine enclosure screens, staircase balustrades, decorative partitions, outdoor privacy screens, and architectural feature elements in commercial buildings, hotels, airports, and industrial facilities.
Specification chart of stainless steel decorative louvers
Specification chart of stainless steel decorative louvers
| SPECIFICATION | DETAILS |
|---|---|
| Sizes | 6mm to 100mm |
| Grade | SS-304 |
| Thickness | 0.8mm to 1.2mm |
| Application | Walls, Ceiling, Main door, Interior Decoration, Pillars, Bathroom |
| Color | Gold,Black, Silver, Rose Gold, Champagne, Antique Hairline |
| Finish | Polished, Matte, Brushed, Embossed Finish |

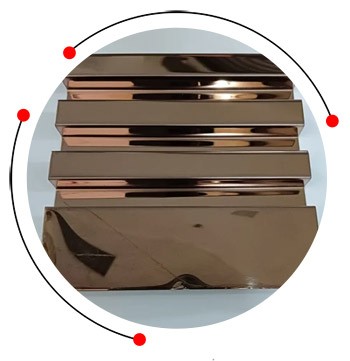

Color option of stainless steel decorative louvers profile
- Silver
- Antique Hairline
- Rose God
- Antique Copper, etc.
- Champagne (Mirror & Brushed Both finished)
- Gold
- Black

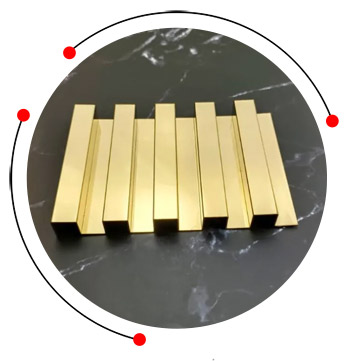

SS 304 decorative louvers sizes
SS 304 decorative louvers sizes
| Size | Width | Height | Thickness |
|---|---|---|---|
| Standard Louver | 100mm | 200mm | 1.2mm |
| Medium Louver | 150mm | 300mm | 1.5mm |
| Large Louver | 200mm | 400mm | 2.0mm |
| Custom Louver | Custom Width | Custom Height | Custom Thickness |

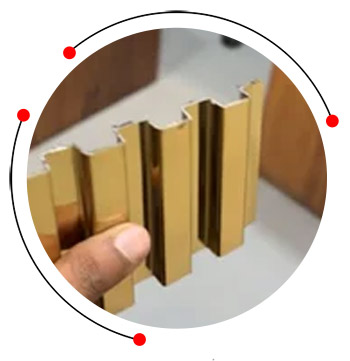

Stainless steel louvered panel finish
Stainless steel louvered panel finish
| Polished Finish | Brushed Finish | Matte Finish |
| PVD Coating | Bead Blasted Finish | Etched Finish |
| Electroplated Finish | Embossed Finish | Brushed Stainless Steel |

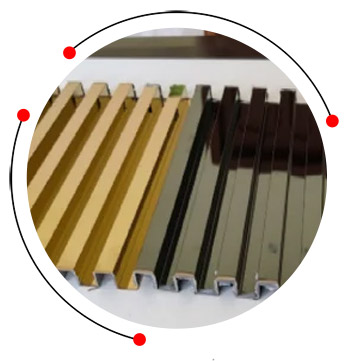

Features of SS 316 decorative louvers
- Easy Installation
- Customizable Sizes
- Modern Aesthetic
- Durability
- Corrosion Resistance
- Various Finishes (Brushed, Polished, PVD Coated)
- Low Maintenance
Chemical composition of stainless steel louver patti
Chemical composition of stainless steel louver patti
| Element | SS 304 | SS 316 | SS 430 |
|---|---|---|---|
| Chromium (Cr) | 18-20% | 16-18% | 16-18% |
| Nickel (Ni) | 8-10.5% | 10-14% | 0% |
| Molybdenum (Mo) | 0% | 2-3% | 0% |
| Carbon (C) | <1% | <0.08% | <0.12% |
| Iron (Fe) | Balance | Balance | Balance |
| Manganese (Mn) | 2.0% max | 2.0% max | 1.0% max |
| Silicon (Si) | 0.75% max | 0.75% max | 1.0% max |
| Phosphorus (P) | 0.045% max | 0.045% max | 0.04% max |
| Sulfur (S) | 0.03% max | 0.03% max | 0.03% max |
SS 304 louvers profile mechanical properties
SS 304 louvers profile mechanical properties
| Property | SS 304 | SS 316 | SS 430 |
|---|---|---|---|
| Tensile Strength (MPa) | 505-720 MPa | 515-720 MPa | 450-600 MPa |
| Yield Strength (MPa) | 205-290 MPa | 205-290 MPa | 275-450 MPa |
| Hardness (HB) | 170-200 HB | 160-200 HB | 200-250 HB |
Stainless steel louvers profile applications
- Building Facades
- Window Covers
- Ventilation Systems
- Architectural Elements
- Decorative Wall Panels
- Privacy Screens
SS 316 louvers profile equivalent grades
SS 316 louvers profile equivalent grades
| SS Grade | UNS | EN | BS | ASTM |
|---|---|---|---|---|
| SS 304 | UNS S30400 | EN 1.4301 | BS 1449 304S15 | ASTM A240, A276, A312 |
| SS 316 | UNS S31600 | EN 1.4401 | BS 1449 316S31 | ASTM A240, A276, A312 |
| SS 430 | UNS S43000 | EN 1.4016 | BS 1449 430S17 | ASTM A240, A276 |
Frequently Asked Questions About SS Decorative Louvers
| Feature | Mirror Finish | Matt Finish |
|---|---|---|
| Appearance | Shiny, reflective | Subtle, non-reflective |
| Surface Texture | Smooth and glossy | Textured, satin look |
| Maintenance | Requires frequent cleaning | Low-maintenance |
| Visual Effect | High-end, luxurious | Understated, elegant |
