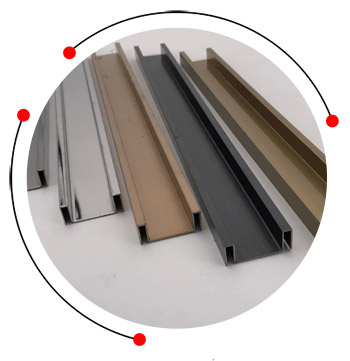

Stainless steel decorative custom profile is a bespoke precision-roll-formed or press-braked stainless steel section manufactured to client-specific cross-sectional shapes and dimensions. Using 304 or 316 grade stainless steel strip as the base material, custom profiles are engineered from architectural or industrial drawings to create unique functional and decorative trim solutions not available in standard catalog sections.
Custom decorative stainless steel profiles serve diverse applications in architectural feature walls, bespoke furniture hardware, curtain wall framing, specialized edge trims, branded retail fixtures, and OEM industrial components where off-the-shelf profiles cannot meet specific dimensional, functional, or aesthetic requirements.

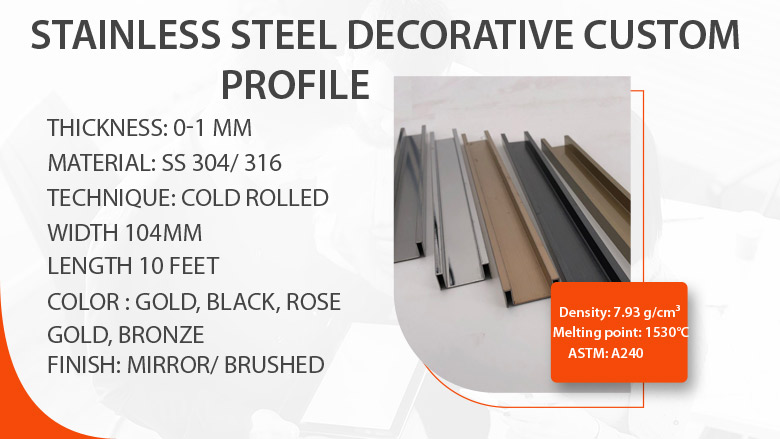

Specification chart of stainless steel decorative custom profile
Specification chart of stainless steel decorative custom profile
| SPECIFICATION | DETAILS |
|---|---|
| Thickness | 0-1 mm |
| Material | Stainless Steel |
| Size | Width 104mm x Length 10 Feet. |
| Shape | Rectangular |
| Color & Finish | Gold Mirror, Rose gold Mirror, Gold Hairline, Rose gold Hairline |
| Technique | Cold Rolled |

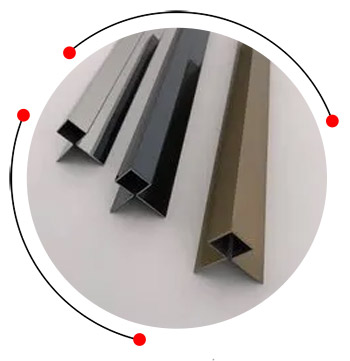

Stainless steel custom profile trim sizes
Stainless steel custom profile trim sizes
| Profile Type | Height (mm) | Width (mm) | Length (mm) |
|---|---|---|---|
| Omega Profile | 20–80 | 25–100 | 6000–12000 |
| U-Profile | 40–100 | 30–120 | 6000–12000 |
| L-Profile | 20–100 | 20–150 | 6000–12000 |

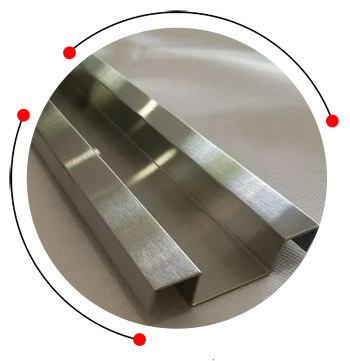

SS 304 custom profile weight chart
SS 304 custom profile weight chart
| Profile Type | Weight per Meter (kg/m) |
|---|---|
| U-Profile | 1.5–6.0 |
| L-Profile | 1.2–5.5 |
| Omega Profile | 1.0–4.5 |

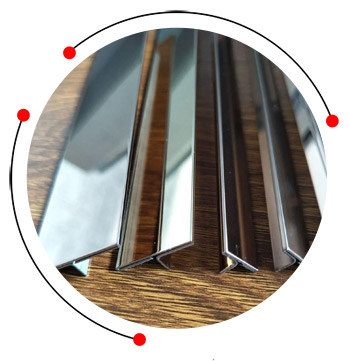

Features of SS 316 decorative custom profile
- Corrosion-resistant for indoor/outdoor use
- Lightweight and strong
- Customizable lengths and thicknesses
- Durable, scratch-resistant
- Available in various surface finishes
Stainless steel custom profile application
- Clean rooms in food / pharmaceutical industries
- Window systems and partition supports
- Architectural facades and cladding
- Marine and coastal structures
- Modular and panel framing
Chemical composition of SS custom profile
Chemical composition of SS custom profile
| Element | SS 316 (%) | SS 304 (%) |
|---|---|---|
| Carbon (C) | = 0.08 | = 0.08 |
| Molybdenum (Mo) | 2.0–3.0 | — |
| Chromium (Cr) | 16.0–18.0 | 18.0–20.0 |
| Nickel (Ni) | 10.0–14.0 | 8.0–10.5 |
| Manganese (Mn) | = 2.0 | = 2.0 |
Mechanical properties of stainless steel decorative custom profile
Mechanical properties of stainless steel decorative custom profile
| Property | SS 304 | SS 316 |
|---|---|---|
| Yield Strength (MPa) | 205 (min) | 205 (min) |
| Elongation (%) | 40 (min) | 40 (min) |
| Tensile Strength (MPa) | 515–750 | 515–750 |
| Hardness (HRB) | = 95 | = 95 |

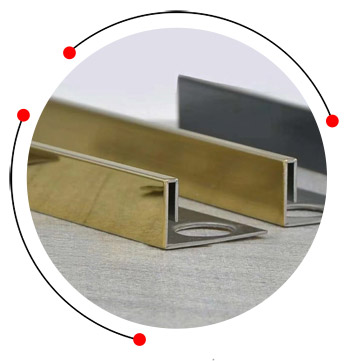

SS decorative custom profile equivalent grades
SS decorative custom profile equivalent grades
| Standard | SS 316 | SS 304 |
|---|---|---|
| UNS | S31600 | S30400 |
| EN/DIN | 1.4401 | 1.4301 |
| JIS | SUS316 | SUS304 |
| BS | 316S31 | 304S31 |

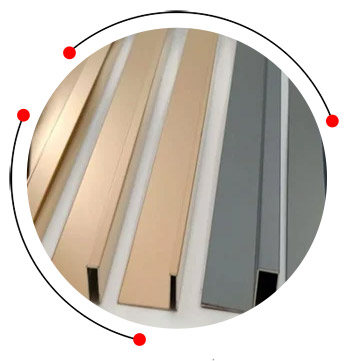

Stainless steel custom profile trim manufacturing process
- Material Selection
- Cutting & Shaping
- Cold Rolling or Hot Rolling
- Annealing Process
- Surface Finishing
- Cutting to Length and Customization
- Welding and Assembly /li>
- Quality Control and Testing
- Packaging and Shipping
Frequently Asked Questions About SS Custom Profiles
- Standard sizes range from 6m to 12m in length
- Thickness typically varies from 1.0mm to 6.0mm
- Custom sizes can be requested
- 2B
- BA (bright annealed)
- No. 4 (brushed)
- No. 8 (mirror polish)
- PVD coated
