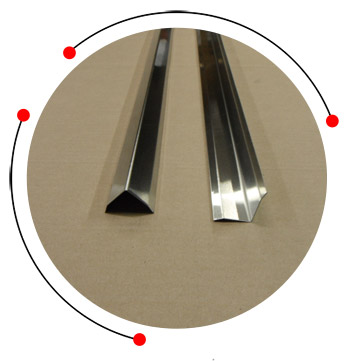

Stainless steel corner tile trim is a precision-formed L-shaped or curved-nose stainless steel profile specifically designed to protect and finish tile edges at external corners, wall-to-floor junctions, and countertop edges. Manufactured from 304 or 316 grade stainless steel strip through cold roll-forming, these trims prevent tile chipping at vulnerable corner edges while providing a clean, professional architectural finish.
Stainless steel corner tile trims are used in residential and commercial tiling applications including bathroom walls, kitchen backsplashes, swimming pool surrounds, shower cubicles, stair nosings, countertop edges, and any tiled surface where corner protection and a finished edge appearance are required.
Stainless steel corner tile trim specification
Stainless steel corner tile trim specification
| SPECIFICATION | DETAILS |
|---|---|
| Material | 304/316 Stainless steel |
| Length | 2440 mm |
| Thickness | 0.6, 0.8, 1.0 mm/customized |
| Height | 8/10/12 mm or customized |
| Surface Treatment | Brushed, BA, mirror |
| Applications | Finishing corners, Protecting tile edges |
Stainless steel corner trim application
- Exterior Use
- Kitchen & Bathroom
- Wall and Floor Edges
- Decorative Edges

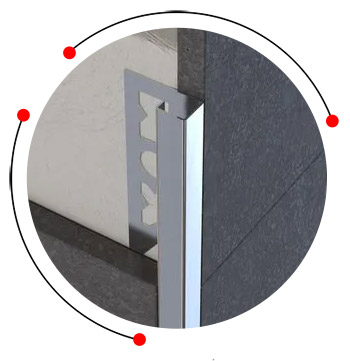

SS corner edge trim sizes
SS corner edge trim sizes
| Size (mm) | Width | Thickness | Length | Weight (kg/m) |
|---|---|---|---|---|
| 10 x 10 | 10mm | 0.8mm | 2500mm, 3000mm, 4000mm | 0.15 kg |
| 12 x 12 | 12mm | 1.0mm | 2500mm, 3000mm, 4000mm | 0.20 kg |
| 15 x 15 | 15mm | 1.2mm | 2500mm, 3000mm, 4000mm | 0.25 kg |
| 20 x 20 | 20mm | 1.5mm | 2500mm, 3000mm, 4000mm | 0.35 kg |
| 25 x 25 | 25mm | 2.0mm | 2500mm, 3000mm, 4000mm | 0.45 kg |
| 30 x 30 | 30mm | 2.5mm | 2500mm, 3000mm, 4000mm | 0.55 kg |

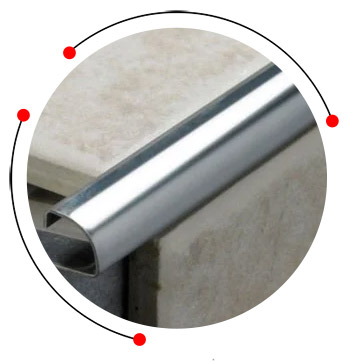

Color option of stainless steel outside corner trim
- Rose Gold PVD Coating
- Brushed Stainless Steel
- Custom Coatings
- Polished Stainless Steel
- Black PVD Coating
- Gold PVD Coating
- Chrome Plated
SS corner trim chemical composition
SS corner trim chemical composition
| Grade | STS304 | STS 316 | STS430 | STS201 |
|---|---|---|---|---|
| Elong(10%) | Above 40 | 30MIN | Above 22 | 50-60 |
| Hardness | ≤200HV | ≤200HV | Below 200 | HRB100,HV 230 |
| Cr(%) | 18-20 | 16-18 | 16-18 | 16-18 |
| Ni(%) | 8-10 | 10-14 | ≤0.60% | 0.5-1.5 |
| C(%) | ≤0.08 | ≤0.07 | ≤0.12% | ≤0.15 |
Brushed stainless steel corner trim mechanical properties
Brushed stainless steel corner trim mechanical properties
| Property | Value |
|---|---|
| Tensile Strength | 550–700 MPa (depends on grade) |
| Hardness | Rockwell B70–80 |
| Elongation | 40–50% |
| Yield Strength | 240–290 MPa (depends on grade) |
Equivalent grades of stainless steel corner molding
Equivalent grades of stainless steel corner molding
| Material | Equivalent Grades |
|---|---|
| 304 Stainless Steel | AISI 304, EN 1.4301 |
| 316 Stainless Steel | AISI 316, EN 1.4401 |
Brushed steel corner trim characteristic
Brushed steel corner trim characteristic
| Characteristic | Description |
|---|---|
| Material | High-quality stainless steel (304 or 316 grades) |
| Protection | Protects tile edges from cracks, chips, and damage |
| Durability | Resistant to rust, corrosion, and staining |
| Finish Options | Brushed, polished, satin, and matte finishes |
| Customizable | Available in various colors, sizes, and finishes |
| Ease of Installation | Quick and simple installation with minimal tools |
Frequently Asked Questions About SS Corner Tile Trim
- Brushed Finish (Hairline)
- Satin Finish
- Matte Finish
- Polished Finish (Mirror)
- PVD Coated – Gold, Black, Bronze, Rose Gold
- Bead Blasted Finish
- Antique Finish
| Finish | Look | Key Difference |
|---|---|---|
| Polished | Glossy and mirror-like | Smooth surface, highly reflective |
| Brushed | Matte with fine lines | Textured surface, less reflective |
- Yes, it can be cut to custom sizes.
- Standard lengths are usually 2.5m, 3m, and 4m.
- Can be cut using a hacksaw or grinder.
- Use fine-tooth blades for clean cuts.
