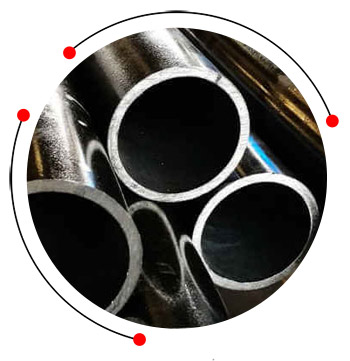

SA 210 Grade A1 is a seamless medium-carbon steel boiler tube manufactured to ASME SA210 / ASTM A210 specification for boiler and superheater applications. This grade uses medium-carbon steel with silicon additions, offering a good balance of strength, toughness, and weldability for moderate-temperature boiler service up to 450°C.
SA 210 Grade A1 boiler tubes are used in water tube boilers, economizers, superheaters, and heat exchanger tubing in power generation, district heating systems, and industrial steam production. They are widely specified in thermal power plant boiler circuits and industrial process steam generators where a cost-effective alloy steel is required.

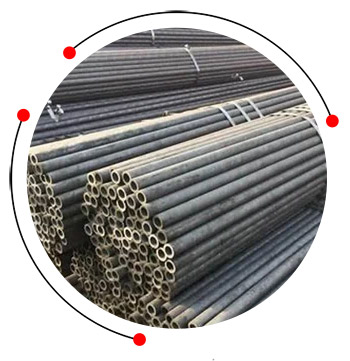

Spark Steel supplies ASME SA210 Grade A1 seamless boiler tubes with tensile strength minimum 415 MPa and yield strength minimum 255 MPa, available in OD from 12.7 mm to 114.3 mm with various wall thicknesses. Supplied in normalized condition with hydrostatic test, flattening test, and flaring test results per ASME SA210 requirements. Full mill test reports available with third-party inspection on request.
sa 210 gr a1 material specification
sa 210 gr a1 material specification
| SPECIFICATION | DETAILS |
|---|---|
| Size range | 1⁄2 inch to 16 inch |
| Wall thickness | 1.5mm To 50mm |
| Length | 5 mm - 25 mm |
| Manufacturing methods | Seamless, Hot finishing, Cold rolled |
| Coating | FBE/ Epoxy, 3PE, Varnished, Polished |
| End | Beveled and Plain End |

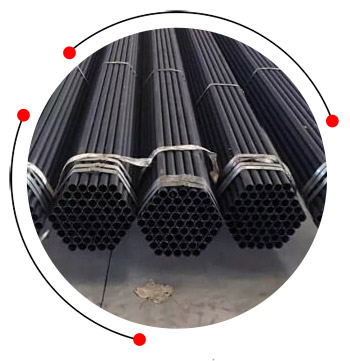

ASTM A210 Gr A1 steam boiler pipe size
ASTM A210 Gr A1 steam boiler pipe size
| Size (inch) | OD (mm) |
|---|---|
| 3 | 88.9 |
| 1 1/2 | 48.26 |
| 2 | 60.33 |
| 1 1/4 | 42.16 |
| 3/4 | 26.67 |
| 1/2 | 21.34 |
| 20 | 508 |
| 22 | 558.8 |
| 16 | 406.4 |
| 12 | 323.9 |
| 24 | 609.6 |
| 18 | 457.2 |
| 14 | 355.6 |
| 8 | 219.1 |
| 10 | 273.1 |
| 6 | 168.3 |
| 4 | 114.3 |
| 5 | 141.3 |
| 3 1/2 | 101.6 |
| 2 1/2 | 73.03 |
| 1 | 33.4 |

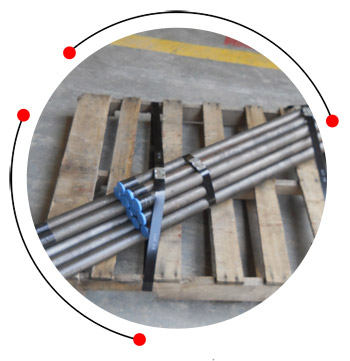

ASME SA 210 condenser tube dimensions
ASME SA 210 condenser tube dimensions
| Outside Dia (OD) mm | Standard Length (m) | Wall Thickness (milimeter) |
|---|---|---|
| 31.8 | 6.0 - 12.0 | 2.1 |
| 38.1 | 6.0 - 12.0 | 2.5 |
| 25.4 | 6.0 - 12.0 | 2.0 |
| 44.5 | 6.0 - 12.0 | 2.8 |
| 50.8 | 6.0 - 12.0 | 3.0 |
| 63.5 | 6.0 - 12.0 | 3.2 |
SA 210 Grade A1 boiler tube price list
SA 210 Grade A1 boiler tube price list
| Description | Price in USD | Price in Kilogram (INR) |
|---|---|---|
| ASTM A210 Grade A1 CS Boiler Tube, Size: 4 Inch | $ 1.05 | ₹ 90 |
| SA210 Grade A1 Boiler Tube, Size: 1 Inch | $ 2.10 | ₹ 180 |
sa 210 gr a1 chemical composition
sa 210 gr a1 chemical composition
| Grade | C | Si | Mn | P | S |
|---|---|---|---|---|---|
| A1 | 0.27 | 0.10 | Max 0.93 | 0.035 | 0.035 |
sa210 gr a1 mechanical properties
sa210 gr a1 mechanical properties
| Yield Strength | Tensile Strength | Elongation |
Hardness |
|---|---|---|---|
| ≥255 | ≥415 | ≥30 | ≤79 |
sa210 grade a1 equivalent
sa210 grade a1 equivalent
| Grade | Gr A1 |
|---|---|
| Brazilian | NBR 5592 |
| BS | 3602 |
| French | NF A 49-213 |
| EN | 10216-2 |
| Italian | 5462-64 |
| DIN | 17175 |
pressure rating of SA210 Gr A1 seamless boiler tube
pressure rating of SA210 Gr A1 seamless boiler tube
| Size | Pressure (ksi) |
|---|---|
| 4 | 1.2 |
| 3-1/2 | 1.2 |
| 6 | 1 |
| 3/4 | 0.7 |
| 1 | 0.7 |
| 1-1/4 | 1 |
| 5 | 1.2 |
| 8 | 0.8 |
| 1-1/2 | 1 |
| 2 | 1 |
| 2-1/2 | |
| 3 |

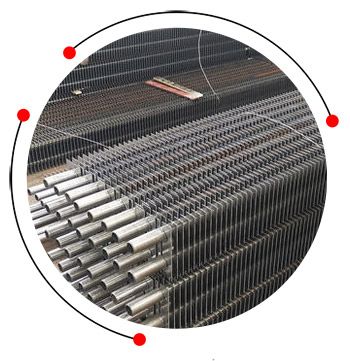

ASTM A210 Grade A1 finned boiler tube length tolerance
ASTM A210 Grade A1 finned boiler tube length tolerance
| OD in. (mm) | Length, in.(mm) | |
|---|---|---|
| Under (-) | Over (+) | |
| Under 2 (50.8) | 0 | 1 / 8 [3] |
| 2 (50.8) and over | 0 | 3 / 16 [5] |
| All Sizes | 0 | 3 / 16 [5] |
SA210 Gr A1 tubes testing
SA210 Gr A1 tubes testing
| Hardness Test | Tensile Test | Hydrostatic Test |
| Ultrasonic Test | Eddy Current Test | Flattening Test |
| Dimensional Check | Impact Test | Bend Test |
| Visual Inspection | Microstructure Examination |
Hydrostatic test pressures of SA 210 Gr A1 material
Hydrostatic test pressures of SA 210 Gr A1 material
| OD in. (mm) | Pressure, psi (MPa) |
|---|---|
| 11 / 2 - 2 (38.1 - 50.8), excl | 2000 (14) |
| 1 - 11 / 2 (25.4 - 38.1), excl | 1500 (10) |
| 2 - 3 (50.8 - 76.2), excl | 2500 (17) |
| Under 1 (25.4) | 1000 (7) |
SA 210 Grade A1 boiler tube weight chart
SA 210 Grade A1 boiler tube weight chart
| Size | Weight/ft | WT |
|---|---|---|
| 1 | 1.68 | 0.133 |
| 5 | 10.80 | 0.188 |
| 1 1/2 | 2.72 | 0.145 |
| 6 | 7.59 | 0.109 |
| 3/4 | 1.13 | 0.113 |
| 3 | 4.34 | 0.120 |
| 4 | 5.62 | 0.120 |
| 3 1/2 | 4.98 | 0.120 |
| 2 | 2.64 | 0.109 |
| 1 1/4 | 2.27 | 0.140 |
| 1/2 | 0.85 | 0.109 |

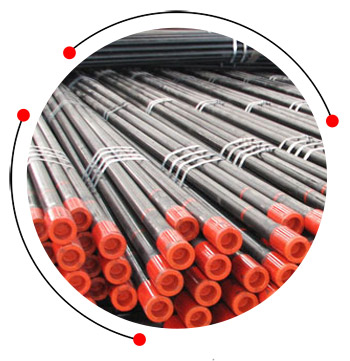

SA 210 A1 superheater tube thickness chart
SA 210 A1 superheater tube thickness chart
| OD in. (mm) | Tolerance % | |
|---|---|---|
| Under (-) | Over (+) | |
| Under 1 ½ (38.1) | 0 | 20 |
| Over 1½ (38.1) | 0 | 22 |
SA210 A1 boiler tube od tolerance
SA210 A1 boiler tube od tolerance
| OD in. (mm) | Variations in. (mm) | |
|---|---|---|
| Under (-) | Over (+) | |
| Over 11 / 2 - 2 (38.1 - 50.8), Excl | 0.008 (0.20) | 0.008 (0.20) |
| 1 - 1 ½ (25.4 - 38.1), Incl | 0.006 (0.15) | 0.006 (0.15) |
| 21 / 2 - 3 (63.5 - 76.2), Excl | 0.012 (0.30) | 0.012 (0.30) |
| 2 - 21 / 2 (50.8 - 63.5), Excl | 0.010 (0.25) | 0.010 (0.25) |
| Under 1 (25.4) | 0.004 (0.10) | 0.004 (0.10) |
Elongation of SA 210 Grade A1 heat exchanger tube
Elongation of SA 210 Grade A1 heat exchanger tube
| WT | Elongation |
|---|---|
| 1/8″ | 21 |
| 9/32″ | 28 |
| 1/4″ | 27 |
| 5/16″ | 30 |
| 1/16″ | 18 |
| 3/32″ | 20 |
| 3/16″ | 24 |
| 7/32″ | 26 |
| 5/32″ | 22 |
Dimensional tolerance of SA210A1 u tube heat exchanger
Dimensional tolerance of SA210A1 u tube heat exchanger
| Hot rolled | Tolerance (%) | OD (milimeter) |
|---|---|---|
| +35/-0 | OD ≤ 101.6, 2.4 ＜ WT ≤ 3.8 | |
| +28/-0 | OD ≤ 101.6, WT > 4.6 | |
| +33/-0 | OD ≤ 101.6, 3.8 ＜ WT ≤ 4.6 | |
| +40/-0 | OD ≤ 101.6, WT ≤ 2.4 | |
| +35/-0 | OD > 101.6, 2.4 ＜ WT ≤ 3.8 | |
| +28/-0 | OD > 101.6, WT > 4.6 | |
| +33/-0 | OD > 101.6, 3.8 ＜ WT ≤ 4.6 | |
| Cold Drawn | Tolerance (%) | OD (mm) |
| +22/-0 | OD > 38.1 | |
| +20/-0 | OD ≤ 38.1 |
Poisson’s ratio and shear modulus of SA210 Gr A1 tubes
Poisson’s ratio and shear modulus of SA210 Gr A1 tubes
| Shear Modulus | 73 GPa |
|---|---|
| Poisson’s Ratio | 0.29 |
