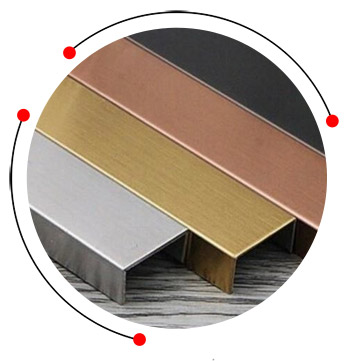

PVD coated stainless steel profile is a high-specification decorative architectural trim section produced by depositing an ultra-thin physical vapor deposition (PVD) coating layer over precision cold roll-formed 304 or 316 grade stainless steel profiles. The PVD process creates a fully bonded, wear-resistant, and color-stable decorative layer that is more durable and consistent than electroplating or paint alternatives.
PVD coated stainless steel profiles are used in architectural interior applications including tile trims, partition framing, glass balustrade trim, elevator interiors, countertop edge profiles, skirting boards, and wall panel framing in luxury hotels, retail environments, corporate lobbies, and high-specification residential projects.
Specification of PVD coated stainless steel profiles
Specification of PVD coated stainless steel profiles
| SPECIFICATION | DETAILS |
|---|---|
| Material | 304/316 Stainless Steel |
| Color | Black, Bronze, Gold, Rose Gold |
| Size | 6mm to 100mm |
| Technique | Cold Rolled |
| Length | 5 - 10 Feet |
| Material Grade | SS304 | SS316 | SS202 |

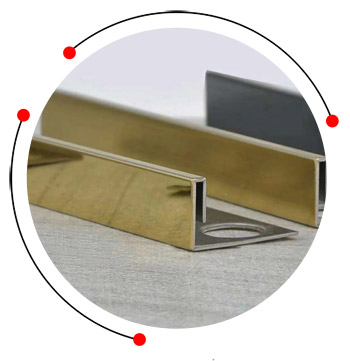

SS 304 PVD coated profiles applications
- Furniture and cabinetry trims
- Elevator panels and frames
- Retail and showroom fixtures
- Hotel and office decor elements
- Interior wall and ceiling decoration
Weight chart of stainless steel PVD coated profiles
Weight chart of stainless steel PVD coated profiles
| Profile Type | Thickness (mm) | Approx. Weight (kg/m) | Width (mm) |
|---|---|---|---|
| T Profile | 1.0 | 1.05 | 20 |
| T Profile | 1.2 | 1.30 | 30 |
| Flat Bar | 1.0 | 1.55 | 20 |
| Flat Bar | 2.0 | 3.80 | 50 |
| Omega Profile | 1.0 | 1.10 | 25 |
| U Profile | 0.8 | 0.60 | 10 |
| Decorative T | 1.5 | 2.10 | 30 |
| U Profile | 1.0 | 0.85 | 15 |
| U Profile | 1.0 | 1.10 | 20 |
| L Profile | 1.2 | 1.20 | 25 |
| L Profile | 1.5 | 1.45 | 30 |
| Omega Profile | 1.2 | 1.60 | 40 |
| Flat Bar | 1.5 | 2.20 | 30 |
| Edge Trim | 0.8 | 0.65 | 12 |
| Edge Trim | 1.0 | 1.00 | 20 |

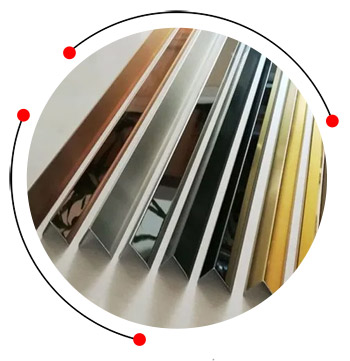

PVD-coated stainless steel trim features
- Customizable in size and color
- Eco-friendly and non-toxic
- Scratch and corrosion resistant
- Elegant and modern appearance
- Long-lasting color finish
SS 316 PVD coated profile surface finish
- Bead Blasted
- Mirror (No. 8)
- Brushed (No. 4)
- Hairline
SS PVD coated collar profile sizes
SS PVD coated collar profile sizes
| Profile Type | Thickness (mm) | Height (mm) | Width (mm) | Length (mm) |
|---|---|---|---|---|
| T Profile | 1.2 | 20 | 30 | 3050 |
| Flat Bar | 1.0 | — | 20 | 4000 |
| Flat Bar | 1.5 | — | 30 | 3050 |
| U Profile | 1.0 | 15 | 15 | 3050 |
| U Profile | 1.0 | 20 | 20 | 3050 |
| Flat Bar | 2.0 | — | 50 | 2440 |
| Omega Profile | 1.0 | 15 | 25 | 3050 |
| Omega Profile | 1.2 | 20 | 40 | 2440 |
| U Profile | 0.8 | 10 | 10 | 2440 |
| L Profile | 1.2 | 25 | 25 | 2440 |
| L Profile | 1.5 | 30 | 30 | 3050 |
| T Profile | 1.0 | 15 | 20 | 3050 |
| Edge Trim | 0.8 | 12 | 12 | 2440 |
| Edge Trim | 1.0 | 20 | 20 | 3050 |
| Decorative T | 1.5 | 15 | 30 | 4000 |
Color option of PVD coating stainless steel profile
- Black
- Gold
- Bronze
- Blue
- Copper
- Rose Gold
- Champagne
PVD finish stainless steel profile chemical composition
PVD finish stainless steel profile chemical composition
| Element | SS 304 (%) | SS 316 (%) |
|---|---|---|
| Mo | – | 2.0 – 3.0 |
| Mn | ≤ 2.0 | ≤ 2.0 |
| Cr | 18.0 – 20.0 | 16.0 – 18.0 |
| Ni | 8.0 – 10.5 | 10.0 – 14.0 |
| C | ≤ 0.08 | ≤ 0.08 |
PVD coated stainless steel profiles mechanical properties
PVD coated stainless steel profiles mechanical properties
| Property | SS 304 | SS 316 |
|---|---|---|
| Yield Strength (MPa) | 205 min | 205 min |
| Tensile Strength (MPa) | 515–750 | 515–750 |
| Elongation (%) | ≥ 40% | ≥ 40% |
Equivalent grades of PVD coated ss profiles
Equivalent grades of PVD coated ss profiles
| Standard | SS 304 | SS 316 |
|---|---|---|
| UNS | S30400 | S31600 |
| JIS | SUS304 | SUS316 |
| EN/DIN | 1.4301 | 1.4401 |
