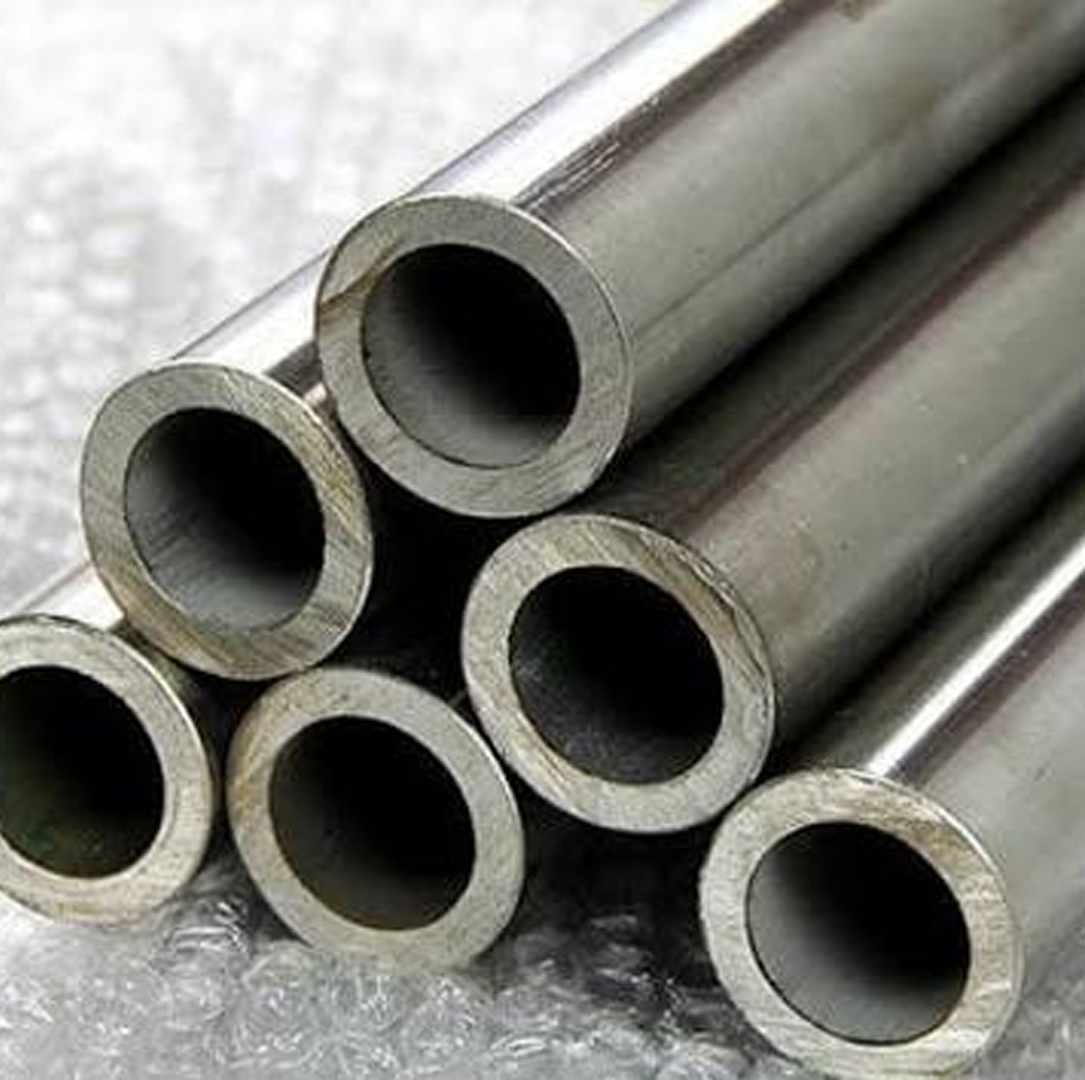

Inconel 825 pipe and tube

What Is Inconel 825 Pipe?

Inconel 825 Pipe, or Alloy 825 Pipe, is a nickel-iron-chromium alloy pipe designed for applications where resistance to aggressive chemicals and corrosive service conditions is more important than using conventional stainless steel.

The alloy's composition combines nickel, chromium and iron with molybdenum, copper and titanium. This combination provides broad corrosion resistance in both oxidizing and reducing environments.

Alloy 825 Pipe is available in different outside diameters, wall thicknesses, schedules, lengths and end configurations according to the applicable product specification and project requirements.

Inconel 825 Tube

Inconel 825 Tube, also referred to as Alloy 825 Tube or UNS N08825 Tube, is manufactured for applications where tubing geometry, dimensional control or compact fluid-flow arrangements are required.

Depending on the application and specification, Alloy 825 Tubing can be supplied in seamless or welded forms. Tubes are commonly selected for heat exchangers, process equipment, chemical systems and other applications involving corrosive fluids.

The required tube dimensions, wall thickness, length, manufacturing method and testing requirements should be confirmed before ordering.

Key Properties of Alloy 825 Pipe and Tube

Excellent Corrosion Resistance
Alloy 825 provides broad resistance to many corrosive environments. Its nickel, chromium, molybdenum and copper content contributes to its performance in both reducing and oxidizing conditions.

Resistance to Acidic Environments
Alloy 825 is particularly useful in applications involving certain sulfuric and phosphoric acid environments. Actual suitability depends on concentration, temperature, contaminants and operating conditions.

Resistance to Chloride Corrosion
The alloy offers resistance to chloride-related corrosion mechanisms, including pitting and crevice corrosion, making it useful in selected marine and chemical-processing environments.

Resistance to Stress-Corrosion Cracking
The alloy is designed to provide good resistance to chloride-induced stress-corrosion cracking compared with many conventional stainless steel grades.

Good Fabrication Characteristics
Alloy 825 can be fabricated using suitable industrial processes. Welding procedures, filler materials, heat treatment and post-weld requirements should be selected according to the applicable specification and service conditions.

Elevated-Temperature Service
Alloy 825 can be used in elevated-temperature environments, but the actual allowable service temperature depends on the application, mechanical requirements, pressure, corrosion conditions and applicable design code.

Inconel 825 Seamless Pipe and Tube

Inconel 825 Seamless Pipe is manufactured without a longitudinal welded seam. This construction can be preferred for applications requiring controlled dimensional integrity and reliable performance under pressure or corrosive service.

Seamless Alloy 825 products are commonly considered for:

• Chemical processing systems
• High-purity process applications
• Heat exchanger components
• Corrosive fluid transfer
• Oil and gas equipment
• Pollution-control systems

The manufacturing process and applicable standard should be confirmed for each order. Seamless Inconel 825 pipe is commonly specified to ASTM B423.

Inconel 825 Welded Pipe and Tube

Inconel 825 Welded Pipe and Tube are manufactured by forming alloy material and joining the longitudinal seam using a suitable welding process.

Welded products can be an economical choice for certain larger-diameter or dimensional requirements. Weld quality, inspection, heat treatment and testing should be selected according to the applicable specification and project requirements.

Applications of Inconel 825 Pipe and Tube

Alloy 825 is selected for applications where corrosion resistance is a primary consideration.

Chemical Processing
Used in piping systems, tanks, process equipment and components exposed to aggressive chemical environments including sulfuric and phosphoric acid systems.

Pollution Control Equipment
Suitable for selected applications involving flue-gas treatment and other pollution-control processes where corrosive gases or liquids may be present.

Oil and Gas
Used in selected process and production environments where corrosion-resistant alloy materials are required for sour-service or chemical-injection applications.

Marine Applications
The alloy can be considered for marine and seawater-related environments where resistance to chloride-containing conditions is required.

Acid Processing
Used in selected equipment exposed to sulfuric acid, phosphoric acid and other aggressive chemical media where stainless steels are inadequate.

Pharmaceutical Industry
Alloy 825 can be used in selected process systems where corrosion resistance and material traceability are important.

Power Generation
Used for selected piping, process and heat-transfer applications where the operating environment requires a nickel alloy.

Heat Exchangers
Alloy 825 tubing can be considered for heat-transfer equipment operating in corrosive service conditions where the tube-side or shell-side medium demands higher corrosion resistance.

How to Select Inconel 825 Pipe and Tube

Choosing the correct Alloy 825 product requires more than selecting a material grade. Consider the following:

1. Define the Application

   Identify whether the product will be used for process piping, heat exchange, chemical handling, marine service or another application.

2. Confirm the Material Grade

   Specify Alloy 825 / UNS N08825 clearly and verify the material against the supplied MTC before acceptance.

3. Select Seamless or Welded Construction

   Choose the manufacturing method according to pressure, dimensions, availability, application and applicable standards.

4. Confirm Dimensions

   Provide the required outside diameter or NPS, wall thickness, schedule, length, end type and applicable tolerances.

5. Define Service Conditions

   Consider operating temperature, pressure, chemical concentration, chloride exposure, corrosive media, flow conditions and design life before finalizing the specification.

6. Confirm Testing and Documentation

   Specify required inspection, testing, certificates and traceability requirements before placing the order.

Quality Assurance for Inconel 825 Pipe and Tube

For critical industrial applications, buyers should verify the material and documentation before acceptance. Depending on the project specification, quality checks may include:

• Material Test Certificate (MTC) review
• Chemical composition verification
• Mechanical property verification
• Dimensional inspection
• Visual inspection
• PMI where required
• Non-destructive testing where specified
• Heat/lot traceability
• Surface inspection
• Third-party inspection where required

The exact inspection plan should be agreed upon before manufacturing or dispatch.

Why Choose Alloy 825 Pipe and Tube?

Alloy 825 is a practical choice for applications where corrosion resistance is a primary material requirement. Its nickel-chromium-iron base, together with molybdenum, copper and titanium additions, provides a combination of corrosion resistance and fabrication characteristics suitable for many demanding industrial environments.

For procurement, the correct alloy designation, product standard, dimensions, manufacturing method, testing requirements and service conditions should be clearly defined before ordering. Spark Steel can assist with Alloy 825 Pipe and Tube requirements based on your required material grade, dimensions, quantity, specifications and application.
