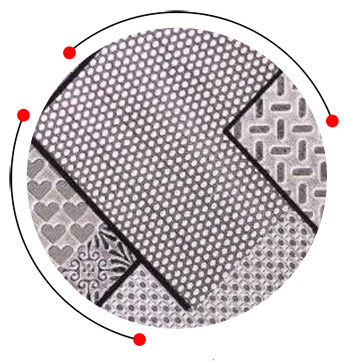

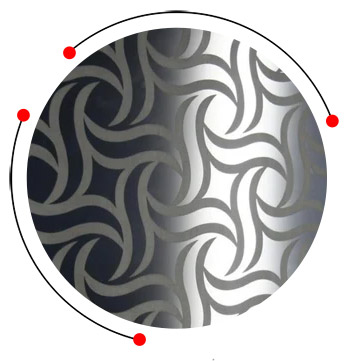

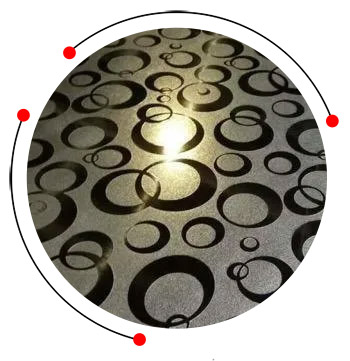

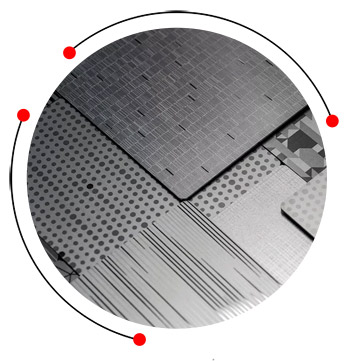

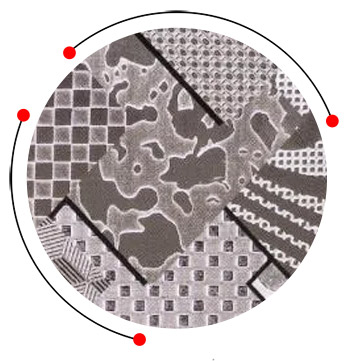

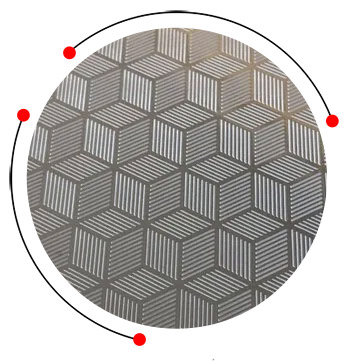

Etched stainless steel sheet is a decorative surface product created by chemically etching intricate patterns, textures, or custom designs into the surface of stainless steel sheet. The etching process selectively removes material from the base surface to create precise depth variations, resulting in a distinctive textured or patterned visual effect with a matte or contrasting finish that cannot be achieved by surface coating alone.
Etched stainless steel sheets are used in architectural wall cladding, ceiling tiles, elevator door panels, decorative partitions, branded signage, furniture panels, and artistic installations in hotels, airports, corporate offices, and luxury retail environments where distinctive visual customization and a tactile surface quality are required.
Spark Steel supplies etched stainless steel sheets in 304 and 316 grade, thickness from 0.5 mm to 3 mm, in standard sizes of 4×8 ft with custom sizing available. Pattern depth from 0.05 mm to 0.3 mm with a wide selection of standard floral, geometric, and abstract designs plus bespoke custom pattern capability. Available in combination with mirror, brushed, or PVD color coatings for enhanced decorative effect.
Specification chart of etched stainless steel sheet
Specification chart of etched stainless steel sheet
| SPECIFICATION | DETAILS |
|---|---|
| Material | Stainless Steel |
| Grade | SUS 304, 316 |
| Length | ≦4000 mm |
| Width | ≦1220 mm |
| Thickness | 0.5-3.0 mm |
| Etched Depth | 20~30 MICRON |
Stainless steel etching sheet thickness chart
Stainless steel etching sheet thickness chart
| Width in milimeter | Length in milimeter | Thickness | Grades |
| 1219 | 2438 | 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.8mm, 1mm, 1.2mm, 1.5mm, 1.8mm, 2.0mm, 2.5mm & 3mm |
|
| 1524 | 3048 | ||
| Other Thickness & Sizes On Request | |||
Weight chart of SS etched sheet
Weight chart of SS etched sheet
| Wt. Per Sq Feet | 0.22 | 0.30 | 0.37 | 0.45 | 0.59 | 0.74 | 0.89 | 1.11 | 1.34 | 1.49 | 1.86 | 2.23 |
| Thickness in milimeter | 0.30 | 0.40 | 0.50 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 | 1.80 | 2.00 | 2.50 | 3.00 |
| Wt. Per Sheet : 1524mm * 3048mm / 5' * 10' |
- | - | 18.00 | 21.60 | 28.80 | 36.00 | 43.20 | 54.00 | 64.80 | 72.00 | 90.00 | 108.00 |
| Wt. Per Sheet : 1219mm * 2438mm / 4' * 8' |
- | - | 11.89 | 14.27 | 19.02 | 23.78 | 28.53 | 35.66 | 42.80 | 47.55 | 95.10 | 142.65 |

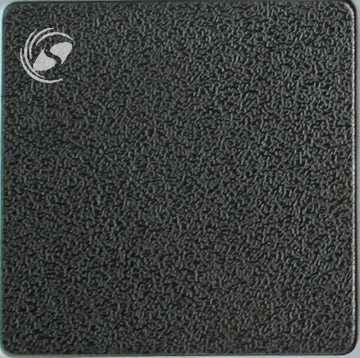

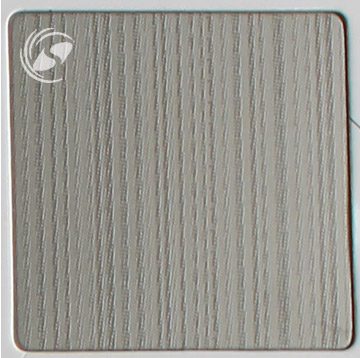

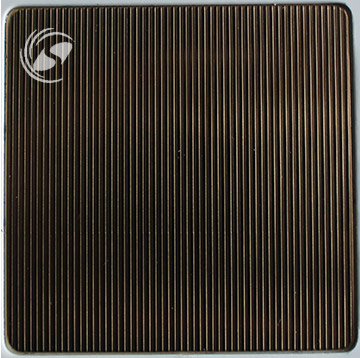

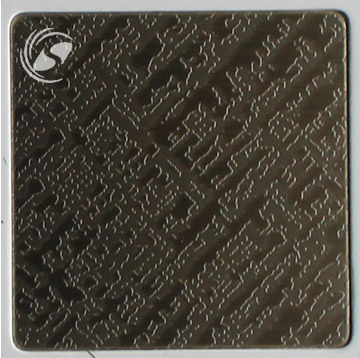

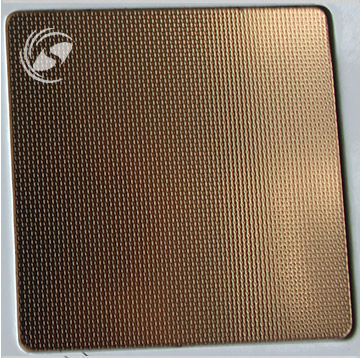

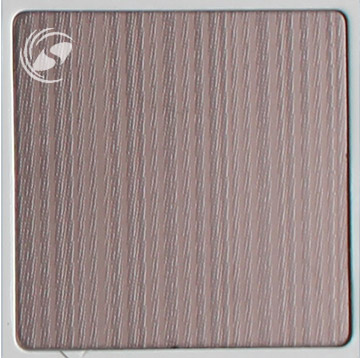

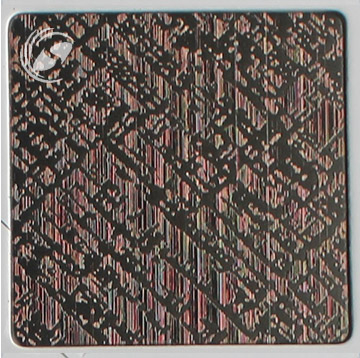

Decorative etched stainless steel sheet color option
Decorative etched stainless steel sheet color option
| Gold | Coffee Gold | Rose |
| Black | Red Rose | Titanium Black |
| Rose Gold | Violet | Brown |
| Copper | Red Copper | Antique Copper |
| Sapphire | Green | Red |
| Silver | Custom Colour Sheets | Bronze |
Chemical composition of etching stainless steel sheets
Chemical composition of etching stainless steel sheets
| Nickel (Ni) | 8.0 – 10.5 | 10.0 – 14.0 |
|---|---|---|
| Carbon (C) | ≤ 0.08 | ≤ 0.08 |
| Chromium (Cr) | 18.0 – 20.0 | 16.0 – 18.0 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.03 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.0 | ≤ 2.0 |
| Silicon (Si) | ≤ 1.0 | ≤ 1.0 |
| Molybdenum (Mo) | – | 2.0 – 3.0 |
Stainless steel etched sheets mechanical properties
Stainless steel etched sheets mechanical properties
| Tensile Strength | 515 – 620 MPa |
|---|---|
| Yield Strength | ≥ 205 MPa |
| Elongation | ≥ 40% |
| Hardness (HRB) | ≤ 95 |
Etched SS sheet features
- High Strength
- Dimensional Accuracy
- Robustness
- Finest Thickness
Etched stainless steel sheet equivalent
Etched stainless steel sheet equivalent
| EN | X5CrNi18-10 | X5CrNiMo17-12-2 |
|---|---|---|
| ASTM | A240 304 | A240 316 |
| UNS | S30400 | S31600 |
| JIS | SUS304 | SUS316 |
| DIN | 1.4301 | 1.4401 |
Physical properties of 304 etched stainless steel sheet
Physical properties of 304 etched stainless steel sheet
| Density | ~8.0 g/cm³ |
|---|---|
| Thermal Conductivity | 16 – 21 W/m·K |
| Melting Point | 1400 – 1450°C |
| Magnetic Response | Non-magnetic (annealed) |
| Electrical Resistivity | ~0.72 µΩ·m |
Etched finish stainless steel sheet application
Etched finish stainless steel sheet application
| Interior Design | Decorative Architecture | Elevators & Lifts |
| Wall Cladding | Partitions | Signage |
| Commercial Spaces | Furniture | Kitchens |
| Retail Displays | Hotel Lobbies | Cabin Interiors |
