ASTM A335 P12 is a seamless ferritic alloy steel pipe manufactured to ASTM A335 / ASME SA335 specification for high-temperature service. The P12 grade contains 0.80–1.25% chromium and 0.44–0.65% molybdenum, providing enhanced creep resistance and oxidation resistance at elevated operating temperatures up to 580°C.
These pipes are widely used in power generation plants, petrochemical refineries, and heat exchanger systems where elevated temperature and pressure conditions are encountered. P12 alloy steel pipes are also specified for steam lines, boiler headers, and superheater elements in thermal power stations.
Spark Steel supplies ASTM A335 P12 seamless alloy steel pipes in sizes from ½" to 24" NPS with wall thicknesses per Schedule 40 to Schedule XXS conforming to ASME B36.10. Hardness values up to 197 HB. End finishes available include plain end (PE), beveled end (BE), and threaded end (TE). Full MTR documentation and third-party inspection certificates supplied on request.
A335 P12 pipe specification
A335 P12 pipe specification
| SPECIFICATION | DETAILS |
|---|---|
| Manufacturing Methods | Hot Finished Seamless Pipe, Cold Drawn Seamless Pipe |
| Tolerance | ID: ±1%, OD: -1%/+1% |
| Sizes | Diameter: 6.00 to 914.4 mm, Pipe: 1/8" - 24" NB |
| Delivery Condition | Annealed, Hard/Soft Cold-finished, Normalized |
| Test | Flattening test, Tensile mechanical test, Hardness test, Bend Test |
| Coating | Varnished, Polished, FBE/ Epoxy, 3PE |

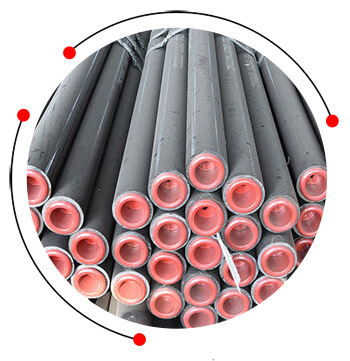

Price list of SA 335 P12 seamless pipe
Price list of SA 335 P12 seamless pipe
| Description | Price in USD | Price in Kilogram (INR) |
|---|---|---|
| ASTM A335 Alloy Steel P12 Pipe, Nominal Size: 3 inch | $ 0.99 | ₹ 85 |
| ASTM A 335 P12 Alloy Steel Pipes, Size: 1/2 Inch And 3 Inch | $ 2.51 | ₹ 215 |

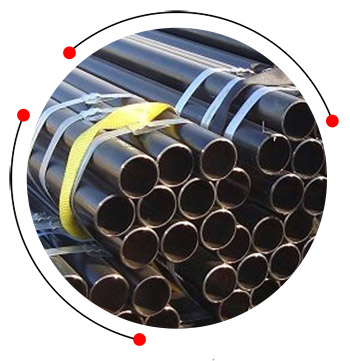

Schedule chart of ASTM A335 grade P12 pipe
Schedule chart of ASTM A335 grade P12 pipe
| NPS | OD (mm) | Sch 80 (WT mm) | Sch 40 (WT mm) | XXS (WT mm) | Sch 160 (WT mm) |
|---|---|---|---|---|---|
| 1 1/2" | 48.3 | 5.08 | 3.68 | 10.15 | 7.14 |
| 2" | 60.3 | 5.54 | 3.91 | 11.07 | 8.74 |
| 2 1/2" | 73.0 | 7.01 | 5.16 | 15.09 | 9.53 |
| 3" | 88.9 | 7.62 | 5.49 | 15.24 | 11.13 |
| 4" | 114.3 | 8.56 | 6.02 | 17.12 | 13.49 |
| 1/2" | 21.3 | 3.73 | 2.77 | 7.47 | 4.78 |
| 3/4" | 26.7 | 3.91 | 2.87 | 7.82 | 5.56 |
| 1" | 33.4 | 4.55 | 3.38 | 9.09 | 6.35 |
| 1 1/4" | 42.2 | 4.85 | 3.56 | 9.70 | 6.35 |
| 5" | 141.3 | 9.53 | 6.55 | 19.05 | 15.88 |
| 6" | 168.3 | 10.97 | 7.11 | 21.95 | 18.26 |
| 8" | 219.1 | 12.70 | 8.18 | 28.58 | 23.01 |
| 10" | 273.1 | 15.09 | 9.27 | 31.75 | 28.58 |
| 12" | 323.9 | 17.48 | 9.53 | 36.53 | 33.32 |
P12 chemical composition
P12 chemical composition
| C, % | P, % | S, % | Mn, % | Si, % | Mo, % | Cr, % |
| 0.015 maximum | 0.025 maximum | 0.025 maximum | 0.30-0.61 | 0.50 maximum | 0.45-0.65 | 0.80-1.25 |

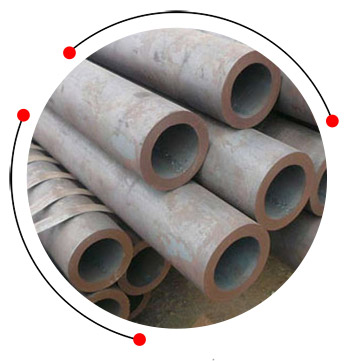

Mechanical properties of ASME SA335 Gr P12 erw pipe
Mechanical properties of ASME SA335 Gr P12 erw pipe
| Tensile Strength, MPa | Elongation, % | Yield Strength, MPa |
| 415 minimum | 30 minimum | 205 minimum |
P12 pipe equivalent grades
P12 pipe equivalent grades
| ASTM | Equivalent material | JIS G 3458 | ASME | BS | LRS | UNS | ABS | DIN | NK |
|---|---|---|---|---|---|---|---|---|---|
| A335 P12 | T12 | STPA 22 | SA335 P12 | 3604 P1 620-440 | Sec 2 1Cr 1/2Mo440 |
K11562 | ABS 12 | 17175 13CrMo44 |
KSTPA 22 |
| Sec 3 1Cr 1/2Mo440 |

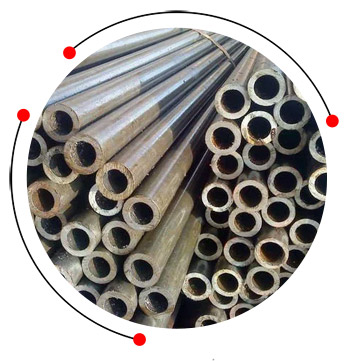

A335 Gr P12 welded pipe application
- Pharmaceuticals
- Chemical Equipment
- Specialty Chemicals
- Off-Shore Oil Drilling Companies
- Sea Water Equipment
- Power Generation
- Condensers
- Gas Processing
- Pulp and Paper Industry
- Pharmaceutical Equipment
- Heat Exchangers
- Petrochemicals
Weight chart of P12 alloy steel seamless pipe
Weight chart of P12 alloy steel seamless pipe
| NPS | OD (mm) | Sch 40 (WT mm) | Sch 80 (WT mm) | Weight (kg/m) | Weight (kg/m) |
|---|---|---|---|---|---|
| 2 1/2" | 73.0 | 5.16 | 7.01 | 11.00 | 14.70 |
| 3" | 88.9 | 5.49 | 7.62 | 15.28 | 20.87 |
| 4" | 114.3 | 6.02 | 8.56 | 22.27 | 30.75 |
| 6" | 168.3 | 7.11 | 10.97 | 37.74 | 57.85 |
| 8" | 219.1 | 8.18 | 12.70 | 55.62 | 84.76 |
| 10" | 273.1 | 9.27 | 15.09 | 82.38 | 129.30 |
| 12" | 323.9 | 9.53 | 17.48 | 103.72 | 180.20 |
| 1/2" | 21.3 | 2.77 | 3.73 | 1.28 | 1.68 |
| 3/4" | 26.7 | 2.87 | 3.91 | 1.91 | 2.51 |
| 1" | 33.4 | 3.38 | 4.55 | 2.96 | 3.91 |
| 1 1/4" | 42.2 | 3.56 | 4.85 | 4.43 | 5.83 |
| 1 1/2" | 48.3 | 3.68 | 5.08 | 5.48 | 7.31 |
| 2" | 60.3 | 3.91 | 5.54 | 7.56 | 10.29 |
| 14" | 355.6 | 9.53 | 19.05 | 114.10 | 221.76 |
| 16" | 406.4 | 9.53 | 21.44 | 130.40 | 266.68 |

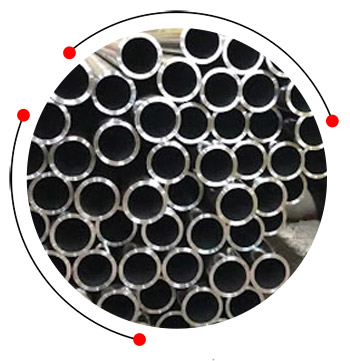

ASTM A335 grade P12 chrome pipe tolerance chart
ASTM A335 grade P12 chrome pipe tolerance chart
| OD Tolerance | NPS | NPS | WT Tolerance |
| +/- 0.4 | 1/8 inches ≤ NPS ≤ 1 1/2 inches | 1/8 inches ≤ NPS ≤ 2 1/2 inches , All T/D ratios. | +20%, -12.5% |
| +/- 0.79 | 1 1/2 < NPS ≤ 4 inches | NPS ≥ 2 1/2 inches , T/D ≤ 5% | +22.5%, -12.5% |
| +1.59, -0.79 | 4 inches < NPS ≤ 8 inches | NPS ≥ 2 1/2 inches , T/D > 5% | +15%, -12.5% |
| +2.38, -0.79 | 8 inches < NPS ≤ 12 inches | (T= Specified Wall Thickness; D = Specified Outside Diameter) | |

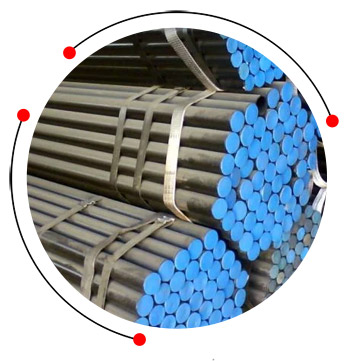

ASTM A335 P12 pipe sizes
ASTM A335 P12 pipe sizes
| NPS (inches) | OD (mm) | Sch 80 WT (mm) | Sch 160 WT (mm) | Sch 40 WT (mm) |
|---|---|---|---|---|
| 1/2" | 21.3 | 3.73 | 4.78 | 2.77 |
| 3/4" | 26.7 | 3.91 | 5.56 | 2.87 |
| 1" | 33.4 | 4.55 | 6.35 | 3.38 |
| 1 1/2" | 48.3 | 5.08 | 7.14 | 3.68 |
| 2" | 60.3 | 5.54 | 8.74 | 3.91 |
| 3" | 88.9 | 7.62 | 11.13 | 5.49 |
| 4" | 114.3 | 8.56 | 13.49 | 6.02 |
| 6" | 168.3 | 10.97 | 18.26 | 7.11 |
| 8" | 219.1 | 12.70 | 23.01 | 8.18 |
| 10" | 273.1 | 15.09 | 28.58 | 9.27 |
| 12" | 323.9 | 17.48 | 33.32 | 9.53 |
ASME SA335 P12 material dimension
ASME SA335 P12 material dimension
| Sizes NPS | Wall Thk | Pipes Outer Dia. | Gallon Capacity Per Linear Foot | Std to XXHY | Weight per Foot | Pipes Inner Dia. | sch Pipes # |
Section Modulus |
| 1/2 inch | 0.109 | 0.84 | .0158 | STD | 0.85 | 0.622 | 40 | .0407 |
| 0.147 | .0122 | XHY | 1.09 | 0.546 | 80 | .0478 | ||
| 0.188 | .0088 | 1.31 | 0.464 | 160 | .0528 | |||
| 0.294 | .0026 | XXHY | 1.72 | 0.252 | .0577 | |||
| 3/4 inch | 0.113 | 1.05 | .0277 | STD | 1.13 | 0.824 | 40 | .0705 |
| 0.154 | .0225 | XHY | 1.48 | 0.742 | 80 | .0853 | ||
| 0.219 | .0153 | 1.95 | 0.612 | 160 | .1006 | |||
| 0.308 | .0077 | XXHY | 2.44 | 0.434 | .1103 | |||
| 1 inch | 0.133 | 1.315 | .0449 | STD | 1.68 | 1.049 | 40 | .1328 |
| 0.179 | .0374 | XHY | 2.17 | 0.957 | 80 | .1606 | ||
| 0.250 | .0271 | 2.85 | 0.815 | 160 | .1904 | |||
| 0.358 | .0146 | XXHY | 3.66 | 0.599 | .2136 | |||
| 1 1/4 inch | 0.140 | 1.66 | .0777 | STD | 2.27 | 1.380 | 40 | .2346 |
| 0.191 | .0666 | XHY | 3.00 | 1.278 | 80 | .2913 | ||
| 0.250 | .0549 | 3.77 | 1.160 | 160 | .3421 | |||
| 0.382 | .0328 | 5.22 | 0.896 | .4110 | ||||
| 1 1/2 inch | 0.145 | 1.90 | .1058 | STD | 2.72 | 1.610 | 40 | .3262 |
| 0.200 | .0918 | XHY | 3.63 | 1.500 | 80 | .4118 | ||
| 0.281 | .0730 | 4.86 | 1.338 | 160 | .5079 | |||
| 0.400 | .0494 | 6.41 | 1.100 | .5977 | ||||
| 2 inch | 0.109 | 2.375 | .1898 | 2.64 | 2.157 | 10 | .4205 | |
| 0.154 | .1743 | STD | 3.66 | 2.067 | 40 | .5606 | ||
| 0.218 | .1534 | XHY | 5.03 | 1.939 | 80 | .7309 | ||
| 0.250 | .1434 | 5.68 | 1.875 | .8045 | ||||
| 0.281 | .1344 | 6.29 | 1.813 | .8666 | ||||
| 0.344 | .1161 | 7.47 | 1.687 | 160 | .9806 | |||
| 0.436 | .0922 | XXHY | 9.04 | 1.503 | 1.1043 | |||
| 2 1/2 inch | 0.120 | 2.875 | .2833 | 3.53 | 2.635 | 10 | .6870 | |
| 0.203 | .2487 | STD. | 5.80 | 2.469 | 40 | 1.0640 | ||
| 0.216 | .2435 | 6.14 | 2.443 | 1.1169 | ||||
| 0.250 | .2301 | 7.02 | 2.375 | 1.2468 | ||||
| 0.276 | .2202 | XHY | 7.67 | 2.323 | 80 | 1.3386 | ||
| 0.375 | .1842 | 10.02 | 2.125 | 160 | 1.6371 | |||
| 0.552 | .1280 | XXXHY | 13.71 | 1.771 | 1.9971 | |||
| 3inch | 0.120 | 3.50 | .4336 | 4.34 | 3.260 | 1.0411 | ||
| 0.156 | .4147 | 5.58 | 3.188 | 1.3122 | ||||
| 0.172 | .4064 | 6.12 | 3.156 | 1.4265 | ||||
| 0.188 | .3984 | 6.66 | 3.124 | 1.5342 | ||||
| 0.216 | .3840 | STD. | 7.58 | 3.068 | 40 | 1.7241 | ||
| 0.250 | .3672 | 8.69 | 3.000 | 1.9372 | ||||
| 0.281 | .3521 | 9.67 | 2.938 | 2.1207 | ||||
| 0.300 | .3431 | XHY | 10.26 | 2.900 | 80 | 2.2253 | ||
| 0.438 | .2811 | 14.34 | 2.624 | 160 | 2.8774 | |||
| 0.600 | .2158 | XXHY | 18.6 | 2.300 | 3.4243 | |||
| 3 1/2inch | 0.120 | 4.0 | .5768 | 4.98 | 3.760 | 10 | 1.3776 | |
| 0.226 | .5136 | STD. | 9.12 | 3.548 | 140 | 2.3939 | ||
| 0.250 | .4998 | 10.02 | 3.500 | 2.6001 | ||||
| 0.281 | .4821 | 11.17 | 3.438 | 2.8562 | ||||
| 0.318 | .4617 | XHY | 12.52 | 3.364 | 80 | 3.1400 | ||
| 0.636 | .3085 | XXHY | 22.87 | 2..728 | 4.8795 | |||
| 4inch | 0.120 | 4.5 | .7404 | 5.62 | 4.260 | 10 | 1.7612 | |
| 0.156 | .7156 | 7.24 | 4.188 | 2.2354 | ||||
| 0.188 | .6942 | 8.67 | 4.124 | 2.6296 | ||||
| 0.203 | .6838 | 9.32 | 4.094 | 2.8173 | ||||
| 0.219 | .6725 | 10.02 | 4.062 | 3.0184 | ||||
| 0.237 | .6613 | STD. | 10.80 | 4.026 | 40 | 3.2145 | ||
| 0.250 | .6528 | 11.36 | 4.000 | 3.3611 | ||||
| 0.281 | .6326 | 12.67 | 3.938 | 60 | 3.7021 | |||
| 0.312 | .6126 | 13.97 | 3.876 | 4.0273 | ||||
| 0.337 | .5972 | XHY | 15.00 | 3.826 | 80 | 4.2713 | ||
| 0.438 | .5361 | 19.02 | 3.624 | 120 | 5.1790 | |||
| 0.531 | .4822 | 22.53 | 3.438 | 160 | 5.8997 | |||
| 0.674 | .4054 | XXHY | 27.57 | 3.152 | 6.7927 | |||
| 5inch | 0.188 | 5.563 | 1.0979 | 10.80 | 5.187 | 4.1161 | ||
| 0.219 | 1.0716 | 12.51 | 5.125 | 4.7279 | ||||
| 0.258 | 1.0391 | STD. | 14.63 | 5.047 | 40 | 5.4500 | ||
| 0.281 | 1.0204 | 15.87 | 5.001 | 5.8644 | ||||
| 0.312 | .99647 | 17.51 | 4.939 | 6.4074 | ||||
| 0.344 | .9696 | 19.19 | 4.875 | 6.9358 | ||||
| 0.375 | .9449 | XHY | 20.80 | 4.813 | 80 | 7.4300 | ||
| 0.500 | .8495 | 27.06 | 4.563 | 120 | 9.2534 | |||
| 0.625 | .7590 | 32.99 | 4.313 | 160 | 10.7976 | |||
| 0.750 | .6734 | XXHY | 38.59 | 4.063 | 12.0954 | |||
| 6inch | 0.109 | 6.625 | 1.6748 | 7.59 | 6.407 | 5 | 3.5769 | |
| 0.134 | 1.6488 | 9.30 | 6.357 | 10 | 4.3475 | |||
| 0.156 | 1.6260 | 10.79 | 6.313 | 5.0107 | ||||
| 0.188 | 1.5937 | 12.94 | 6.249 | 5.9351 | ||||
| 0.203 | 1.5780 | 13.94 | 6.219 | 6.3804 | ||||
| 0.219 | 1.5620 | 15.00 | 6.187 | 6.8261 | ||||
| 0.250 | 1.5306 | 17.04 | 6.125 | 7.6905 | ||||
| 0.280 | 1.5008 | STD. | 18.99 | 6.065 | 40 | 8.4958 | ||
| 0.312 | 1.4688 | 21.06 | 6.001 | 9.3416 | ||||
| 0.344 | 1.4391 | 23.10 | 5.937 | 10.111 | ||||
| 0.375 | 1.4082 | 25.05 | 5.875 | 10.893 | ||||
| 0.432 | 1.3541 | XHY | 28.60 | 5.761 | 80 | 12.224 | ||
| 0.500 | 1.2909 | 32.74 | 5.625 | 13.711 | ||||
| 0.562 | 1.2346 | 36.43 | 5.501 | 120 | 14.9806 | |||
| 0.625 | 1.1787 | 40.09 | 5.375 | 16.1821 | ||||
| 0.719 | 1.0977 | 45.39 | 5.187 | 160 | 17.8243 | |||
| 0.864 | .9784 | XXHY | 53.21 | 4.897 | 20.025 | |||
| 1.000 | .8727 | 60.13 | 4.625 | 21.7719 | ||||
| 1.125 | .7809 | 66.14 | 4.375 | 23.1237 |
