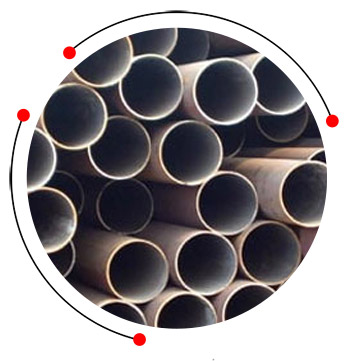

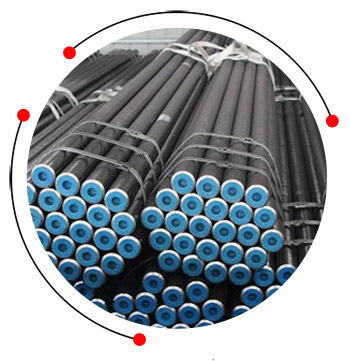

ASME SA213 T22 is a seamless ferritic alloy steel tube specified for boiler, superheater, and heat exchanger service under ASME SA213 / ASTM A213 standard. The T22 grade contains 2.00–2.50% chromium and 0.87–1.13% molybdenum (2.25Cr-1Mo), offering superior creep resistance and hydrogen embrittlement resistance at elevated temperatures up to 620°C.
SA213 T22 alloy steel tubes are used in high-pressure steam superheaters, reheaters, high-temperature heat exchangers, and reformer tubing in petrochemical plants, refineries, and power generation facilities. They are suitable for service in hydrogen-rich environments and under high-temperature sulfidation conditions where P11 grade is insufficient.
Spark Steel supplies ASME SA213 T22 seamless alloy steel tubes with tensile strength minimum 415 MPa and yield strength minimum 205 MPa. Available in tube OD from 12.7 mm to 76.2 mm with wall thicknesses per BWG or custom dimensions. Supplied in annealed or normalized and tempered condition with hydrostatic pressure testing and full certification per ASME / ASTM requirements.
SA 213 GR T22 specifications
SA 213 GR T22 specifications
| SPECIFICATION | DETAILS |
|---|---|
| Outside diameter | 19.05 - 114.3mm |
| Wall thickness | 1.6 - 6.35mm |
| Melting point | 1382 - 1529 °C |
| Processing service | Welding, Cutting, Painting, Bending, Punching, Decoiling, Coating |
| Heat capacity | 448 - 502 J/(kg·K) |
| Density | 7.8 - 7.9 g/cm³ |
| Length | max 1~12m |
| Standards | ASTM A213, ASME SA213 |
| Forms | Round, Rectangular, Square, Hydraulic |
SA 213 GR T22 chemical composition
SA 213 GR T22 chemical composition
| C, % | Mo, % | S, % | Cr, % | P, % | Si, % | Mn, % |
|---|---|---|---|---|---|---|
| 0.05-0.15 | 0.87-1.13 | 0.025 max | 1.90-2.60 | 0.025 max | 0.50 max | 0.30-0.60 |
SA213 T22 equivalent
SA213 T22 equivalent
| Trade Name | Grade | Heater Tubes | UNS # |
|---|---|---|---|
| 2 1/4 Chrome | T22 | A213 | K21590 |

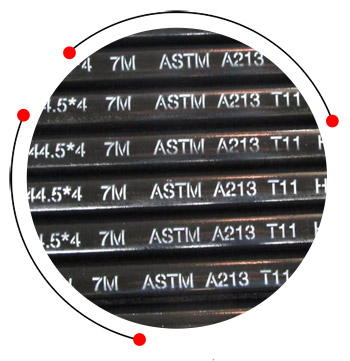

T22 boiler tube tolerance
T22 boiler tube tolerance
| Outside Diameter | WT Tolerance | OD Tolerance | Cut Length Tolerance | Ovality Tolerance |
|---|---|---|---|---|
| OD≤ 12, 7 mm | ± 15 % | ± 0, 13 mm | + 3, 18 mm, – 0 mm | – |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 10 % | ± 0, 25 mm | + 4, 76 mm, – 0 mm | max, 2, 41 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 10 % | ± 0, 13 mm | + 3, 18 mm, – 0 mm | max, 1, 65 mm |

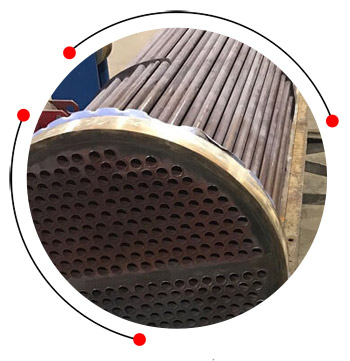

UNS K21590 heat exchanger tube mechanical properties
UNS K21590 heat exchanger tube mechanical properties
| Hardness, HB | Tensile Strength , MPa | Elongation, % | Yield Strength, MPa |
|---|---|---|---|
| 163 max | 415 min | 30 min | 205 min |

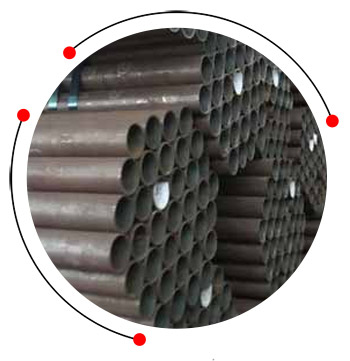

Dimension of ASTM A213 Gr T22 tube
Dimension of ASTM A213 Gr T22 tube
| SA213 T22 Tube O.D. | T22 Tube Gauge | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 00 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | |
| T22 Boiler Tube Wall Thickness (in) | ||||||||||||||||||||||||||
| .380 | .340 | .300 | .284 | .259 | .238 | .220 | .203 | .180 | .165 | .148 | .134 | .120 | .109 | .095 | .083 | .072 | .065 | .058 | .049 | .042 | .035 | .032 | .028 | .025 | .022 | |
| T22 Tube I.D. | ||||||||||||||||||||||||||
| 1 1/2" | .740 | .820 | .900 | .932 | .982 | 1.024 | 1.060 | 1.094 | 1.140 | 1.170 | 1.204 | 1.232 | 1.260 | 1.282 | 1.310 | 1.334 | 1.356 | 1.370 | 1.384 | 1.402 | 1.416 | 1.430 | 1.436 | 1.444 | 1.450 | 1.456 |
| 1 3/4" | .990 | 1.070 | 1.150 | 1.182 | 1.232 | 1.274 | 1.310 | 1.344 | 1.390 | 1.420 | 1.454 | 1.482 | 1.510 | 1.532 | 1.560 | 1.584 | 1.606 | 1.620 | 1.634 | 1.652 | 1.666 | 1.680 | 1.686 | 1.694 | 1.700 | 1.706 |
| 2" | 1.240 | 1.320 | 1.400 | 1.432 | 1.482 | 1.524 | 1.560 | 1.594 | 1.640 | 1.670 | 1.704 | 1.732 | 1.760 | 1.782 | 1.810 | 1.834 | 1.856 | 1.870 | 1.884 | 1.902 | 1.916 | 1.930 | 1.936 | 1.944 | 1.950 | 1.956 |
| 2 1/4" | 1.490 | 1.570 | 1.650 | 1.682 | 1.732 | 1.774 | 1.810 | 1.844 | 1.890 | 1.920 | 1.954 | 1.982 | 2.010 | 2.032 | 2.060 | 2.084 | 2.106 | 2.120 | 2.134 | 2.152 | 2.166 | 2.180 | 2.186 | 2.194 | 2.200 | 2.206 |
| 2 1/2" | 1.740 | 1.820 | 1.900 | 1.932 | 1.982 | 2.024 | 2.060 | 2.094 | 2.140 | 2.170 | 2.204 | 2.232 | 2.260 | 2.282 | 2.310 | 2.334 | 2.356 | 2.370 | 2.384 | 2.402 | 2.416 | 2.430 | 2.436 | 2.444 | 2.450 | 2.456 |
| 2 3/4" | 1.990 | 2.070 | 2.150 | 2.182 | 2.232 | 2.274 | 2.310 | 2.344 | 2.390 | 2.420 | 2.454 | 2.482 | 2.510 | 2.532 | 2.560 | 2.584 | 2.606 | 2.620 | 2.634 | 2.652 | 2.666 | 2.680 | 2.686 | 2.694 | 2.700 | 2.706 |
| 3" | 2.240 | 2.320 | 2.400 | 2.432 | 2.482 | 2.524 | 2.560 | 2.594 | 2.640 | 2.670 | 2.704 | 2.732 | 2.760 | 2.782 | 2.810 | 2.834 | 2.856 | 2.870 | 2.884 | 2.902 | 2.916 | 2.930 | 2.936 | 2.944 | 2.950 | 2.956 |
| 3 1/4" | 2.490 | 2.570 | 2.650 | 2.682 | 2.732 | 2.774 | 2.810 | 2.844 | 2.890 | 2.920 | 2.954 | 2.982 | 3.010 | 3.032 | 3.060 | 3.084 | 3.106 | 3.120 | 3.134 | 3.152 | 3.166 | 3.180 | 3.186 | 3.194 | 3.200 | 3.206 |
| 1/4" | .010 | .032 | .060 | .084 | .106 | .120 | .134 | .152 | .166 | .180 | .186 | .194 | .200 | .206 | ||||||||||||
| 3/8" | .015 | .045 | .079 | .107 | .135 | .157 | .185 | .209 | .231 | .245 | .259 | .277 | .291 | .305 | .311 | .319 | .325 | .331 | ||||||||
| 1/2" | .024 | .060 | .094 | .140 | .170 | .204 | .232 | .260 | .282 | .310 | .334 | .356 | .370 | .384 | .402 | .416 | .430 | .436 | .444 | .450 | .456 | |||||
| 5/8" | .025 | .057 | .107 | .149 | .185 | .219 | .265 | .295 | .329 | .357 | .385 | .407 | .435 | .459 | .481 | .495 | .509 | .527 | .541 | .555 | .561 | .569 | .575 | .581 | ||
| 3/4" | .070 | .150 | .182 | .232 | .274 | .310 | .344 | .390 | .420 | .454 | .482 | .510 | .532 | .560 | .584 | .606 | .620 | .634 | .652 | .666 | .680 | .686 | .694 | .700 | .706 | |
| 7/8" | .115 | .195 | .275 | .307 | .357 | .399 | .435 | .469 | .515 | .545 | .579 | .607 | .635 | .657 | .685 | .709 | .731 | .745 | .759 | .777 | .791 | .805 | .811 | .819 | .825 | .831 |
| 1" | .240 | .320 | .400 | .432 | .482 | .524 | .560 | .594 | .640 | .670 | .704 | .732 | .760 | .782 | .810 | .834 | .856 | .870 | .884 | .902 | .916 | .930 | .936 | .944 | .950 | .956 |
| 1 1/8" | .365 | .445 | .525 | .557 | .607 | .649 | .685 | .719 | .765 | .795 | .829 | .857 | .885 | .907 | .935 | .959 | .981 | .995 | 1.009 | 1.027 | 1.041 | 1.055 | 1.061 | 1.069 | 1.075 | 1.081 |
| 1 1/4" | .490 | .570 | .650 | .682 | .732 | .774 | .810 | .844 | .890 | .920 | .954 | .982 | 1.010 | 1.032 | 1.060 | 1.084 | 1.106 | 1.120 | 1.134 | 1.152 | 1.166 | 1.180 | 1.186 | 1.194 | 1.200 | 1.206 |
| 3 1/2" | 2.740 | 2.820 | 2.900 | 2.932 | 2.982 | 3.024 | 3.060 | 3.094 | 3.140 | 3.170 | 3.204 | 3.232 | 3.260 | 3.282 | 3.310 | 3.334 | 3.356 | 3.370 | 3.384 | 3.402 | 3.416 | 3.430 | 3.436 | 3.444 | 3.450 | 3.456 |
| 3 3/4" | 2.990 | 3.070 | 3.150 | 3.182 | 3.232 | 3.274 | 3.310 | 3.344 | 3.390 | 3.420 | 3.454 | 3.482 | 3.510 | 3.532 | 3.560 | 3.584 | 3.606 | 3.620 | 3.634 | 3.652 | 3.666 | 3.680 | 3.686 | 3.694 | 3.700 | 3.706 |
| 4" | 3.240 | 3.320 | 3.400 | 3.432 | 3.482 | 3.524 | 3.560 | 3.594 | 3.640 | 3.670 | 3.704 | 3.732 | 3.760 | 3.782 | 3.810 | 3.834 | 3.856 | 3.870 | 3.884 | 3.902 | 3.916 | 3.930 | 3.936 | 3.944 | 3.950 | 3.956 |
| 4 1/4" | 3.490 | 3.570 | 3.650 | 3.682 | 3.732 | 3.774 | 3.810 | 3.844 | 3.890 | 3.920 | 3.954 | 3.982 | 4.010 | 4.032 | 4.060 | 4.084 | 4.106 | 4.120 | 4.134 | 4.152 | 4.166 | 4.180 | 4.186 | 4.194 | 4.200 | 4.206 |
| 4 1/2" | 3.740 | 3.820 | 3.900 | 3.932 | 3.982 | 4.024 | 4.060 | 4.094 | 4.140 | 4.170 | 4.204 | 4.232 | 4.260 | 4.282 | 4.310 | 4.334 | 4.356 | 4.370 | 4.384 | 4.402 | 4.416 | 4.430 | 4.436 | 4.444 | 4.450 | 4.456 |
| 4 3/4" | 3.990 | 4.070 | 4.150 | 4.182 | 4.232 | 4.274 | 4.310 | 4.344 | 4.390 | 4.420 | 4.454 | 4.482 | 4.510 | 4.532 | 4.560 | 4.584 | 4.606 | 4.620 | 4.634 | 4.652 | 4.666 | 4.680 | 4.686 | 4.694 | 4.700 | 4.706 |
| 5" | 4.240 | 4.320 | 4.400 | 4.432 | 4.482 | 4.524 | 4.560 | 4.594 | 4.640 | 4.670 | 4.704 | 4.732 | 4.760 | 4.782 | 4.810 | 4.834 | 4.856 | 4.870 | 4.884 | 4.902 | 4.916 | 4.930 | 4.936 | 4.944 | 4.950 | 4.956 |
| 5 1/4" | 4.490 | 4.570 | 4.650 | 4.682 | 4.732 | 4.774 | 4.810 | 4.844 | 4.890 | 4.920 | 4.954 | 4.982 | 5.010 | 5.032 | 5.060 | 5.084 | 5.106 | 5.120 | 5.134 | 5.152 | 5.166 | 5.180 | 5.186 | 5.194 | 5.200 | 5.206 |
ASME SA213 T22 tube sizes
ASME SA213 T22 tube sizes
| NB | Size | OD | 40S | S40 | S60 | XS/80S | 5S | 10S | S10 | S20 | S80 | S100 | S120 | S140 | S160 | XXS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 90 | 3 1/2” | 101.6 | 5.7 | 5.74 | 8.08 | 2.1 | 3.1 | 8.08 | ||||||||
| 100 | 4” | 114.3 | 6 | 6.02 | 8.56 | 2.1 | 3.1 | 8.56 | 11.1 | 13.5 | 17.1 | |||||
| 125 | 5” | 141.3 | 6.6 | 6.55 | 9.53 | 2.8 | 3.4 | 9.53 | 12.7 | 15.9 | 19.1 | |||||
| 150 | 6” | 168.3 | 7.1 | 7.11 | 10.97 | 2.8 | 3.4 | 11 | 14.3 | 18.3 | 22 | |||||
| 200 | 8” | 219.1 | 8.2 | 8.18 | 10.3 | 12.7 | 2.8 | 3.8 | 6.4 | 12.7 | 15.1 | 19.3 | 20.6 | 23 | 22.2 | |
| 250 | 10” | 273.1 | 9.3 | 9.27 | 12.7 | 12.7 | 3.4 | 4.2 | 6.4 | 15.1 | 19.3 | 21.4 | 25.4 | 28.6 | 25.4 | |
| 300 | 12” | 323.9 | 9.5 | 10.3 | 14.3 | 12.7 | 4 | 4.6 | 6.4 | 17.5 | 21.4 | 25.4 | 28.6 | 33.3 | 25.4 | |
| 350 | 14” | 355.6 | 9.5 | 11.1 | 15.1 | 12.7 | 4 | 4.8 | 6.4 | 7.9 | 19.1 | 23.8 | 27.8 | 31.8 | 35.7 | |
| 400 | 16” | 406.4 | 9.5 | 12.7 | 16.7 | 12.7 | 4.2 | 4.8 | 6.4 | 7.9 | 21.4 | 26.2 | 31 | 36.5 | 40.5 | |
| 450 | 18” | 457.2 | 9.5 | 14.3 | 19.1 | 12.7 | 4.2 | 4.8 | 6.4 | 7.9 | 23.8 | 29.4 | 34.9 | 39.7 | 45.2 | |
| 500 | 20” | 508 | 9.5 | 15.1 | 20.6 | 12.7 | 4.8 | 5.5 | 6.4 | 9.5 | 26.2 | 32.5 | 38.1 | 44.5 | 50 | |
| 550 | 22” | 558.8 | 9.5 | 22.2 | 12.7 | 4.8 | 5.5 | 6.4 | 9.5 | 28.6 | 34.9 | 41.3 | 47.6 | 54 | ||
| 1/8” | 10.29 | 1.73 | 1.2 | 2.41 | ||||||||||||
| 1/4” | 13.72 | 2.24 | 1.7 | 3.02 | ||||||||||||
| 3/8” | 17.15 | 2.31 | 1.7 | 3.2 | ||||||||||||
| 15 | 1/2” | 21.34 | 2.8 | 2.77 | 3.73 | 1.7 | 2.1 | 3.73 | 4.78 | 7.47 | ||||||
| 20 | 3/4” | 26.67 | 2.9 | 2.87 | 3.91 | 1.7 | 2.1 | 3.91 | 5.56 | 7.82 | ||||||
| 25 | 1” | 33.4 | 3.4 | 3.38 | 4.55 | 1.7 | 2.8 | 4.55 | 6.35 | 9.09 | ||||||
| 32 | 1 1/4” | 42.16 | 3.6 | 3.56 | 4.85 | 1.7 | 2.8 | 4.85 | 6.35 | 9.7 | ||||||
| 40 | 1 1/2” | 48.26 | 3.7 | 3.68 | 5.08 | 1.7 | 2.8 | 5.08 | 7.14 | 10.2 | ||||||
| 50 | 2” | 60.33 | 3.9 | 3.91 | 5.54 | 1.7 | 2.8 | 5.54 | 9.74 | 11.1 | ||||||
| 65 | 2 1/2” | 73.03 | 5.2 | 5.16 | 7.01 | 2.1 | 3.1 | 7.01 | 9.53 | 14 | ||||||
| 80 | 3” | 88.9 | 5.5 | 5.49 | 7.62 | 2.1 | 3.1 | 7.62 | 11.1 | 15.2 | ||||||
| 600 | 24” | 609.6 | 9.5 | 17.5 | 24.6 | 12.7 | 5.5 | 6.4 | 6.4 | 9.5 | 31 | 38.9 | 46 | 52.4 | 59.5 | |
| 650 | 26” | 660.4 | 9.5 | 12.7 | 7.9 | 13 | ||||||||||
| 700 | 28” | 711.2 | 9.5 | 12.7 | 7.9 | 13 | ||||||||||
| 750 | 30” | 762 | 9.5 | 12.7 | 6.4 | 7.9 | 7.9 | 13 | ||||||||
| 800 | 32” | 812.8 | 9.5 | 17.5 | 12.7 | 7.9 | 13 | |||||||||
| 850 | 34” | 863.6 | 9.5 | 17.5 | 12.7 | 7.9 | 13 | |||||||||
| 900 | 36” | 914.4 | 9.5 | 19.1 | 12.7 | 7.9 | 13 |
SA 213 T22 material wall thickness
SA 213 T22 material wall thickness
| Outside Dia (OD) mm | Standard Wall Thickness (mm) |
|---|---|
| 31.8 | 3.18 |
| 38.1 | 3.56 |
| 19.05 | 2.11 |
| 25.4 | 2.77 |
| 44.45 | 3.68 |
| 50.8 | 4.78 |
| 63.5 | 5.16 |
| 76.2 | 5.56 |

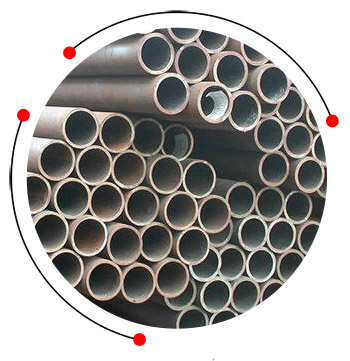

Application of SA213 T22 cold drawn tube
- Pulp & Paper Industry
- Oil and Gas Industry
- Nuclear Power Plant Industry
- Chemical Industry
- Research & Development
- Petrochemical Industry
A213 T22 welded tube elastic modulus
A213 T22 welded tube elastic modulus
| Poisson's ratio | 0.29 |
| Elastic modulus | 200 - 215 GPa |
Alloy steel T22 tube heat treatment
Alloy steel T22 tube heat treatment
| Grade | Tempering Temperature | Heat Treatment Methods |
|---|---|---|
| T22 | Above 675°C | Isothermal Annealed, Normalize and Temper |
Price list of SA213 T22 tube
Price list of SA213 T22 tube
| Description | Price in USD | Price in Kilogram (INR) |
|---|---|---|
| Sa 213 ASTM A213 T22 IBR Tubes, size 1 inch, 2 inch | $ 2.86 | ₹ 245 |
| Alloy Steel SA213 T22 SMLS Tube, Size: 24 Inch | $ 26.86 | ₹ 2,300 |
ASTM A213 T22 Round tube weight chart
ASTM A213 T22 Round tube weight chart
| OD (mm) | Weight (kg/m) | Wall Thickness (mm) |
|---|---|---|
| 25.4 | 1.18 | 2.0 |
| 38.1 | 2.52 | 2.5 |
| 50.8 | 4.66 | 3.0 |
| 63.5 | 6.85 | 3.5 |
| 76.2 | 9.29 | 4.0 |
| 88.9 | 12.00 | 4.5 |
| 101.6 | 15.10 | 5.0 |
SA 213 GR T22 Hot Finished tube hardness
SA 213 GR T22 Hot Finished tube hardness
| Rockwell B | 85 HRB Max |
| Brinell | 163 HB Max |
| Vickers | 170 HV Max |
SA 213 T22 tube surface treatment
- Galvanized
- color coated
- PE/PVC/PP coated
- Anti rust varnished
- Black painted
- Anti rust oiled
SA213 T22 temperature range
SA213 T22 temperature range
| Material | Minimum Temperature (°C) | Maximum Temperature (°C) |
|---|---|---|
| SA213 T22 | 20 | 590 |
