Spark Steel offers high-quality Stainless Steel 317L Pipes (WNR 1.4438), engineered for exceptional performance in high-corrosion environments across industries such as oil and gas, chemical processing, marine, and power generation. Available in seamless, ERW, EFW, and welded forms, these pipes come in various shapes (round, square, rectangular) and schedules (including SCH-10, SCH-40, SCH-80, and SCH-160). Grade 317L features a low carbon content for improved resistance against intergranular corrosion without requiring post-weld annealing, alongside a robust chemical composition of 18.0–20.0% chromium, 11.0–15.0% nickel, and 3.0–4.0% molybdenum. Backed by comprehensive testing procedures—such as hydrostatic, ultrasonic, and impact testing—Spark Steel ensures premium durability and adherence to international ASTM standards.
Specification of Stainless steel 317L pipe
Specification of Stainless steel 317L pipe
| SPECIFICATION | DETAILS |
|---|---|
| ERW pipe sizes | Wall thk: 12.7 - 0.8 mm, OD: 6.35 - 114.3 mm, Length : 26 meter |
| Welded pipe sizes | OD: 36 to 1/4 inch, Wall Thickness: 20 to 1 mm |
| Seamless pipe sizes | OD: 12 to 1/8 inches, Wall Thk : 12.7 to 0.6 mm |
| Manufacturing process | Cold Formed, Hot Formed, Precision Rolled |
| Shapes | Round, Square, Rectangular |
| Schedule | SCH-10, SCH-5, SCH-40, SCH-80, SCH-XS, SCH-XXS, SCH-40S, SCH160, SCH-10S |

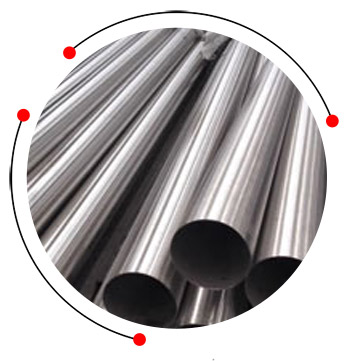

SS 317L seamless pipe sizes
SS 317L seamless pipe sizes
| Outer Diameter | Nominal Pipe Size | Schedule 5S | Schedule 40S | Schedule 80S | Schedule 10S |
|---|---|---|---|---|---|
| 114.3 | 4 | 2.11 | 6.02 | 8.56 | 3.05 |
| 141.3 | 5 | 2.77 | 6.55 | 9.53 | 3.4 |
| 168.28 | 6 | 2.77 | 7.11 | 10.97 | 3.4 |
| 219.08 | 8 | 2.77 | 8.18 | 12.7 | 3.76 |
| 273.05 | 10 | 3.4 | 9.27 | 12.7 | 4.19 |
| 323.85 | 12 | 3.96 | 9.53 | 12.7 | 4.57 |
| 355.6 | 14 | 3.96 | 9.53 | 12.7 | 4.78 |
| 406.4 | 16 | 4.19 | 9.53 | 12.7 | 4.78 |
| 457.2 | 18 | 4.19 | 9.53 | 12.7 | 4.78 |
| 508 | 20 | 4.78 | 9.53 | 12.7 | 5.54 |
| 13.72 | 1/4 | 2.24 | 3.02 | 1.65 | |
| 17.15 | 3/8 | 2.31 | 3.2 | 1.65 | |
| 21.34 | 1/2 | 1.65 | 2.77 | 3.73 | 2.11 |
| 26.67 | 3/4 | 1.65 | 2.87 | 3.91 | 2.11 |
| 33.4 | 1 | 1.65 | 3.38 | 4.55 | 2.77 |
| 42.16 | 1.25 | 1.65 | 3.56 | 4.85 | 2.77 |
| 48.26 | 1.5 | 1.65 | 3.68 | 5.08 | 2.77 |
| 60.33 | 2 | 1.65 | 3.91 | 5.54 | 2.77 |
| 73.03 | 2.5 | 2.11 | 5.16 | 7.01 | 3.05 |
| 88.9 | 3 | 2.11 | 5.49 | 7.62 | 3.05 |
| 101.6 | 3.5 | 2.11 | 5.74 | 8.08 | 3.05 |
| 558.8 | 22 | 4.78 | 5.54 | ||
| 609.6 | 24 | 5.54 | 9.53 | 12.7 | 6.35 |
| 660.4 | 26 | ||||
| 711.2 | 28 | ||||
| 762 | 30 | 6.35 | 7.92 |
317L Stainless steel pipe weight chart
317L Stainless steel pipe weight chart
| Lbs./Ft. | Wall | Working PSI | ID | Bursting PSI | |
| 3/4” | .4818 | .065 | 2,925 | .620 | 11,700 |
| (.750”) | .5990 | .083 | 3,735 | .584 | 14,940 |
| .6773 | .095 | 4,275 | .560 | 17,100 | |
| .7560 | .109 | 4,905 | .532 | 19,620 | |
| .8181 | .120 | 6,000 | .510 | 24,000 | |
| 1/8” | .0294 | .028 | 7,560 | .069 | 30,240 |
| (.125”) | .0341 | .035 | 9,450 | .055 | 37,800 |
| 1/4” | .0814 | .035 | 5,833.25 | .180 | 23,333 |
| (.250”) | .1066 | .049 | 6,615 | .152 | 26,460 |
| .1301 | .065 | 8,775 | .120 | 35,100 | |
| 3/8” | .1288 | .035 | 3,150 | .305 | 12,600 |
| (.375”) | .1728 | .049 | 4,410 | .277 | 17,640 |
| .2180 | .065 | 5,850 | .245 | 23,400 | |
| 1/2” | .1761 | .035 | 2,362.5 | .430 | 9,450 |
| (.500”) | .2391 | .049 | 3,307.5 | .402 | 13,230 |
| .3059 | .065 | 4,387.5 | .370 | 17,550 | |
| .3745 | .083 | 5,602.5 | .334 | 22,410 | |
| 1” | .6576 | .065 | 2,193.75 | .870 | 8,775 |
| (1.000”) | .8235 | .083 | 2,801.25 | .834 | 11,205 |
| .9302 | .095 | 3,206.25 | .810 | 12,825 | |
| 1.051 | .109 | 3,678.75 | .782 | 14,715 | |
| 1.143 | .120 | 4,050 | .760 | 16,200 | |
| 1.256 | .134 | 4,522.5 | .732 | 18,090 |
317L SS pipe price
317L SS pipe price
| Description | Price in USD | Price per kg (INR) |
|---|---|---|
| 4mm - 500mm Round 317L SS Pipe | $ 3.09 | ₹ 265 |
| 317L Stainless Steel Pipe, Size: 1/2 inch | $ 4.09 | ₹ 350 |
| 3 Inch 317L SS Pipes, 3 meter, Thickness: 5 Mm | $ 1.63 | ₹ 140 |

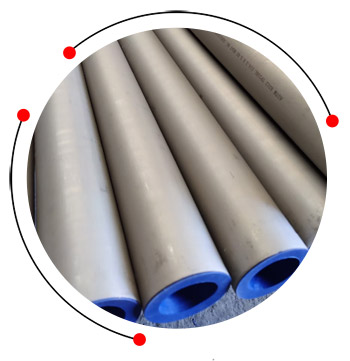

WNR. 1.4438 ERW pipes application
- Mining
- Oil and gas
- Chemical and petrochemical
- Pharmaceutical
- Power generation
- Heat Exchangers
- Food and beverage
- Pulp and Paper Industry
- Process piping
- Fertilizers
- Renewable energy
- Water/waste
- Sea Water Equipment
- Off-Shore Oil Drilling Companies

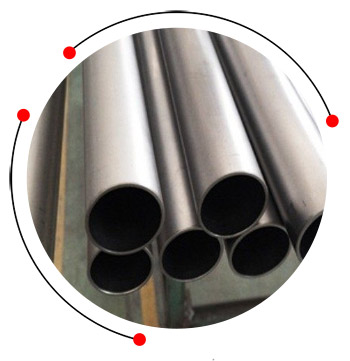

Stainless Steel Grade 317L round pipe hsn code
Stainless Steel Grade 317L round pipe hsn code
| Material | HS code |
|---|---|
| SS 317L | 73061100 |
317L pipe chemical composition
317L pipe chemical composition
| Grade | Mn | C | Si | S | P | Ni | Cr | Mo | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 317L | min. | – | – | – | – | – | 11.0 | 18.0 | 3.00 | – |
| max. | 2.0 | 0.03 | 0.75 | 0.03 | 0.040 | 15.0 | 20.0 | 4.00 | – | |

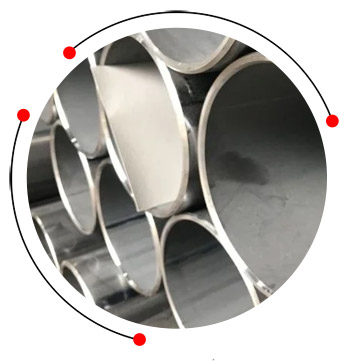

317L SS EFW pipe mechanical properties
317L SS EFW pipe mechanical properties
| Grade | Yield Strength 0.2% Proof (MPa) min | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 317L | 205 | 515 | 35 | 95 | 217 |
AISI 317L square pipe physical properties
AISI 317L square pipe physical properties
| Grade | Electrical Resistivity (n.m) | Density (kg/m3) | Thermal Conductivity (W/m.K) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Specific Heat 0-1000C (J/kg.K) | |||
|---|---|---|---|---|---|---|---|---|---|
| at 1000C | at 5000C | 0-1000C | 0-3150C | 0-5380C | |||||
| 317L | 720 | 8000 | 16.2 | 21.5 | 193 | 17.2 | 17.8 | 18.4 | 500 |
ASME SA312 TP 317L polished pipes equivalent grade
ASME SA312 TP 317L polished pipes equivalent grade
| Grade | Euronorm | UNS No | Old British | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| No | Name | BS | En | ||||
| 317L | 1.4438 | – | S31703 | – | – | – | – |

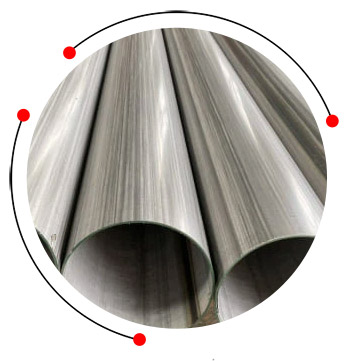

ASTM A312 TP317L pipes tolerance
ASTM A312 TP317L pipes tolerance
| Wall Tolerance | Tolerance | |
| .500”–1.5” excl | ± 10% | ± .005” |
| ≤ .500” | ± 10% | ± .005" |
Thermal expansion of Stainless steel 317L pipe
Thermal expansion of Stainless steel 317L pipe
| Per °C | Temperature, °C | Per °F | Temperature, °F |
| 18 | 30-400 | 10 | 86-800 |
| 18 | 30-500 | 10 | 86-1000 |
| 16.5 | 30-100 | 9.5 | 86-200 |
| 17 | 30-200 | 9.5 | 86-400 |
| 17.5 | 30-300 | 10 | 86-600 |
| 18 | 30-600 | 10.5 | 86-1200 |
| 18.5 | 30-700 | 10.5 | 86-1400 |
SS 317L pipe heat capacity
SS 317L pipe heat capacity
| Temperature, °C | J/kg °C | Btu/lb °F | Temperature, °F |
| 300 | 525 | 0.13 | 600 |
| 400 | 540 | 0.13 | 800 |
| 20 | 485 | 0.11 | 68 |
| 100 | 500 | 0.12 | 200 |
| 200 | 515 | 0.12 | 400 |
| 500 | 555 | 0.13 | 1000 |
| 600 | 575 | 0.14 | 1100 |
317L stainless steel pipe testing
- Hydrostatic Tests
- CVN Impact Testing
- Visual Inspection
- Eddy Current Test
- TPP
- Metalography Test
- DP / MP / RF ECT Testing
- Rockwell & BHN Hardness Testers
- Ultrasonic Testing
SS 317L seamless pipe thermal conductivity
SS 317L seamless pipe thermal conductivity
| W/m °C | Temperature, °C | Btu/ft h °F | Temperature, °F |
| 18 | 300 | 10.5 | 600 |
| 20 | 400 | 11.5 | 800 |
| 14 | 20 | 8 | 68 |
| 15 | 100 | 8.5 | 200 |
| 17 | 200 | 10 | 400 |
| 21 | 500 | 12.5 | 1000 |
| 23 | 600 | 13 | 1100 |
Stainless steel 317 vs 317L pipe
Stainless steel 317 vs 317L pipe
| Property | 317L Stainless Steel | 317 Stainless Steel |
|---|---|---|
| Chromium (Cr) Content | 18.0 - 20.0% | 18.0 - 20.0% |
| Molybdenum (Mo) Content | 3.0 - 4.0% | 3.0 - 4.0% |
| UNS Number | S31703 | S31700 |
| Carbon (C) Content | 0.03% max | 0.08% max |
| Nickel (Ni) Content | 11.0 - 15.0% | 11.0 - 15.0% |
| Tensile Strength | ≥ 515 MPa | ≥ 515 MPa |
| Hardness (Brinell HB) | ≤ 217 | ≤ 217 |
| Weldability | No annealing needed | Requires post-weld annealing |
| Operating Temperature | Up to 870°C | Up to 870°C |
| Applications | used in high-corrosion environments | marine environments, Chemical processing, power plants |
