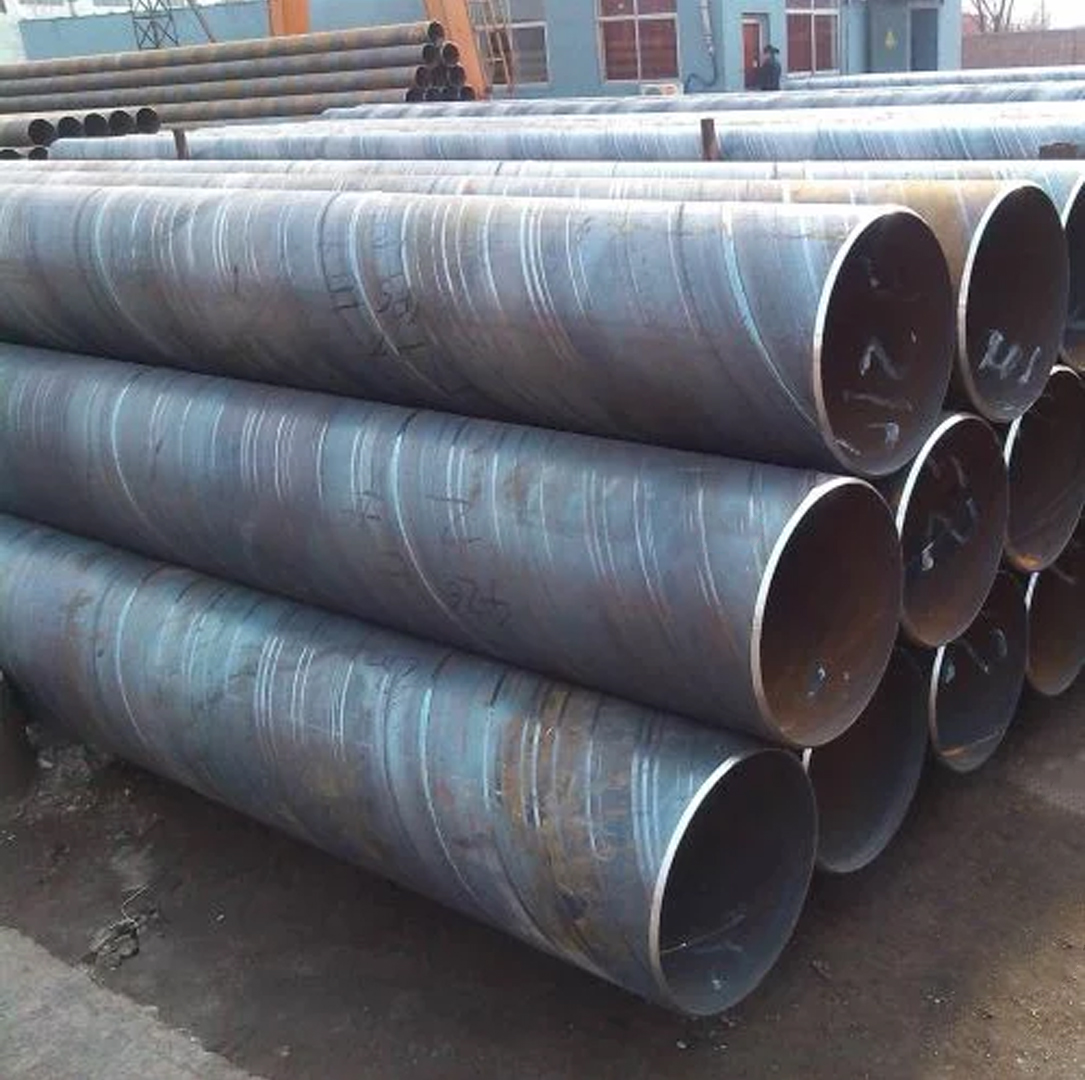

Spiral Welded Pipe
Spiral Welded Pipe is a steel pipe manufactured by forming steel strip or plate into a cylindrical shape along a spiral path and joining the edges through a continuous welding process. Spiral welded steel pipes are commonly associated with large-diameter pipeline, water transmission, sewage, infrastructure, industrial, and selected oil and gas applications.
Spiral welded pipe is also known as spiral welded steel pipe, spiral seam welded pipe, or, depending on the welding process, SSAW Pipe or HSAW Pipe.
The correct pipe grade, dimensions, welding process, applicable standard, testing, coating, and inspection requirements should be established according to the intended application and project specification.
What Is a Spiral Welded Pipe?
A spiral welded pipe is produced by continuously forming steel strip or plate into a spiral cylindrical shape. The adjoining edges are then welded to create the pipe.
Unlike a seamless pipe, a spiral welded pipe has a visible spiral or helical weld seam.
The manufacturing concept allows manufacturers to produce large-diameter steel pipes using appropriately sized steel strip or plate.
Common terminology includes:
- Spiral Welded Pipe
- Spiral Welded Steel Pipe
- Spiral Seam Welded Pipe
- Spiral Welded Steel Tube
- Spiral SAW Pipe
- SSAW Pipe
- HSAW Pipe
- MS Spiral Welded Pipe
The exact terminology used should follow the product specification and manufacturing process.
How Is Spiral Welded Pipe Manufactured?
A typical manufacturing process includes:
- Selection of steel strip or plate
- Raw material inspection
- Chemical composition verification
- Mechanical property verification
- Edge preparation
- Steel strip forming
- Spiral/helical forming
- Alignment of pipe edges
- Internal welding
- External welding
- Weld inspection
- Pipe cutting
- End finishing
- Dimensional inspection
- Hydrostatic testing and/or NDT
- Surface inspection
- Coating or lining where specified
- Marking and traceability
- Final inspection
- Documentation
The exact process depends on the pipe specification, steel grade, diameter, wall thickness, welding equipment, and project requirements.
What Is Spiral Welded Steel Pipe?
Spiral Welded Steel Pipe is the full product description commonly used for steel pipe manufactured with a spiral weld seam.
The steel strip follows a helical path during forming, and the adjoining edges are welded continuously.
Spiral welded steel pipes are particularly relevant where large-diameter pipe is required, subject to manufacturing capability and the applicable standard.
MS Spiral Welded Pipes
MS Spiral Welded Pipes generally refers to spiral welded pipes made from mild steel or carbon steel in commercial terminology.
However, "MS" is a broad commercial description rather than a complete technical specification.
A proper procurement requirement should identify:
- Steel grade
- Product standard
- Outside diameter
- Wall thickness
- Length
- Welding requirements
- Testing requirements
- Coating
- Inspection
- Documentation
For example, instead of specifying only "MS spiral welded pipe," a project should provide the applicable grade and standard.
Key Features of Spiral Welded Pipe
Important characteristics include:
- Spiral welded construction
- Helical weld seam
- Steel strip or plate-based manufacturing
- Availability in large diameters
- Different wall thickness options
- Different steel grades
- Suitable for various pipeline applications
- Can be supplied with corrosion-protection systems
- Can undergo hydrostatic testing
- NDT can be performed where specified
- Material traceability can be maintained
- Project-specific dimensions can be considered
Actual performance depends on the selected material, pipe dimensions, weld quality, applicable standard, coating, installation conditions, and service requirements.
Spiral Welded Pipe Applications
Spiral welded pipes can be considered for a range of applications.
Water Transmission
Common applications include:
- Raw water pipelines
- Water transmission systems
- Municipal water infrastructure
- Industrial water pipelines
- Water treatment projects
Sewage and Wastewater
Applications may include:
- Sewage pipelines
- Wastewater transmission
- Municipal drainage infrastructure
- Treatment plant pipelines
Industrial Pipelines
Spiral welded pipe may be considered for:
- Process-support pipelines
- Utility pipelines
- Industrial water systems
- Cooling-water systems
- General infrastructure
The applicable standard must be confirmed for the particular service.
Oil and Gas
Spiral welded steel pipe manufactured to an applicable line-pipe specification may be considered for selected oil and gas pipeline applications.
Requirements can include:
- Applicable API/ISO standard
- Steel grade
- Dimensional requirements
- Weld quality
- NDT
- Hydrostatic testing
- Coating
- Impact requirements
- Traceability
The suitability of a particular pipe must be established against the project specification.
Slurry Transportation
Spiral welded pipe may be considered for certain slurry applications where the selected material, wall thickness, internal protection, and design conditions are appropriate.
Infrastructure Projects
Applications can include:
- Large-diameter utility pipelines
- Infrastructure projects
- Pipeline crossings
- Water infrastructure
- Certain structural applications
Structural use should follow the relevant structural specification rather than a generic pipe standard.
Spiral Welded Pipe for Water Pipeline
Spiral welded steel pipe is frequently associated with large-diameter water transmission systems.
When selecting pipe for water service, consider:
- Design pressure
- Operating pressure
- Pipe diameter
- Wall thickness
- Water chemistry
- Internal lining
- External coating
- Jointing system
- Installation conditions
- Corrosion protection
The pipe and coating/lining should be selected as part of the complete pipeline system.
Spiral Welded Pipe for Oil and Gas
For oil and gas applications, the spiral welded pipe should comply with the applicable line-pipe specification and project requirements.
Important considerations include:
- Product standard
- Steel grade
- OD
- Wall thickness
- Design pressure
- Operating temperature
- Toughness requirements
- Weld inspection
- NDT
- Hydrostatic testing
- Coating
- Material traceability
For critical applications, the engineering specification should take precedence over generic product descriptions.
Spiral Welded Pipe Dimensions
Spiral welded pipe dimensions are normally defined by:
- Outside diameter
- Wall thickness
- Length
- Pipe-end configuration
The required wall thickness depends on factors such as:
- Internal pressure
- External loads
- Steel grade
- Corrosion allowance
- Installation method
- Temperature
- Design code
- Service conditions
Why Consider Spark Steel?
For spiral welded pipe procurement, Spark Steel can help evaluate requirements around:
- Steel grade
- Applicable standard
- Dimensions
- Welded construction
- Testing
- NDT
- Hydrostatic testing
- Coating
- Inspection
- Material traceability
- Documentation
- Delivery requirements
The goal is to establish a clear technical specification before procurement.
