Grade B PSL1 and PSL2 Material at best price, API 5L Grade B ERW Pipe Manufacturer in India

API 5L Grade B Carbon Steel Welded Pipe Weight, Dimensions & Sizes, Schedule chart

Grade B API Steel Pipe is produced in PSL1 & PSL2, This material is a good and economical solution for transportation of Oil, Gas & Water on High temperature, API 5L Gr.B ERW Pipe comes in size from 1/2" NB - 24" NB, Gr.B SAW and LSAW Pipe Size starts from 16" NB - 100" NB and Gr.B Seamless Pipe comes in Size 60" NB to 1/2" NB, however we maintain good stock of large diameter pipes also in Grade B, Spark Steel is PED approved and NORSOK certified Manufacturer of API 5L Grade b Pipe in India. We started production of Grade b welded pipe in the year 2008 and for the requirement of Seamless Pipe, we are associated with India's largest and reputed mills like Jindal Saw, Indian Seamless (ISMT) and Maharashtra Seamless Ltd. (MSL). We Maintaining safety stock of material in large quantity and in various sizes and thickness and supply to all over the world with Mill TC and with complete documents.

We also import API 5L Grade B Seamless Pipe from Japan and Reputed Manufacturers in Europe. Types of API 5l Grade b in our stock are seamless, ERW, welded, fabricated and EFW in Single Random, Double Random & beveled end, Ready stock of API 5L Grade B Carbon Steel Pipe in Length 3 Meter to 18 Meter and in Standards like ASTM A53 GR. A/B/C, A106, A179, A530, A530M, A671, and A672. Grade B Material is also a better choice for sour service applications, so it is known as sour service OCTG pipe. Spark Steel is Africa's favorite Supplier of API 5L Grade b ERW pipe. Currently, we are supplying Grade b pipe and other piping accessories like API 5L fittings and Flanges in Nigeria, Mozambique, Angola, Algeria, Gabon, Libya, South Sudan, Congo, Guinea, Tunisia and many more. Ask for our client list in West Africa & South Africa for your reference and Quality of Pipes & Tubulars.

API 5L grade B line pipe

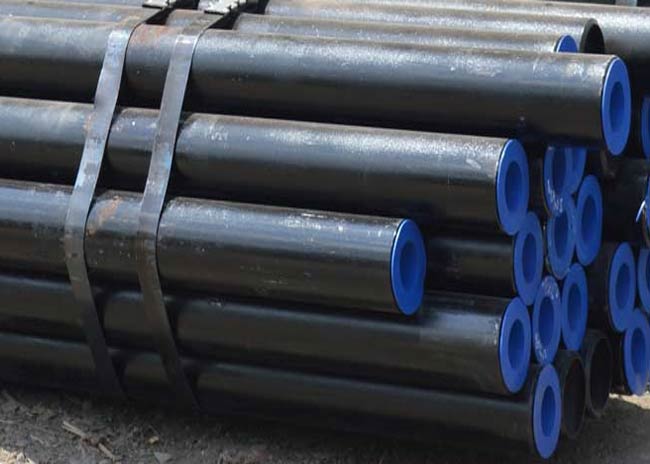

API 5L Grade B Seamless Pipe

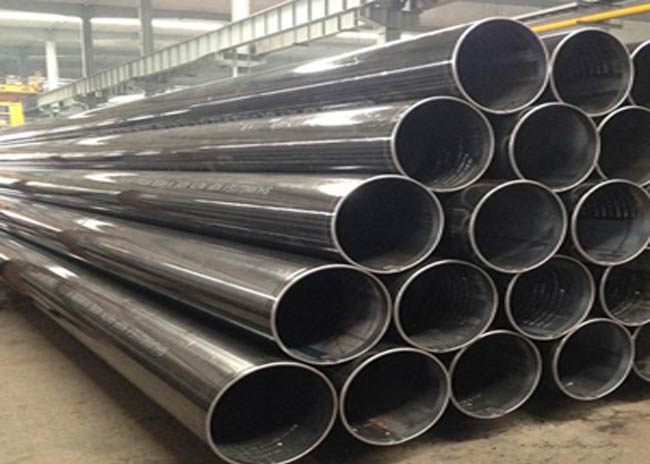

API 5L Grade B ERW pipe

Spark Steel provide services like painting on Pipe, Threading (Internal & External) and as per our customer requirement, If you are looking API 5L Grade B Line Pipe of Renowned Factory in India or European Make, Japanese make at genuine price, call or mail us once for updated price list Brand wise of Grade b Api Steel Pipe in PSL1 & PSL2, SMLS & welded We have a wide stock of EN 10208 part 1 and 2, Our Sales team help you to provide complete & very important information about Carbon steel materials you need for your project and correct and accurate price mill wise.

You may get your required Length and Dimensions of Schedule 40 & SCH 80 Grade b pipe in our ready stock which will save your cost and shipping time. So, call now for our Stocklist including Sizes, weight, thickness and Schedule chart of API 2W / 2H. EN 10225. Seamless Hollow Sections & Tubular Products. If you have any query in Grades of API Grade b material like their pressure rating, yield strength, composition, specification, Weight chart, Schedule chart of x42, x46,x52,x56, x60,x65,x70 & X80.

Check our Price List of Gr. B Seamless and ERW pipe with all documents before buying Material from India or China. Large selection in L245 /Grade b PSL1, L245/Grade b Psl2 & L290/ Grade b Psl2 Material, Equivalent Grades of API 5L Grade b are ASTM A36, A53 & A106 grade b. Check Our Price Per Kg In India of EN 10025-2, S235-JR, S235-JO & S235-J2 material. API 5L Gr. b Line Pipe comes in LSAW & DSAW welded forms, LSAW is longitudinal submerged arc welded pipe and DSAW is Double Submerged arc Welded Pipe. We only stock certified material API5L /ISO 3183: PSL1 and PSL2 Grade: Gr.B/BR/BN/BQ/BM

API 5L grade b erw pipe suppliers, API 5l grade b line pipe price list, gr b dsaw pipe Stockist in Mumbai, India

Table Of Content

API 5L Grade B Pipe specification

API 5L Grade B pipe material

API 5l Gr B PSL 2 material

API 5L Grade B Pipe Pressure Rating

API 5L Gr B ERW Pipes Price List

API 5L Grade B Pipe Weight Chart

API 5L Grade B Pipe specification

Pipe End Bevel, Screwed, Plain, Threaded

API Grade B Line Pipe Length Single Random, Double Random & Required Length, Custom Size - 12 Meter lengths

Product Specification Level (PSL) API 5L GrB PSL 1
API 5L GrB PSL 2

Technique Hot rolling; cold drawing; NDT test; UT test; Hydrostatic Tester

Testing and Inspection Reports NABL Approved Lab, EN 10204 3.1, Mill TC EN 10204 3.1, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, Destructive Test Report, Non Destructive Test Reports, Chemical and Mechanical Reports, India Boiler Regulations (IBR) Test Certificate

Packing API 5L GR. B Pipe Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests

Standard API 5L standard Grade B steel grade seamless steel pipe/tube (Specification for Line Pipe - ANSI/API specification 5L - 44th Edition, October 1, 2007)

API 5L GrB Pipes Type Seamless / ERW / Welded / Fabricated / CDW

Sizes Nominal Pipe Size 1/2" to 48 " O.D.
Wall Thickness - Schedule 10 through 160, XS, XXS, STD.

Origin Indian Origin, Japanese Origin, US Origin, Korean Origin, European Origin, Ukraine Origin, Russian Origin

Thickness SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules

Applications Steel, Sugar, Boiler Equipments, Oil Refineries, Petrochemicals, Power Generation (Nuclear/Thermal), Pressure Vessels and General Engineering Purposes

Finishes FBE Dual, 3LPE, 3LPP, Coal Tar, Bare, Oiled, Mill Varnish, Galv, FBE, Concrete Coating and Tape Wrap.End Finishes:Beveled, Square Cut, Threaded & Coupled.

Application & uses Suitable for water, oil, Conveying gas, and other liquefied media.

Other manufacturers of API GrB Seamless steel pipe MSL, ISMT, USL, JSL, BAO, Lontrin, SMTM, TNRS, V&M and Wuxi

HS Code

730410 Line pipe of a kind used for oil or gas pipelines: Of iron or nonalloy steel:

730420 Casing, tubing and drill pipe, of a kind used in drilling for oil or gas: Casing:

730459 Other Tubes, Pipes and Hollow Profiles, of Other Alloy Steel,

730490 Other Tubes, Pipes and Hollow Profiles, Seamless, of Iron or Steel

730431 Tubes, Pipes and Hollow Profiles, of Iron or Non-alloy Steel, Cold-drawn or cold-rolled (cold-reduced)

730439 Other Tubes, Pipes and Hollow Profiles, of Iron or Non-alloy Steel

730441 Tubes, Pipes and Hollow Profiles, of stainless steel , Cold-drawn or cold-rolled (cold reduced)

730449 Other Tubes, Pipes and Hollow Profiles, of Stainless Steel, Seamless

730451 Tubes, Pipes and Hollow Profiles, of Other Alloy Steel, Cold-drawn or cold-rolled (cold reduced)

BS EN 10208-2:2009 Steel pipes for pipelines for combustible fluids. Technical delivery conditions. Pipes of requirement class B. Suitable to use in maximum operating pressure over 16 bar.

Value added service

Draw & Expansion as per required Size & Length

Fusion Bond Epoxy

ARO

3LPE

Tar Epoxy

Heat Treatment

Bending

Galvanizing

Annealed

Sand Blasting

Machining etc.

API 5L Grade B Pipe Material

Grade L360 / X52 360 MPa (52.2 ksi) YS
460 MPa (66.7 ksi) UTS

Grade L245 / B 245 MPa (35.5 ksi) YS
415 MPa (60.2 ksi) UTS

Grade L290 / X42 290 MPa (42.1 ksi) YS
415 MPa (60.2 ksi) UTS

Grade L390 / X56 390 MPa (56.6 ksi) YS
490 MPa (71.1 ksi) UTS

Grade L415 / X60 415 MPa (60.2 ksi) YS
520 MPa (75.4 ksi) UTS

Grade L450 / X65 450 MPa (65.3 ksi) YS
535 MPa (77.6 ksi) UTS

Grade L175 / A25 175 MPa (25.4 ksi) YS
310 MPa (45.0 ksi) UTS

Grade L210 / A 210 MPa (30.5 ksi) YS
335 MPa (48.6 ksi) UTS

Grade L320 / X46 320 MPa (46.4 ksi) YS
435 MPa (63.1 ksi) UTS

Grade L485 / X70 485 MPa (70.3 ksi) YS
570 MPa (82.7 ksi) UTS

Grade L555 / X80

Grade X100 and X120

API 5l Gr B PSL 2 material Distributor in India

SMYS API 5L Grade B Pipe Suppliers

API 5L Gr B PSL2 Pipe

API 5L Gr B Schedule 40 Pipe

API 5L Grade B material

API 5L Grade B PSL1 Pipe

API 5L Grade B SAW Pipe

API 5L Gr B Seamless Pipes

API 5L Grade B DSAW Pipe

API 5l grade b sour service

API 5l grade b carbon steel pipe

API 5L Grade B Welded Pipe

API 5L grade b erw pipe Suppliers

API 5L Grade B Line Pipe

API 5L Grade B Carbon Steel Seamless Pipe

API 5L B Pipe Sch 80

API 5L Gr B PSL1 Pipe

API 5L Grade B PSL2 meaning

Product Specification Levels (PSL):

PSL1 Not Impact Tested

PSL2 For Grades ≤ L415 / X60
Impact Tested at 0°C (32°F)
to Meet Minimum 27J (20 ft-lb)
for ≤ 762mm OD (NPS 30),
or Minimum 40J (30 ft-lb)
for pipe > 762mm OD (NPS 30).

(Refer to API 5L for testing of
Grades > L415 / X60)
Weld Metal and HAZ to meet
Minimum 27J (20 ft-lb)
for pipe < 1422mm OD (NPS 56).

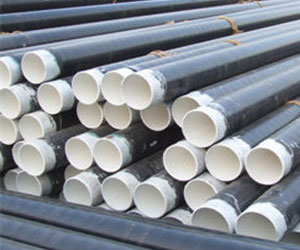

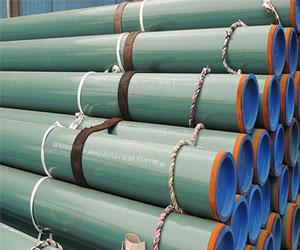

API 5L Grade B Pipe Coating

Food Grade Epoxy Coatings Phenolic Epoxy Coating

Any Liquid Epoxy Coating Glass Flake Coatings

Fusion Bonded Epoxy Coating (FBE Coating) 3LPE Coating

Elastomeric Polyurethane Coating PTFE Coating

Halar Coatings Internal & External Coating

API 5L Grade B Pipe Chemical Composition

API 5L grade B carbon steel line pipe, API 5L Grade B Welded Pipes Chemical Composition

Chemical Composition %

PSL1

PSL2

Grade

C (Max.)

Mn(Max.)

P(Max.)

S(Max.)

C (Max.)

Mn(Max.)

P(Max.)

S(Max.)

A

0.22

0.90

0.03

0.03

0.22

1.20

0.025

0.015

B

0.26

1.20

0.03

0.03

0.22

1.30

0.025

0.015

X42

0.26

1.30

0.03

0.03

0.22

1.40

0.025

0.015

X46

0.26

1.40

0.03

0.03

0.22

1.40

0.025

0.015

X52

0.26

1.40

0.03

0.03

0.22

1.40

0.025

0.015

X56

0.26

1.40

0.03

0.03

0.22

1.40

0.025

0.015

X60

0.26

1.40

0.03

0.03

0.22

1.45

0.025

0.015

X65

0.26

1.45

0.03

0.03

0.22

1.65

0.025

0.015

X70

0.26

1.65

0.03

0.03

0.22

1.85

0.025

0.015

API 5L Grade B Line Pipes Tolerance Specifications

Tolerance on dimension

OD Tolerance

WT Tolerance

A, B

X42 ~ X70

D<60.3mm

+0.41/-0.40mm

D<73mm

+20%/-12.5%

D<73mm

+15%/-12.5%

D>=60.3mm

+0.75/-0.40mm

D>=73mm

+15%/-12.5%

D>=73mm

+15%/-12.5%

API 5L Grade b pipe pressure rating

Pressure (kPa) and temperature (°C) ratings of API 5L GR. B Carbon Steel Pipes - temperatures ranging -29 °C – 450 °C

Grade B API 5L Pipe allowable stress and Maximum Allowable Pressure (kPa)

Nominal Size
(mm) Schedule no. Wall Thickness
(mm) Temperature (oC)

-29 – 38 205 260 350 370 400 4301) 450

Maximum Allowable Stress (MPa)

137.8 137.8 130.2 117.1 115.7 89.6 74.4 59.9

15 STD 40 2.77 34416 34416 32528 29255 28910 22372 18589 14972

XS 80 3.73 48092 48092 45466 40878 40396 31260 25969 20918

160 4.78 62830 62830 59378 53404 52777 40837 33929 27333

XXS 7.47 98245 98245 92836 83507 82522 63857 53053 42739

20 STD 40 2.87 28070 28070 26526 23860 23578 18245 15158 12209

XS 80 3.91 39418 39418 37247 33506 33106 25617 21283 17142

160 5.56 58152 58152 54955 49429 48843 37799 31398 25293

XXS 7.82 83107 83107 78539 70643 69809 54024 44881 36152

25 STD 40 3.38 26251 26251 24804 22310 22048 17060 14173 11417

XS 80 4.55 36283 36283 34285 30862 30474 23584 19595 15785

160 6.35 52481 52481 49594 44606 44082 34112 28339 22827

XXS 9.09 77030 77030 72793 65476 64704 50070 41595 33506

32 STD 40 3.56 21614 21614 20421 18369 18155 14049 11672 9404

XS 80 4.85 30178 30178 28518 25651 25348 19616 16295 13125

160 6.35 40596 40596 38364 34505 34099 26389 21924 17659

XXS 9.70 64601 64601 61045 54906 54266 41988 34884 28097

40 STD 40 3.68 19444 19444 18375 16529 16329 12636 10550 8454

XS 80 5.08 27402 27402 25900 23295 23019 17811 14800 11919

160 7.14 39738 39738 37599 33816 33416 25858 21483 17308

XXS 10.16 58779 58799 55547 49966 49374 38205 31742 25569

50 STD 40 3.91 16378 16378 15468 13925 13759 10645 8847 7124

XS 80 5.54 23653 23653 22351 20105 19871 15378 12774 10287

160 8.74 38866 38866 36731 33037 32652 25266 20987 16908

XXS 11.07 50793 50793 48003 43173 42670 33017 27429 22096

65 STD 40 5.16 17914 17914 16929 15227 15048 11644 9674 7793

XS 80 7.01 24818 24818 23447 21097 20849 16129 13401 10797

160 9.53 34615 34615 32714 29420 29076 22503 18693 15055

XXS 14.02 53081 53081 50159 45116 44585 34498 28662 23088

80 STD 40 5.49 15558 15558 14969 13222 13063 10108 8399 6766

XS 80 7.62 21986 21968 20780 18693 18472 14290 11871 9563

160 11.13 33079 33079 31253 28111 27780 21497 17859 14386

XXS 15.24 46976 46976 44392 39928 39459 30536 25369 20436

100 STD 40 6.02 13187 13187 12464 11210 11079 8571 7124 5739

XS 80 8.56 19058 19058 18010 16198 16012 12388 12094 8289

120 11.13 25190 25190 23805 21407 21159 16371 13601 10995

160 13.49 31019 31019 29310 26368 26058 20160 16750 13208

XXS 17.12 40348 40348 38129 34298 33892 26230 21786 17549

125 STD 40 6.55 11561 11561 10921 9825 9708 7510 6243 5038

XS 80 9.53 17060 17060 16122 14503 14331 11093 9212 7421

120 12.70 23130 23130 21855 19657 19430 15034 12492 10059

160 15.88 29407 29407 27787 24997 24701 19113 15881 12795

XXS 19.05 35897 35897 33926 30516 30158 23337 19388 15620

150 STD 40 7.11 10550 10550 9928 8924 8819 6828 5370 4568

XS 80 10.97 16474 16474 15571 14007 13842 10707 8895 7165

120 14.27 21745 21745 20553 18448 18265 14138 11747 9460

XXS 160 18.26 28325 28325 26768 24074 23784 18410 15296 12319

200 20 6.35 7138 7138 6745 6063 5994 4637 3852 3100

30 7.04 7924 7924 7489 6732 6656 5147 4279 3445

STD 40 8.18 9246 9246 8737 7855 7765 6008 4995 4024

60 10.31 11741 11741 11093 9977 9860 7627 6339 5105

XS 80 12.70 14572 14572 13766 12388 12237 9474 7868 6338

100 15.09 17452 17452 16488 14834 14655 11341 9426 7593

120 18.26 21345 21345 20174 18148 17935 13876 11527 9288

140 20.62 24308 24308 22971 20656 20415 15799 13125 10569

XXS 22.23 26334 26334 24877 22386 22124 17115 14221 11458

160 23.01 27340 27340 25838 23240 22964 17769 14765 11892

250 20 6.35 5698 5698 5388 4844 4789 3707 3080 2480

30 7.8 7028 7028 6642 5974 5905 4568 3796 3059

STD 40 9.27 8385 8385 7923 7131 7048 5450 4527 3652

XS 60 12.7 11596 11596 10955 9853 9736 7538 6263 5043

80 15.09 13863 13863 13098 11781 11644 9012 7483 6028

100 18.26 16922 16922 15992 14386 14214 10996 9136 7359

120 21.44 20036 20036 18934 17032 16825 13022 10817 8716

XXS 140 25.4 23998 23998 16474 20394 20153 15599 12960 10438

160 28.58 27229 27229 25734 23143 22875 17700 14703 11844

300 20 6.35 4795 4795 4534 4072 4024 3114 2591 2088

30 8.38 6359 6359 6008 5402 5540 4134 3431 2763

STD 9.53 7241 7241 6842 6153 6084 4706 3914 3149

40 10.31 7854 7854 7421 6676 6601 5015 4244 3417

XS 12.70 9722 9722 9191 8268 8165 6318 5250 4230

60 14.27 10969 10969 10363 9322 9212 7131 5925 4768

80 17.48 13525 13525 12850 11492 11362 8792 7303 5884

100 21.44 16736 16736 15819 14227 14062 10879 9040 7283

XXS 120 25.4 20015 20015 18913 17011 16811 13008 10804 8702

140 28.58 22682 22682 21435 19278 19051 14744 12244 9866

160 33.32 26740 26740 25273 22730 22461 17383 14441 11630

350 10 6.35 4361 4361 4120 3707 3665 2831 2356 1895

20 7.92 5457 5457 5161 4644 4589 3548 2949 2377

STD 30 9.53 6580 6580 6222 5595 5533 4279 3555 2866

40 11.13 7717 7717 7310 6559 6477 5016 4168 3355

XS 12.70 8833 8833 8351 7510 7421 5739 4768 3845

60 15.09 10541 10541 9963 8964 8861 6855 5691 4589

80 19.05 13421 13421 12684 11410 11272 9723 7248 5836

100 23.83 16949 16949 16019 14407 14242 11017 9157 7372

120 27.79 19933 19933 18837 16943 16743 12960 10762 8675

140 31.75 22964 22964 21703 19519 19292 14931 12402 9990

160 35.71 26051 26051 24618 22144 21883 16936 14069 11334

400 10 6.35 3810 3810 3603 3238 3197 2474 2060 1660

20 7.92 4768 4768 4507 4051 4004 3100 2577 2074

STD 30 9.53 5746 5746 5429 4885 4830 3734 3100 2501

XS 40 12.70 7703 7703 7283 6545 6470 5009 4126 3349

60 16.66 10176 10176 9618 8654 8550 6614 5498 4430

80 21.44 13208 13208 12478 11224 11093 8585 7131 5746

100 26.19 16274 16274 15378 13835 13670 10576 8785 7076

120 30.96 19409 19409 18341 16481 16302 12616 10480 8440

140 36.53 23130 23130 21855 19657 19430 15034 12492 10059

160 40.49 25824 25824 24404 21952 21697 16784 13945 11238

450 10 6.35 3383 3383 3197 2873 2839 2198 1826 1474

20 7.92 4230 4230 3996 3597 3555 2749 2287 1839

STD 9.53 5099 5099 4816 4334 4286 3314 2756 2219

XS 30 11.13 5967 5967 5643 5071 5016 3879 3225 2598

12.70 6835 6835 6456 5808 5739 4437 3686 2969

40 14.27 7696 7696 7276 6545 6463 5002 4155 3349

60 19.05 10349 10349 9784 8799 8695 6725 5588 4499

80 23.83 13043 13043 12326 11086 10955 8475 7042 5670

100 29.36 16219 16219 15323 13787 13622 10542 8757 7055

120 34.93 19464 19464 18389 16543 16350 12650 10507 8468

140 39.67 22282 22282 21056 18941 18713 11483 12030 9694

160 45.24 25638 25638 24225 21793 21531 16660 13842 11155

500 10 6.35 3038 3038 2873 2574 2556 1977 1640 1323

STD 20 9.53 4582 4582 4327 3893 3852 2976 2474 1991

XS 30 12.70 6139 6139 5801 5216 5154 3989 3314 2666

40 15.09 7317 7317 6911 6215 6146 4754 3948 3183

60 20.62 10080 10080 9522 8564 8468 6552 5443 4382

80 26.19 12898 12898 12188 10962 10831 8385 6966 5608

100 32.54 16171 16171 15287 13746 13580 10514 8730 7035

120 38.10 19085 19085 18037 16226 16033 12409 10307 8302

140 44.45 22475 22475 21242 19106 18879 14614 12140 9777

160 50.01 25450 25450 24094 21675 21421 16577 13766 11093

600 10 6.35 2529 2529 2391 2150 2129 1647 1364 1102

STD 20 9.53 3810 3810 3603 3238 3197 2474 2060 1660

XS 12.70 5097 5097 4816 4334 4286 3314 2756 2219

30 14.27 5739 5739 5423 4878 4823 3734 3100 2494

40 17.48 7055 7055 6670 5994 5925 4589 3810 3066

60 24.61 10018 10018 9467 8516 8420 6511 5409 4361

80 30.96 12691 12691 12002 10783 10659 8254 6856 5519

100 38.89 16102 16102 15220 13690 10528 10466 8695 7007

120 46.02 19223 19223 18168 16336 16150 12491 10383 8364

140 52.37 22048 22048 20835 18741 18520 14331 11906 9591

160 59.54 25279 25279 23888 21489 21235 16433 13649 10996

1) Due to the possible conversion of carbon to graphite (graphitization) – carbon steel pipes should be avoided for temperatures above 425°C. Instead Alloy steel should be used.

1 Pa = 10-6 N/mm2 = 10-5 bar = 0.1020 kp/m2 = 1.02×10-4 m H2O = 9.869×10-6 atm = 1.45×10-4 psi (lbf/in2)

T(oF) = [T(oC)](9/5) + 32

API 5L Gr B ERW Pipes Price List

SIZE" ZNTH WLSP MSL JL ISR SURYA ASIAN TW

1/2 625 625 632 662 669 654 647

3/4 625 610 618 647 654 640 647

1 625 596 603 632 640 625 632

1.25 625 596 603 632 640 625 632

1.5 625 596 603 632 640 625 632

2 625 596 603 632 640 625 632

2.5 625 596 603 632 640 625 632

3 625 596 603 632 640 625 632

3.5 625 596 603 632 640 625 632

4 625 596 603 632 640 625 632

5 625 596 603 632 640 625 632

6 625 596 603 632 640 625 632

8 625 596 603 632 640 632

10 15 596 603 632 640 632

12 15 596 603 632 640 632

14 610 618 654 632

16 610 618 654 632

18 625 632 632

20 625 632 632

22 632 632

24 632 632

*Approx Price (USD/Ton). Please contact for final price list.

API 5L Grade B Pipe Weight Chart

NPS
(in) Outside Diameter
(in) API 5l Pipe Schedule

SCH 10 SCH 20 SCH 30 SCH STD SCH 40 SCH 60 SCH XS SCH 80 SCH 100 SCH 120 SCH 140 SCH 160 SCH XXS

Wall Thickness (in)

1/8 0.405 0.068 0.068 0.095 0.095

1/4 0.540 0.088 0.088 0.119 0.119

3/8 0.675 0.091 0.091 0.126 0.126

1/2 0.840 0.109 0.109 0.147 0.147 0.187 0.294

3/4 1.050 0.113 0.113 0.154 0.154 0.219 0.308

1 1.315 0.133 0.133 0.179 0.179 0.250 0.358

1 1/4 1.660 0.140 0.140 0.191 0.191 0.250 0.382

1 1/2 1.900 0.145 0.145 0.200 0.200 0.281 0.400

2 2.375 0.154 0.154 0.218 0.218 0.344 0.436

2 1/2 2.875 0.203 0.203 0.276 0.276 0.375 0.552

3 3.500 0.216 0.216 0.300 0.300 0.438 0.600

3 1/2 4.000 0.226 0.226 0.318 0.318

4 4.500 0.237 0.237 0.337 0.337 0.438 0.531 0.674

5 5.563 0.258 0.258 0.375 0.375 0.500 0.625 0.750

6 6.625 0.280 0.280 0.432 0.432 0.562 0.719 0.864

8 8.625 0.250 0.277 0.322 0.322 0.406 0.500 0.500 0.594 0.719 0.812 0.906 0.875

10 10.750 0.250 0.307 0.365 0.365 0.500 0.500 0.594 0.719 0.844 1.000 1.125 1.000

12 12.750 0.250 0.330 0.375 0.406 0.562 0.500 0.688 0.844 1.000 1.125 1.312 1.000

14 14.000 0.250 0.312 0.375 0.375 0.438 0.594 0.500 0.750 0.938 1.094 1.250 1.406

16 16.000 0.250 0.312 0.375 0.375 0.500 0.656 0.500 0.844 1.031 1.219 1.438 1.594

18 18.000 0.250 0.312 0.438 0.375 0.562 0.750 0.500 0.938 1.156 1.375 1.562 1.781

20 20.000 0.250 0.375 0.500 0.375 0.594 0.812 0.500 1.031 1.281 1.500 1.750 1.969

22 22.000 0.250 0.375 0.500 0.375 0.875 0.500 1.125 1.375 1.625 1.875 2.125

24 24.000 0.250 0.375 0.562 0.375 0.688 0.969 0.500 1.219 1.531 1.812 2.062 2.344

30 30.000 0.312 0.500 0.625 0.375 0.500

32 32.000 0.312 0.500 0.625 0.375 0.688

34 34.000 0.312 0.500 0.625 0.375 0.688

36 36.000 0.312 0.500 0.625 0.375 0.750

42 42.000 0.500 0.625 0.375 0.750

Cut to Length of Schedule 80 and Sch 40 API 5l Grade B Saw Pipe

API 5l gr.b galvanized Pipe and API 5l gr bm psl2 Sawl material in Stock of Jindal, MSL & ISMT make

Our domestic sub dealers please find below

Countries : Our international sales agent

Our Dealers and Distributors of API 5L Grade B Pipe in below cities :

Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo

Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia

Stainless Steel Seamless Tubes

Stainless Steel Seamless Pipes

Stainless Steel Seamless U Tubes

Stainless Steel Welded Pipes

Stainless Steel Welded Tubes

Stainless Steel Welded U Tubes

Stainless Steel Coil Tubing

Stainless Steel Heat Exchanger Tubes

Stainless Steel Instrumentation Tubes

Stainless Steel IBR Pipes & Tubes

Stainless Steel Condenser Tubes

Carbon Steel Pipes & Tubes
API 5L Pipe

     API 5L Grade B Pipe

     API 5L Seamless Pipe

     API 5L X42 Pipe

     API 5L X46 Pipe

     API 5L X52 Pipe

     API 5L X56 Pipe

     API 5L X60 Pipe

     API 5L X65 Pipe

     API 5L X70 Pipe

     API 5L X80

Alloy Steel Pipes & Tubes

SS Electropolished Pipes & Tubes

Stainless Steel Flanges

Stainless Steel Socket weld Fittings

Stainless Steel Butt Weld Fittings

Get In Touch

16/11, Kunj Vihar,2nd Floor,
      1st Carpenter Street,mumbai
      400004, Maharashtra, India

+91-9769298598

sparksteel@outlook.com

Footer Navigation

Home

About Us

Products

Contact Us

Products Category

Seamless Pipes & Tubes

Welded Pipes & Tubes

IBR Pipes & Tubes

Heat Exchanger Tubes

Instumentation Tubes

Available Material

Stainless Steel Flanges

Stainless Steel Socketweld Fittings

Stainless Steel Butt Weld Fittings

© 2017 Spark Steel (All rights Reserved) Website designed & SEO by Mesotek | Site Map |

Scroll

API 5L Grade B Seamless Pipe Supplier

Grade B PSL1 and PSL2 Material at best price, API 5L Grade B ERW Pipe Manufacturer in India

API 5L Grade B Carbon Steel Welded Pipe Weight, Dimensions & Sizes, Schedule chart

API 5L grade B line pipe

API 5L Grade B Seamless Pipe

API 5L Grade B ERW pipe

API 5L grade b erw pipe suppliers, API 5l grade b line pipe price list, gr b dsaw pipe Stockist in Mumbai, India

API 5L Grade B Pipe specification

API 5L Grade B Pipe Material

API 5l Gr B PSL 2 material Distributor in India

API 5L Grade B PSL2 meaning

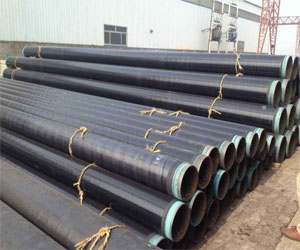

API 5L Grade B Pipe Coating

API 5L Grade B Pipe Chemical Composition

API 5L grade B carbon steel line pipe, API 5L Grade B Welded Pipes Chemical Composition

API 5L Grade B Line Pipes Tolerance Specifications

API 5L Grade b pipe pressure rating

Pressure (kPa) and temperature (°C) ratings of API 5L GR. B Carbon Steel Pipes - temperatures ranging -29 °C – 450 °C

Grade B API 5L Pipe allowable stress and Maximum Allowable Pressure (kPa)

API 5L Gr B ERW Pipes Price List

API 5L Grade B Pipe Weight Chart

Cut to Length of Schedule 80 and Sch 40 API 5l Grade B Saw Pipe

API 5l gr.b galvanized Pipe and API 5l gr bm psl2 Sawl material in Stock of Jindal, MSL & ISMT make

Get In Touch

Footer Navigation

Products Category

Available Material

Pipe End	Bevel, Screwed, Plain, Threaded
API Grade B Line Pipe Length	Single Random, Double Random & Required Length, Custom Size - 12 Meter lengths
Product Specification Level (PSL)	API 5L GrB PSL 1 API 5L GrB PSL 2
Technique	Hot rolling; cold drawing; NDT test; UT test; Hydrostatic Tester
Testing and Inspection Reports	NABL Approved Lab, EN 10204 3.1, Mill TC EN 10204 3.1, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, Destructive Test Report, Non Destructive Test Reports, Chemical and Mechanical Reports, India Boiler Regulations (IBR) Test Certificate
Packing	API 5L GR. B Pipe Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Standard	API 5L standard Grade B steel grade seamless steel pipe/tube (Specification for Line Pipe - ANSI/API specification 5L - 44th Edition, October 1, 2007)
API 5L GrB Pipes Type	Seamless / ERW / Welded / Fabricated / CDW
Sizes	Nominal Pipe Size 1/2" to 48 " O.D. Wall Thickness - Schedule 10 through 160, XS, XXS, STD.
Origin	Indian Origin, Japanese Origin, US Origin, Korean Origin, European Origin, Ukraine Origin, Russian Origin
Thickness	SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
Applications	Steel, Sugar, Boiler Equipments, Oil Refineries, Petrochemicals, Power Generation (Nuclear/Thermal), Pressure Vessels and General Engineering Purposes
Finishes	FBE Dual, 3LPE, 3LPP, Coal Tar, Bare, Oiled, Mill Varnish, Galv, FBE, Concrete Coating and Tape Wrap.End Finishes:Beveled, Square Cut, Threaded & Coupled.
Application & uses	Suitable for water, oil, Conveying gas, and other liquefied media.
Other manufacturers of API GrB Seamless steel pipe	MSL, ISMT, USL, JSL, BAO, Lontrin, SMTM, TNRS, V&M and Wuxi
HS Code	730410 Line pipe of a kind used for oil or gas pipelines: Of iron or nonalloy steel: 730420 Casing, tubing and drill pipe, of a kind used in drilling for oil or gas: Casing: 730459 Other Tubes, Pipes and Hollow Profiles, of Other Alloy Steel, 730490 Other Tubes, Pipes and Hollow Profiles, Seamless, of Iron or Steel 730431 Tubes, Pipes and Hollow Profiles, of Iron or Non-alloy Steel, Cold-drawn or cold-rolled (cold-reduced) 730439 Other Tubes, Pipes and Hollow Profiles, of Iron or Non-alloy Steel 730441 Tubes, Pipes and Hollow Profiles, of stainless steel , Cold-drawn or cold-rolled (cold reduced) 730449 Other Tubes, Pipes and Hollow Profiles, of Stainless Steel, Seamless 730451 Tubes, Pipes and Hollow Profiles, of Other Alloy Steel, Cold-drawn or cold-rolled (cold reduced)
BS EN 10208-2:2009	Steel pipes for pipelines for combustible fluids. Technical delivery conditions. Pipes of requirement class B. Suitable to use in maximum operating pressure over 16 bar.
Value added service	Draw & Expansion as per required Size & Length Fusion Bond Epoxy ARO 3LPE Tar Epoxy Heat Treatment Bending Galvanizing Annealed Sand Blasting Machining etc.

Grade L360 / X52	360 MPa (52.2 ksi) YS 460 MPa (66.7 ksi) UTS
Grade L245 / B	245 MPa (35.5 ksi) YS 415 MPa (60.2 ksi) UTS
Grade L290 / X42	290 MPa (42.1 ksi) YS 415 MPa (60.2 ksi) UTS
Grade L390 / X56	390 MPa (56.6 ksi) YS 490 MPa (71.1 ksi) UTS
Grade L415 / X60	415 MPa (60.2 ksi) YS 520 MPa (75.4 ksi) UTS
Grade L450 / X65	450 MPa (65.3 ksi) YS 535 MPa (77.6 ksi) UTS
Grade L175 / A25	175 MPa (25.4 ksi) YS 310 MPa (45.0 ksi) UTS
Grade L210 / A	210 MPa (30.5 ksi) YS 335 MPa (48.6 ksi) UTS
Grade L320 / X46	320 MPa (46.4 ksi) YS 435 MPa (63.1 ksi) UTS
Grade L485 / X70	485 MPa (70.3 ksi) YS 570 MPa (82.7 ksi) UTS
Grade L555 / X80
Grade X100 and X120

PSL1	Not Impact Tested
PSL2	For Grades ≤ L415 / X60 Impact Tested at 0°C (32°F) to Meet Minimum 27J (20 ft-lb) for ≤ 762mm OD (NPS 30), or Minimum 40J (30 ft-lb) for pipe > 762mm OD (NPS 30).
(Refer to API 5L for testing of Grades > L415 / X60) Weld Metal and HAZ to meet Minimum 27J (20 ft-lb) for pipe < 1422mm OD (NPS 56).

Food Grade Epoxy Coatings	Phenolic Epoxy Coating
Any Liquid Epoxy Coating	Glass Flake Coatings
Fusion Bonded Epoxy Coating (FBE Coating)	3LPE Coating
Elastomeric Polyurethane Coating	PTFE Coating
Halar Coatings	Internal & External Coating

	PSL1				PSL2
Grade	C (Max.)	Mn(Max.)	P(Max.)	S(Max.)	C (Max.)	Mn(Max.)	P(Max.)	S(Max.)
A	0.22	0.90	0.03	0.03	0.22	1.20	0.025	0.015
B	0.26	1.20	0.03	0.03	0.22	1.30	0.025	0.015
X42	0.26	1.30	0.03	0.03	0.22	1.40	0.025	0.015
X46	0.26	1.40	0.03	0.03	0.22	1.40	0.025	0.015
X52	0.26	1.40	0.03	0.03	0.22	1.40	0.025	0.015
X56	0.26	1.40	0.03	0.03	0.22	1.40	0.025	0.015
X60	0.26	1.40	0.03	0.03	0.22	1.45	0.025	0.015
X65	0.26	1.45	0.03	0.03	0.22	1.65	0.025	0.015
X70	0.26	1.65	0.03	0.03	0.22	1.85	0.025	0.015

Tolerance on dimension
OD Tolerance		WT Tolerance
OD Tolerance		A, B		X42 ~ X70
D<60.3mm	+0.41/-0.40mm	D<73mm	+20%/-12.5%	D<73mm	+15%/-12.5%
D>=60.3mm	+0.75/-0.40mm	D>=73mm	+15%/-12.5%	D>=73mm	+15%/-12.5%

Nominal Size (mm)	Schedule no.		Wall Thickness (mm)	Temperature (oC)
				-29 – 38	205	260	350	370	400	4301)	450
				Maximum Allowable Stress (MPa)
				137.8	137.8	130.2	117.1	115.7	89.6	74.4	59.9
15	STD	40	2.77	34416	34416	32528	29255	28910	22372	18589	14972
	XS	80	3.73	48092	48092	45466	40878	40396	31260	25969	20918
		160	4.78	62830	62830	59378	53404	52777	40837	33929	27333
	XXS		7.47	98245	98245	92836	83507	82522	63857	53053	42739
20	STD	40	2.87	28070	28070	26526	23860	23578	18245	15158	12209
	XS	80	3.91	39418	39418	37247	33506	33106	25617	21283	17142
		160	5.56	58152	58152	54955	49429	48843	37799	31398	25293
	XXS		7.82	83107	83107	78539	70643	69809	54024	44881	36152
25	STD	40	3.38	26251	26251	24804	22310	22048	17060	14173	11417
	XS	80	4.55	36283	36283	34285	30862	30474	23584	19595	15785
		160	6.35	52481	52481	49594	44606	44082	34112	28339	22827
	XXS		9.09	77030	77030	72793	65476	64704	50070	41595	33506
32	STD	40	3.56	21614	21614	20421	18369	18155	14049	11672	9404
	XS	80	4.85	30178	30178	28518	25651	25348	19616	16295	13125
		160	6.35	40596	40596	38364	34505	34099	26389	21924	17659
	XXS		9.70	64601	64601	61045	54906	54266	41988	34884	28097
40	STD	40	3.68	19444	19444	18375	16529	16329	12636	10550	8454
	XS	80	5.08	27402	27402	25900	23295	23019	17811	14800	11919
		160	7.14	39738	39738	37599	33816	33416	25858	21483	17308
	XXS		10.16	58779	58799	55547	49966	49374	38205	31742	25569
50	STD	40	3.91	16378	16378	15468	13925	13759	10645	8847	7124
	XS	80	5.54	23653	23653	22351	20105	19871	15378	12774	10287
		160	8.74	38866	38866	36731	33037	32652	25266	20987	16908
	XXS		11.07	50793	50793	48003	43173	42670	33017	27429	22096
65	STD	40	5.16	17914	17914	16929	15227	15048	11644	9674	7793
	XS	80	7.01	24818	24818	23447	21097	20849	16129	13401	10797
		160	9.53	34615	34615	32714	29420	29076	22503	18693	15055
	XXS		14.02	53081	53081	50159	45116	44585	34498	28662	23088
80	STD	40	5.49	15558	15558	14969	13222	13063	10108	8399	6766
	XS	80	7.62	21986	21968	20780	18693	18472	14290	11871	9563
		160	11.13	33079	33079	31253	28111	27780	21497	17859	14386
	XXS		15.24	46976	46976	44392	39928	39459	30536	25369	20436
100	STD	40	6.02	13187	13187	12464	11210	11079	8571	7124	5739
	XS	80	8.56	19058	19058	18010	16198	16012	12388	12094	8289
		120	11.13	25190	25190	23805	21407	21159	16371	13601	10995
		160	13.49	31019	31019	29310	26368	26058	20160	16750	13208
	XXS		17.12	40348	40348	38129	34298	33892	26230	21786	17549
125	STD	40	6.55	11561	11561	10921	9825	9708	7510	6243	5038
	XS	80	9.53	17060	17060	16122	14503	14331	11093	9212	7421
		120	12.70	23130	23130	21855	19657	19430	15034	12492	10059
		160	15.88	29407	29407	27787	24997	24701	19113	15881	12795
	XXS		19.05	35897	35897	33926	30516	30158	23337	19388	15620
150	STD	40	7.11	10550	10550	9928	8924	8819	6828	5370	4568
	XS	80	10.97	16474	16474	15571	14007	13842	10707	8895	7165
		120	14.27	21745	21745	20553	18448	18265	14138	11747	9460
	XXS	160	18.26	28325	28325	26768	24074	23784	18410	15296	12319
200		20	6.35	7138	7138	6745	6063	5994	4637	3852	3100
		30	7.04	7924	7924	7489	6732	6656	5147	4279	3445
	STD	40	8.18	9246	9246	8737	7855	7765	6008	4995	4024
		60	10.31	11741	11741	11093	9977	9860	7627	6339	5105
	XS	80	12.70	14572	14572	13766	12388	12237	9474	7868	6338
		100	15.09	17452	17452	16488	14834	14655	11341	9426	7593
		120	18.26	21345	21345	20174	18148	17935	13876	11527	9288
		140	20.62	24308	24308	22971	20656	20415	15799	13125	10569
	XXS		22.23	26334	26334	24877	22386	22124	17115	14221	11458
		160	23.01	27340	27340	25838	23240	22964	17769	14765	11892
250		20	6.35	5698	5698	5388	4844	4789	3707	3080	2480
		30	7.8	7028	7028	6642	5974	5905	4568	3796	3059
	STD	40	9.27	8385	8385	7923	7131	7048	5450	4527	3652
	XS	60	12.7	11596	11596	10955	9853	9736	7538	6263	5043
		80	15.09	13863	13863	13098	11781	11644	9012	7483	6028
		100	18.26	16922	16922	15992	14386	14214	10996	9136	7359
		120	21.44	20036	20036	18934	17032	16825	13022	10817	8716
	XXS	140	25.4	23998	23998	16474	20394	20153	15599	12960	10438
		160	28.58	27229	27229	25734	23143	22875	17700	14703	11844
300		20	6.35	4795	4795	4534	4072	4024	3114	2591	2088
		30	8.38	6359	6359	6008	5402	5540	4134	3431	2763
	STD		9.53	7241	7241	6842	6153	6084	4706	3914	3149
		40	10.31	7854	7854	7421	6676	6601	5015	4244	3417
	XS		12.70	9722	9722	9191	8268	8165	6318	5250	4230
		60	14.27	10969	10969	10363	9322	9212	7131	5925	4768
		80	17.48	13525	13525	12850	11492	11362	8792	7303	5884
		100	21.44	16736	16736	15819	14227	14062	10879	9040	7283
	XXS	120	25.4	20015	20015	18913	17011	16811	13008	10804	8702
		140	28.58	22682	22682	21435	19278	19051	14744	12244	9866
		160	33.32	26740	26740	25273	22730	22461	17383	14441	11630
350		10	6.35	4361	4361	4120	3707	3665	2831	2356	1895
		20	7.92	5457	5457	5161	4644	4589	3548	2949	2377
	STD	30	9.53	6580	6580	6222	5595	5533	4279	3555	2866
		40	11.13	7717	7717	7310	6559	6477	5016	4168	3355
	XS		12.70	8833	8833	8351	7510	7421	5739	4768	3845
		60	15.09	10541	10541	9963	8964	8861	6855	5691	4589
		80	19.05	13421	13421	12684	11410	11272	9723	7248	5836
		100	23.83	16949	16949	16019	14407	14242	11017	9157	7372
		120	27.79	19933	19933	18837	16943	16743	12960	10762	8675
		140	31.75	22964	22964	21703	19519	19292	14931	12402	9990
		160	35.71	26051	26051	24618	22144	21883	16936	14069	11334
400		10	6.35	3810	3810	3603	3238	3197	2474	2060	1660
		20	7.92	4768	4768	4507	4051	4004	3100	2577	2074
	STD	30	9.53	5746	5746	5429	4885	4830	3734	3100	2501
	XS	40	12.70	7703	7703	7283	6545	6470	5009	4126	3349
		60	16.66	10176	10176	9618	8654	8550	6614	5498	4430
		80	21.44	13208	13208	12478	11224	11093	8585	7131	5746
		100	26.19	16274	16274	15378	13835	13670	10576	8785	7076
		120	30.96	19409	19409	18341	16481	16302	12616	10480	8440
		140	36.53	23130	23130	21855	19657	19430	15034	12492	10059
		160	40.49	25824	25824	24404	21952	21697	16784	13945	11238
450		10	6.35	3383	3383	3197	2873	2839	2198	1826	1474
		20	7.92	4230	4230	3996	3597	3555	2749	2287	1839
	STD		9.53	5099	5099	4816	4334	4286	3314	2756	2219
	XS	30	11.13	5967	5967	5643	5071	5016	3879	3225	2598
			12.70	6835	6835	6456	5808	5739	4437	3686	2969
		40	14.27	7696	7696	7276	6545	6463	5002	4155	3349
		60	19.05	10349	10349	9784	8799	8695	6725	5588	4499
		80	23.83	13043	13043	12326	11086	10955	8475	7042	5670
		100	29.36	16219	16219	15323	13787	13622	10542	8757	7055
		120	34.93	19464	19464	18389	16543	16350	12650	10507	8468
		140	39.67	22282	22282	21056	18941	18713	11483	12030	9694
		160	45.24	25638	25638	24225	21793	21531	16660	13842	11155
500		10	6.35	3038	3038	2873	2574	2556	1977	1640	1323
	STD	20	9.53	4582	4582	4327	3893	3852	2976	2474	1991
	XS	30	12.70	6139	6139	5801	5216	5154	3989	3314	2666
		40	15.09	7317	7317	6911	6215	6146	4754	3948	3183
		60	20.62	10080	10080	9522	8564	8468	6552	5443	4382
		80	26.19	12898	12898	12188	10962	10831	8385	6966	5608
		100	32.54	16171	16171	15287	13746	13580	10514	8730	7035
		120	38.10	19085	19085	18037	16226	16033	12409	10307	8302
		140	44.45	22475	22475	21242	19106	18879	14614	12140	9777
		160	50.01	25450	25450	24094	21675	21421	16577	13766	11093
600		10	6.35	2529	2529	2391	2150	2129	1647	1364	1102
	STD	20	9.53	3810	3810	3603	3238	3197	2474	2060	1660
	XS		12.70	5097	5097	4816	4334	4286	3314	2756	2219
		30	14.27	5739	5739	5423	4878	4823	3734	3100	2494
		40	17.48	7055	7055	6670	5994	5925	4589	3810	3066
		60	24.61	10018	10018	9467	8516	8420	6511	5409	4361
		80	30.96	12691	12691	12002	10783	10659	8254	6856	5519
		100	38.89	16102	16102	15220	13690	10528	10466	8695	7007
		120	46.02	19223	19223	18168	16336	16150	12491	10383	8364
		140	52.37	22048	22048	20835	18741	18520	14331	11906	9591
		160	59.54	25279	25279	23888	21489	21235	16433	13649	10996

SIZE"	ZNTH	WLSP	MSL	JL ISR	SURYA	ASIAN	TW
1/2	625	625	632	662	669	654	647
3/4	625	610	618	647	654	640	647
1	625	596	603	632	640	625	632
1.25	625	596	603	632	640	625	632
1.5	625	596	603	632	640	625	632
2	625	596	603	632	640	625	632
2.5	625	596	603	632	640	625	632
3	625	596	603	632	640	625	632
3.5	625	596	603	632	640	625	632
4	625	596	603	632	640	625	632
5	625	596	603	632	640	625	632
6	625	596	603	632	640	625	632
8	625	596	603	632	640		632
10	15	596	603	632	640		632
12	15	596	603	632	640		632
14		610	618		654		632
16		610	618		654		632
18		625	632				632
20		625	632				632
22		632					632
24		632					632

NPS (in)	Outside Diameter (in)	API 5l Pipe Schedule
		SCH 10	SCH 20	SCH 30	SCH STD	SCH 40	SCH 60	SCH XS	SCH 80	SCH 100	SCH 120	SCH 140	SCH 160	SCH XXS
		Wall Thickness (in)
1/8	0.405				0.068	0.068		0.095	0.095
1/4	0.540				0.088	0.088		0.119	0.119
3/8	0.675				0.091	0.091		0.126	0.126
1/2	0.840				0.109	0.109		0.147	0.147				0.187	0.294
3/4	1.050				0.113	0.113		0.154	0.154				0.219	0.308
1	1.315				0.133	0.133		0.179	0.179				0.250	0.358
1 1/4	1.660				0.140	0.140		0.191	0.191				0.250	0.382
1 1/2	1.900				0.145	0.145		0.200	0.200				0.281	0.400
2	2.375				0.154	0.154		0.218	0.218				0.344	0.436
2 1/2	2.875				0.203	0.203		0.276	0.276				0.375	0.552
3	3.500				0.216	0.216		0.300	0.300				0.438	0.600
3 1/2	4.000				0.226	0.226		0.318	0.318
4	4.500				0.237	0.237		0.337	0.337		0.438		0.531	0.674
5	5.563				0.258	0.258		0.375	0.375		0.500		0.625	0.750
6	6.625				0.280	0.280		0.432	0.432		0.562		0.719	0.864
8	8.625		0.250	0.277	0.322	0.322	0.406	0.500	0.500	0.594	0.719	0.812	0.906	0.875
10	10.750		0.250	0.307	0.365	0.365	0.500	0.500	0.594	0.719	0.844	1.000	1.125	1.000
12	12.750		0.250	0.330	0.375	0.406	0.562	0.500	0.688	0.844	1.000	1.125	1.312	1.000
14	14.000	0.250	0.312	0.375	0.375	0.438	0.594	0.500	0.750	0.938	1.094	1.250	1.406
16	16.000	0.250	0.312	0.375	0.375	0.500	0.656	0.500	0.844	1.031	1.219	1.438	1.594
18	18.000	0.250	0.312	0.438	0.375	0.562	0.750	0.500	0.938	1.156	1.375	1.562	1.781
20	20.000	0.250	0.375	0.500	0.375	0.594	0.812	0.500	1.031	1.281	1.500	1.750	1.969
22	22.000	0.250	0.375	0.500	0.375		0.875	0.500	1.125	1.375	1.625	1.875	2.125
24	24.000	0.250	0.375	0.562	0.375	0.688	0.969	0.500	1.219	1.531	1.812	2.062	2.344
30	30.000	0.312	0.500	0.625	0.375			0.500
32	32.000	0.312	0.500	0.625	0.375	0.688
34	34.000	0.312	0.500	0.625	0.375	0.688
36	36.000	0.312	0.500	0.625	0.375	0.750
42	42.000		0.500	0.625	0.375	0.750
